CMS32L051 User Manual |Chapter 5 Universal Timer Unit (Timer4)

www.mcu.com.cn 192 / 703

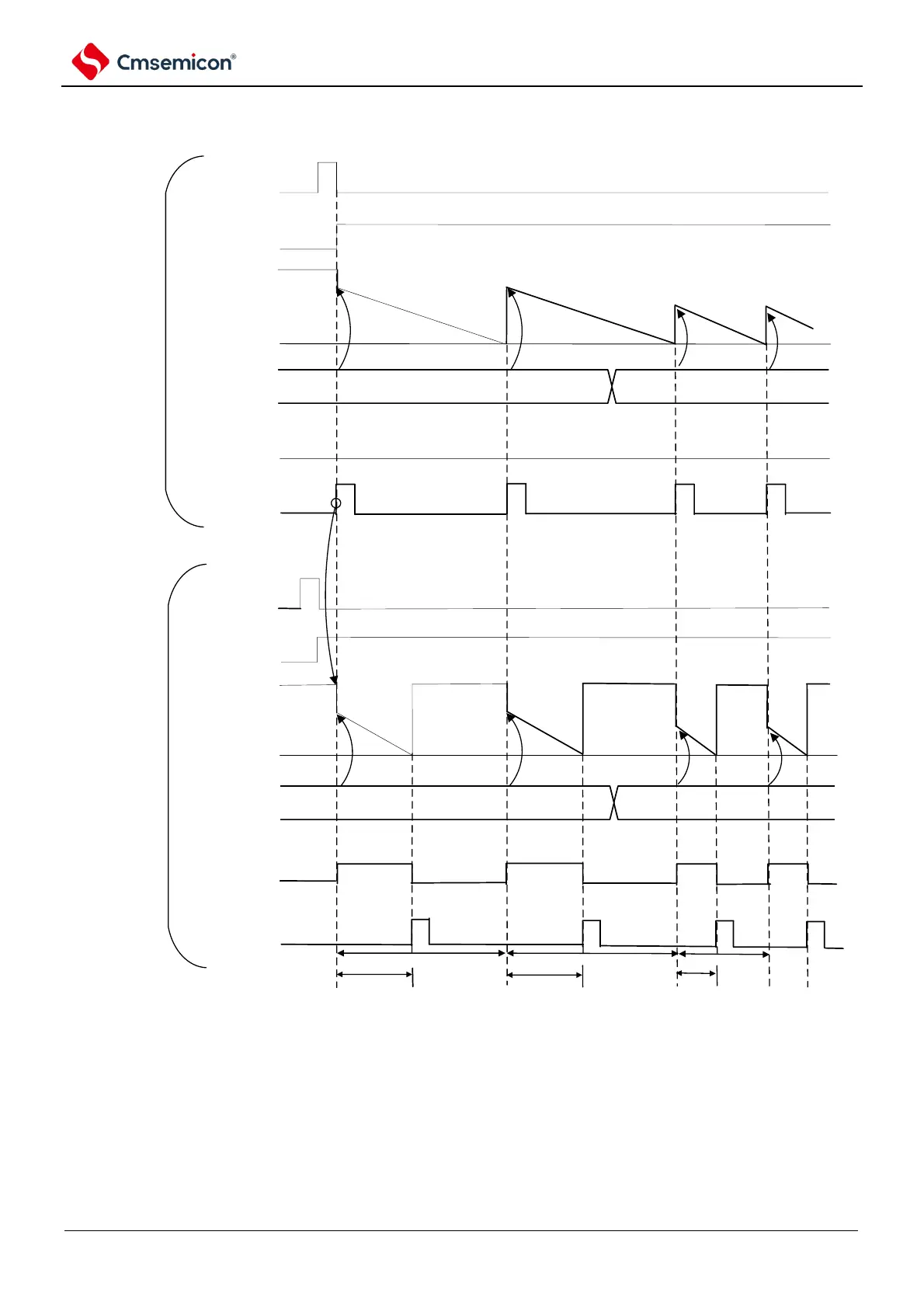

Figure 5-68 Example of basic timing for operation as a PWM function

TSmn

TEmn

TCRmn

FFFFH

0000H

TDRmn

TOmn

INTTMmn

TSmp

TEmp

TCRmp

FFFFH

0000H

TDRmp

INTTMmp

TOmp

a+1

b+1

master

control

channel

slave

channel

Note 1. m: Unit number (m= 0,1) n: master channel number (n=0, 2) p: slave channel number (n=0 : p=1, 2, 3, n=2: p=3)

2. TSmn, TSmp: Bit n, p of timer channel start register m (TSm)

TEmn, TEmp: Bit n, p of timer channel enable status register m (TEm)

TCRmn, TCRmp: Timer count register mn, mp (TCRmn, TCRmp)

TDRmn, TDRmp: Timer data register mn, mp (TDRmn, TDRmp)

TOmn, TOmp: TOmn and TOmp pin output signals
