CMS32L051 User Manual |Chapter 12 Universal Serial Communication Unit

www.mcu.com.cn 334 / 703

(3) Process flow (single-transmit mode).

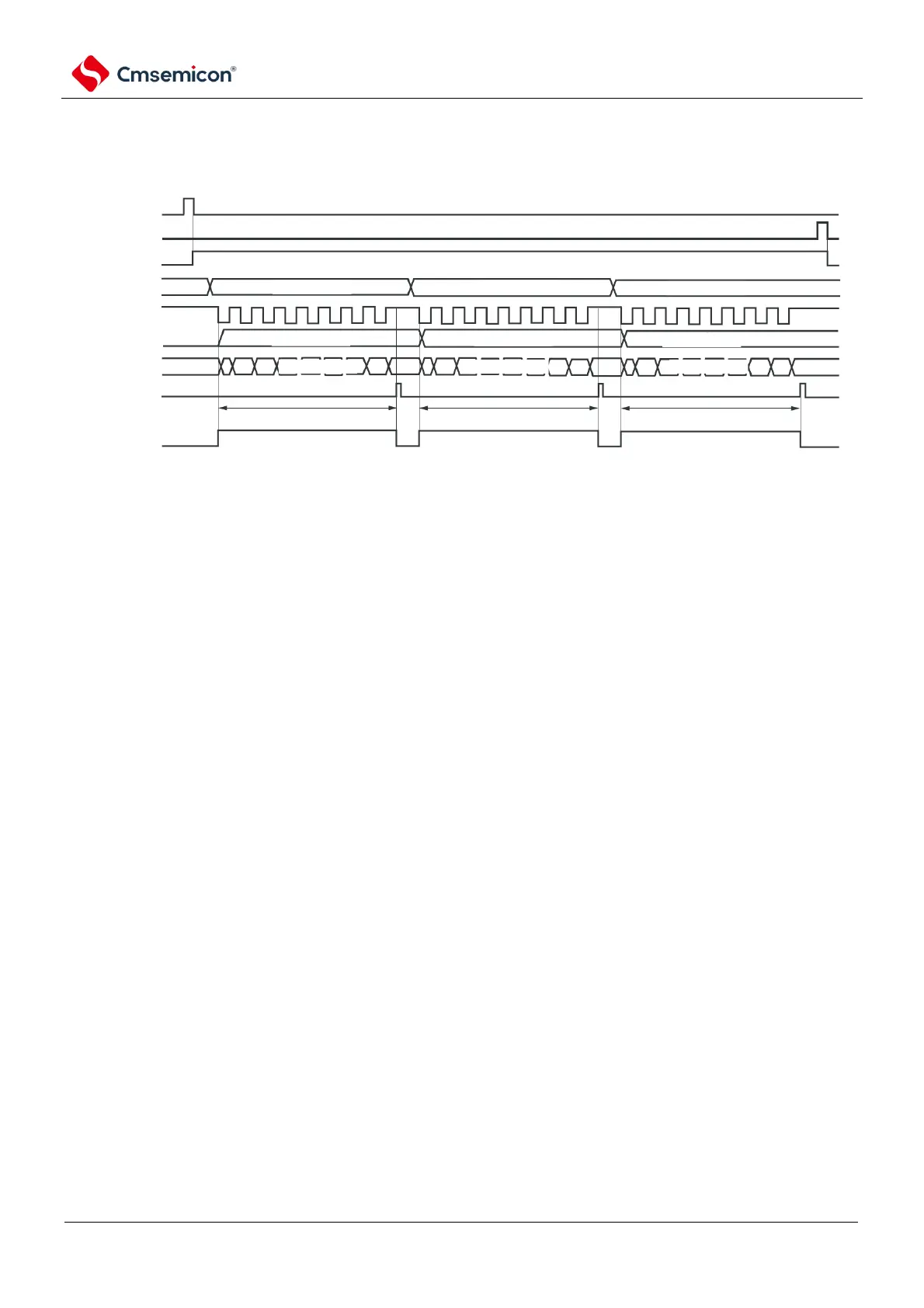

Figure 12-27 Timing diagram of the main transmission (single-pass transmission mode) (type 1: DAPmn=0,

CKPmn=0).

SCLKp pin

SDOp pin

INTSSPIp

shift register mn

TSFmn

SDRmn

SEmn

STmn

SSmn

transmit data1

transmit data2

transmit data3

shift operation shift operation shift operation

transmit data transmit data transmit data

Remark m: Unit number (m=0, 1) n: Channel number (n=0~3)p: SSPI number (p=00, 01, 10, 11, 20, 21.) )

mn=00~03, 10~11
