7: St. Graphic 7EQ (Stereo Graphic 7-Band EQ)

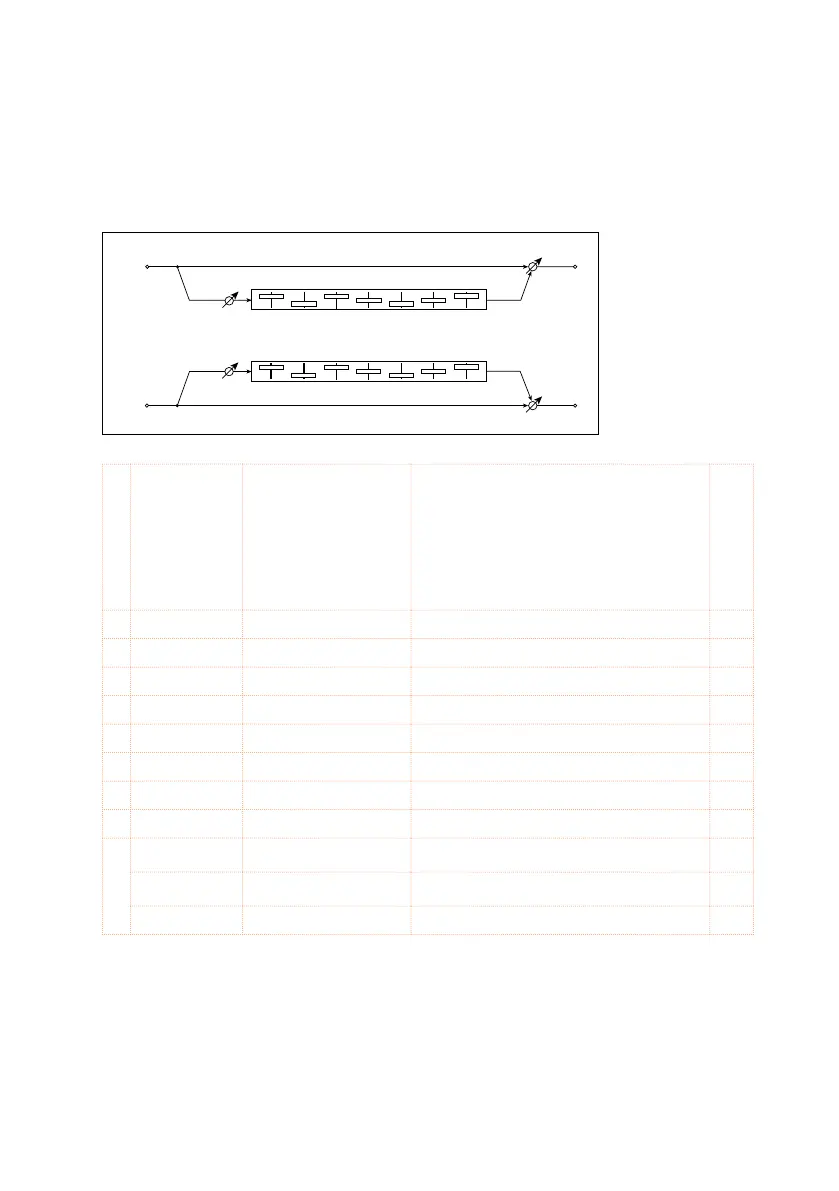

This is a stereo 7-band graphic equalizer. The bar graph of the gain setting
for each band gives you a clear, visual idea of frequency responses. You can
select a center frequency setting for each band from twelve types, accord-
ing to the sound.
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
a Type
1:Wide 1, 2:Wide 2,
3:Wide 3, 4:Half Wide
1, 5:Half Wide 2, 6:Half
Wide 3, 7:Low,
8:Wide Low, 9:Mid,
10:Wide Mid, 11:High,
12:Wide High
Selects a combination of center fre-
quencies for each band
b Trim 0…10 0 Sets the input level
c Band1 [dB] –18.0…+18.0 Sets the gain of Band 1
d Band2 [dB] –18.0…+18.0 Sets the gain of Band 2
e Band3 [dB] –18.0…+18.0 Sets the gain of Band 3
f Band4 [dB] –18.0…+18.0 Sets the gain of Band 4
g Band5 [dB] –18.0…+18.0 Sets the gain of Band 5
h Band6 [dB] –18.0…+18.0 Sets the gain of Band 6
i Band7 [dB] –18.0…+18.0 Sets the gain of Band 7
j Wet/Dry Dry, 1:99…99:1, Wet Balance between the wet and dry signal
Src Off…Tempo See DMS (Dynamic Modulation Source)
Amt –100…+100 Amount of modulation source
a: Type
This parameter selects a combination of center frequencies for each band.
The center frequency of each band is shown in the right of the screen.
