572| Effects for the MIDI Sounds
k [P]Output Mode Normal,
Wet Invert
Selects the phaser output mode
Routing
OD/HG › Phaser,
Phaser › OD/HG
Switches the order of the over-
drive and phaser
l Wet/Dry Dry, 1:99…99:1,
Wet
Balance between the wet and
dry signal
Src Of f…Tempo See DMS (Dynamic Modulation
Source)
Amt –100…+100 Amount of modulation source

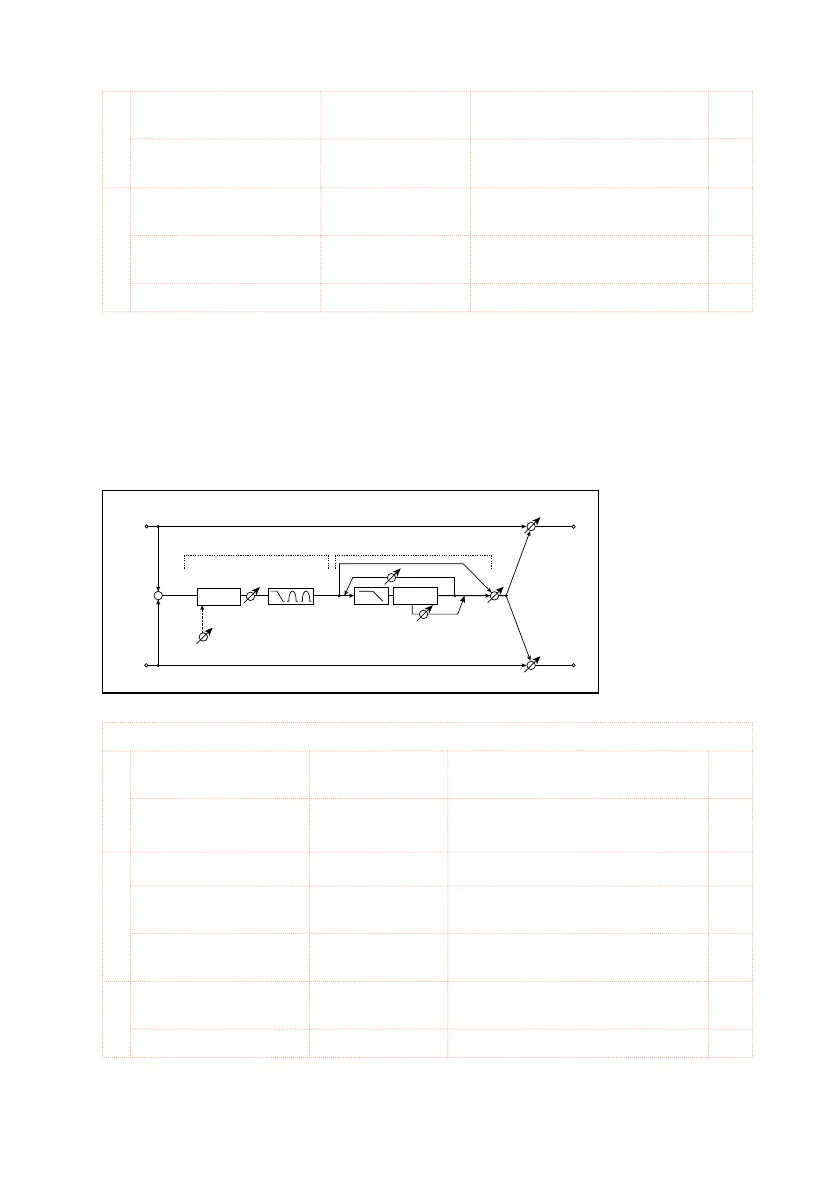

102: OD/HG - Mt.Delay (Overdrive/Hi.Gain - Multitap Delay)
This effect combines a mono overdrive/high-gain distortion and a multitap
delay.
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly FX Amt
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
OD/HI-GAIN
a [O]Drive Mode Overdrive, Hi-
Gain
Switches between overdrive and
high-gain distortion
Drive 1…10 0 Sets the degree of distortion
b [O]Output Level 0…50 Sets the overdrive output level
Src Of f…Tempo Selects the modulation source for
the overdrive output level
Amt –50…+50 Sets the modulation amount of the
overdrive output level
e [O]Low Cutoff [Hz] 2 0…1. 0 0 k Sets the center frequency for Low
EQ (shelving type)
Gain [dB] –18…+18 Sets the gain of Low EQ
