502| Effects for the MIDI Sounds
55: Rotary Speaker

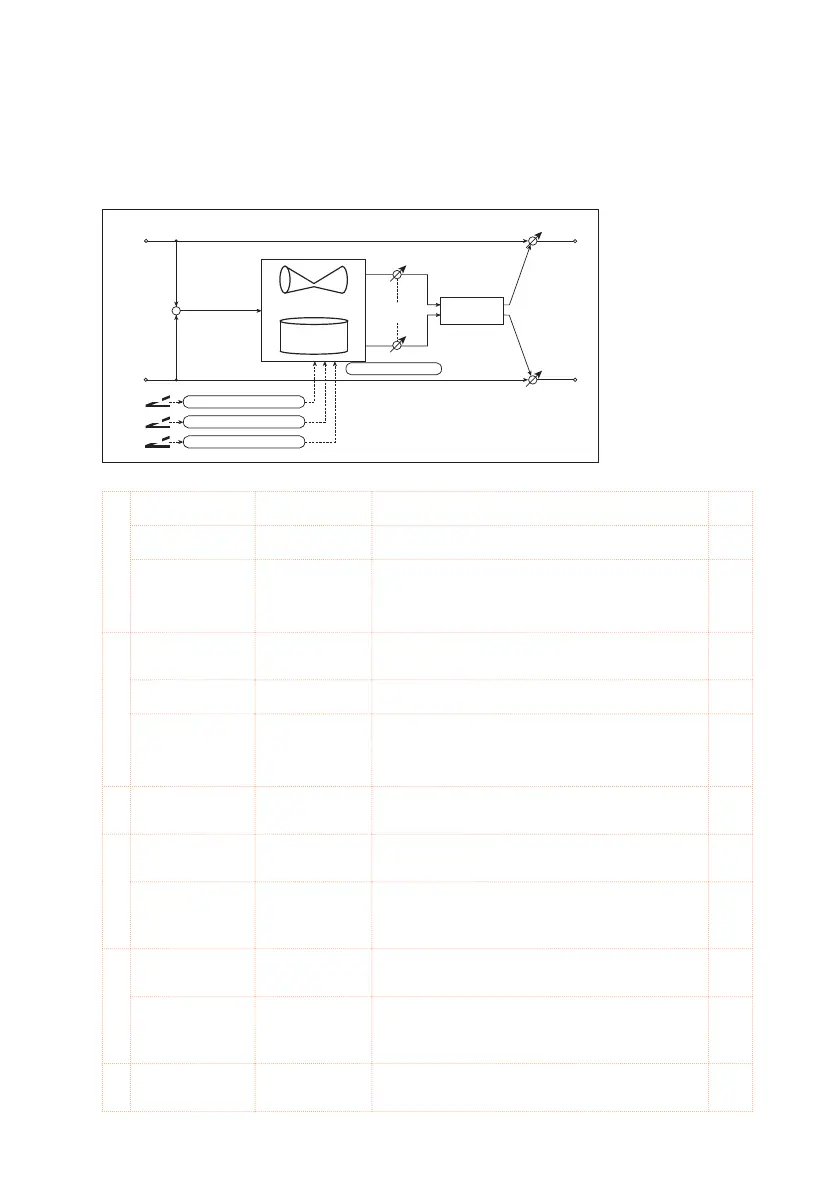

This effect simulates a rotary speaker, and obtains a more realistic sound by
simulating the rotor in the low range and the horn in the high range sepa-
rately. The effect also simulates the stereo microphone settings.
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
D
-mod
D
-mod
D
-mod
Mode Switch: Rotate/Stop
Speed Switch: Slow/Fast
Manual Speed Control
Speaker Simulation
Mic Distance
Mic Spread
Horn/Rotor
Balance
Horn
Rotary Speaker
Rotor
+
a Mode Switch Rotate, Stop Switches between speaker rotation and stop
Src Off…Tempo Selects a modulation source for Rotate/Stop
Mode Toggle,
Moment
Sets the switch mode for Rotate/Stop modu-
lation
b Speed Switch Slow, Fast Switches the speaker rotation speed between
slow and fast
Src Off…Tempo Selects a modulation source for Slow/Fast
Mode Toggle,
Moment
Sets the switch mode for Slow/Fast modula-
tion
c Manual Speed
Ctrl
Of f…Tempo Sets a modulation source for direct control of
rotation speed
d Hore
Acceleration
0…10 0 How quickly the horn rotation speed in the
high range is switched
Hore Ratio Stop,
0.50…2.00
Adjusts the (high-range side) horn rotation
speed. Standard value is 1.00. Selecting
“Stop” will stop the rotation
e Rotor
Acceleration
0…10 0 Determines how quickly the rotor rotation
speed in the low range is switched
Rotor Ratio Stop,
0.50…2.00
Adjusts the (low-frequency) rotor speed.
Standard value is 1.00. Selecting “Stop” will
stop the rotation
f Horn/Rotor
Balance
Rotor, 1…99,
Horn
Sets the level balance between the high-fre-
quency horn and low-frequency rotor
