614| Limiter, Master EQ
Master EQ
A fully parametric Master EQ is placed at the end of the audio path, just
before the various audio outputs (Audio Outs, Phones, integrated speakers).
Both Sounds (Keyboard, Styles and MIDI Songs) and MP3 Songs are equal-
ized.
This is a full spectrum frequency equalization, that gives you the power to
design EQ curves and shape your sound. Master EQ features four fully pro-
grammable bands with fully adjustable gain, frequency, and Q parameters.

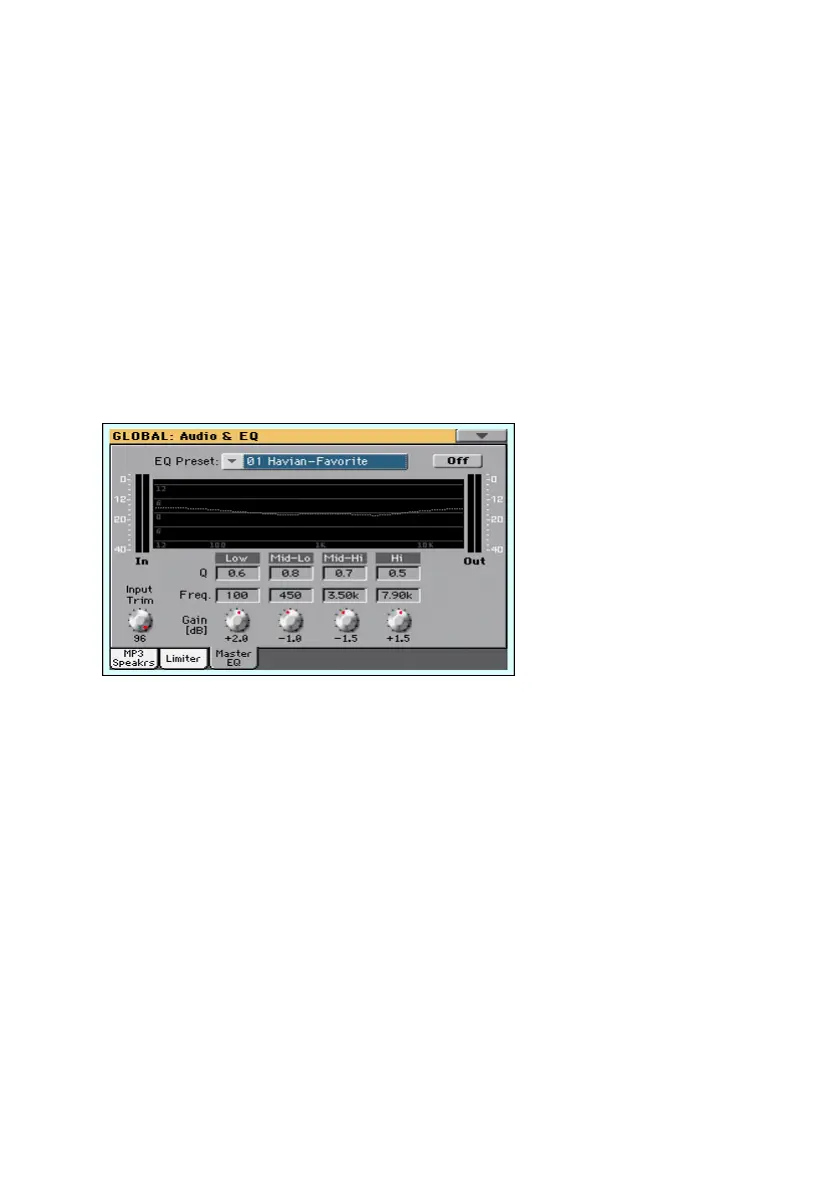

Accessing the Master EQ
▪ Go to the Global > Audio & Video > Master EQ page.
Choosing an EQ Preset
▪ Use the EQ Preset pop-up menu to choose one of the available EQ Presets,
and automatically reconfigure the parameters.
Turning the Limiter on or off
▪ Use the On/Off switch to turn the Master EQ on or off.
Programming the Master EQ
You can edit the Master EQ parameters, to adapt to your own style of play-
ing.
▪ Use the Input Trim knob (0…100) to adjust the level of the signal entering
the EQ. Excessive amount of signal may cause distortion when boosting the
EQ bands.
▪ Edit the EQ bands.
