Mono-Mono Serial (Mono-Mono) |569

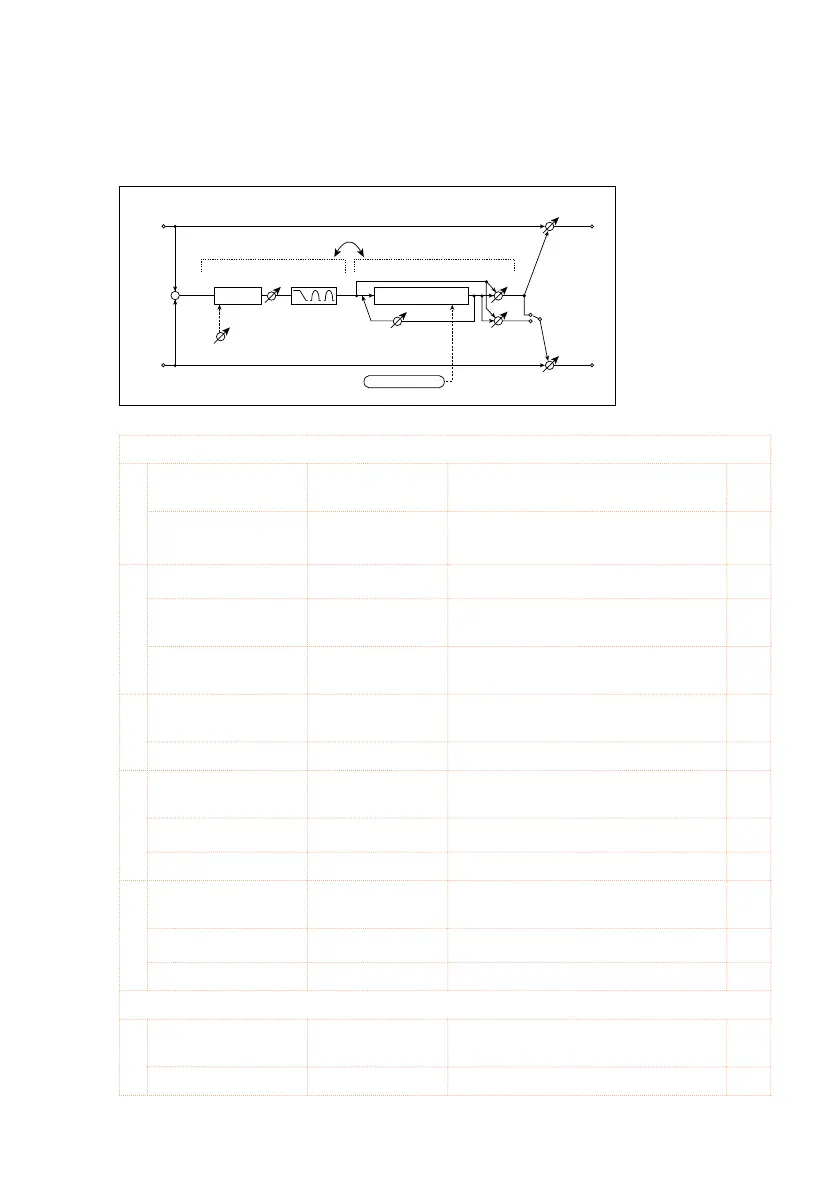

100: OD/HG - Cho/Flng (Overdrive/Hi.Gain - Chorus/Flanger)
This effect combines a mono overdrive/high-gain distortion and a chorus/
flanger. You can change the order of the effects.
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng FX Amt
Normal
Wet Invert
Output Mode
–
+
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
OD/HI-GAIN
a [O]Drive Mode Overdrive, Hi-
Gain
Switches between overdrive and
high-gain distortion
Drive 1…10 0 Sets the degree of distortion
b [O]Output Level 0…50 Sets the overdrive output level
Src Off…Tempo Selects the modulation source for the
overdrive output level
Amt –50…+50 Sets the modulation amount of the
overdrive output level
e [O]Low Cutoff [Hz] 2 0…1. 0 0 k Sets the center frequency for Low EQ
(shelving type)
Gain [dB] –18…+18 Sets the gain of Low EQ
f [O]Mid1 Cutoff [Hz] 300…10.00k Sets the center frequency for Mid/
High EQ 1 (peaking type)
Q 0.5…10.0 Sets the band width of Mid/High EQ 1
Gain [dB] –18…+18 Sets the gain of Mid/High EQ 1
g [O]Mid2 Cutoff [Hz] 500…20.00k Sets the center frequency for Mid/
High EQ 2 (peaking type)
Q 0.5…10.0 Sets the band width of Mid/High EQ 2
Gain [dB] –18…+18 Sets the gain of Mid/High EQ 2
CHORUS/FLANGER
h [F]LFO Frequency
[Hz]
0.02…20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
