EQ and Filters (EQ/Filter) |427

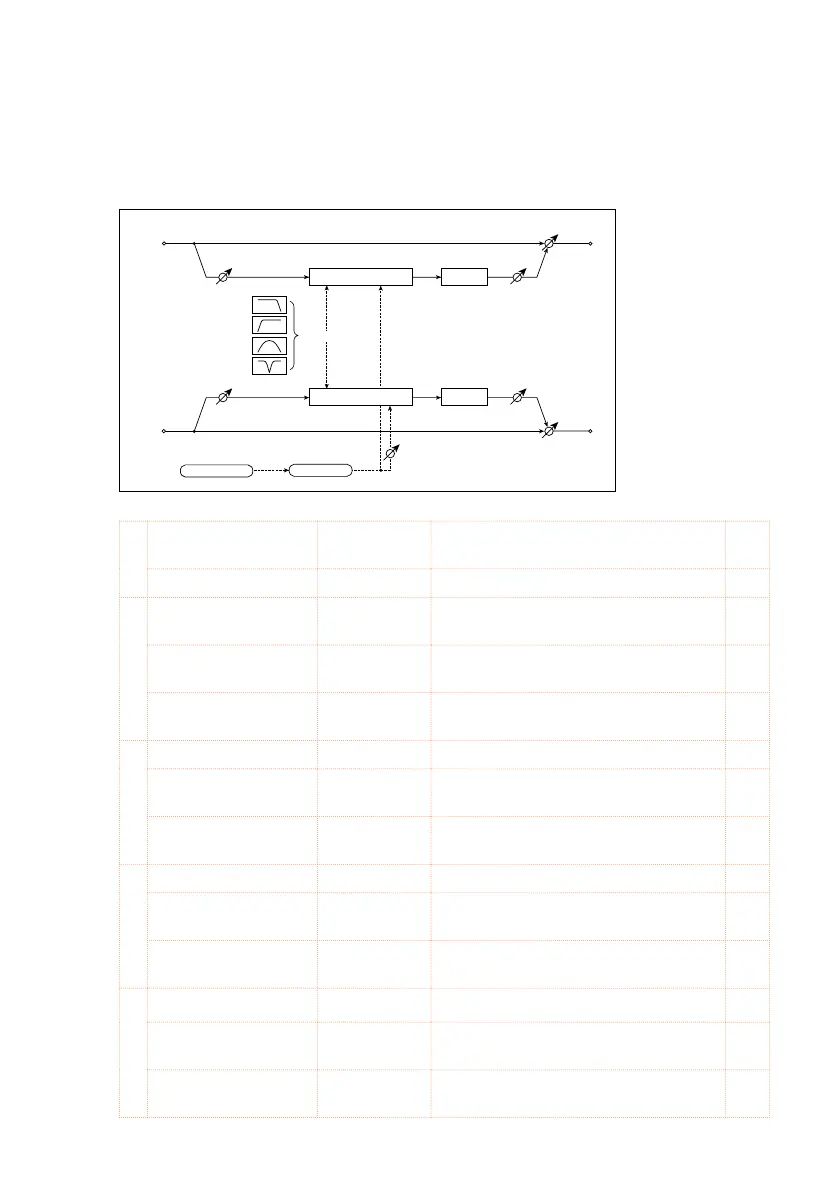

13: St. MultiModeFilter (Stereo Multi Mode Filter)
This is a multi-mode filter with four types; low pass, high pass, band pass,
and band reject. You can use LFO or dynamic modulation to vary the cutoff
frequency or resonance.
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
Multimode Filter Driver
Driver
Trim Output
OutputTrim
LFO Phase
LFO: Tri / Sine
LFO Shape
LPF
HPF
BPF
BRF
Filter Type
Multimode Filter
a Type LPF, HPF,
BPF, BRF
Selects the type of lter
Trim 0 …10 0 Sets the input level
b Cutoff 0 …10 0 Sets the cutoff frequency (center fre-
quency)
Src Of f…Tempo Selects the modulation source of the
cutoff
Amt –100…+100 Sets the modulation amount of the cut-
off
c Resonance 0…10 0 Sets the resonance amount
Src Of f…Tempo Selects the source that will modulate
the amount of resonance
Amt –100…+100 Sets the amount by which the reso-
nance will be modulated
d LFO Waveform Triangle, Sine Selects the LFO Waveform
Phase [degree] –180…+180 Sets the LFO phase difference between
the left and right
Depth 0…10 0 Sets the depth to which the LFO will
modulate the cutoff frequency
e LFO Frequency [Hz] 0.02…20.00 Sets the speed of the LFO
Src Of f…Tempo Selects a modulation source for LFO
speed
Amt –20.00…
+20.00
Sets the modulation amount of LFO
speed
