9.5.6 Amplified or Passive OADM Node Fiber-Optic Cabling

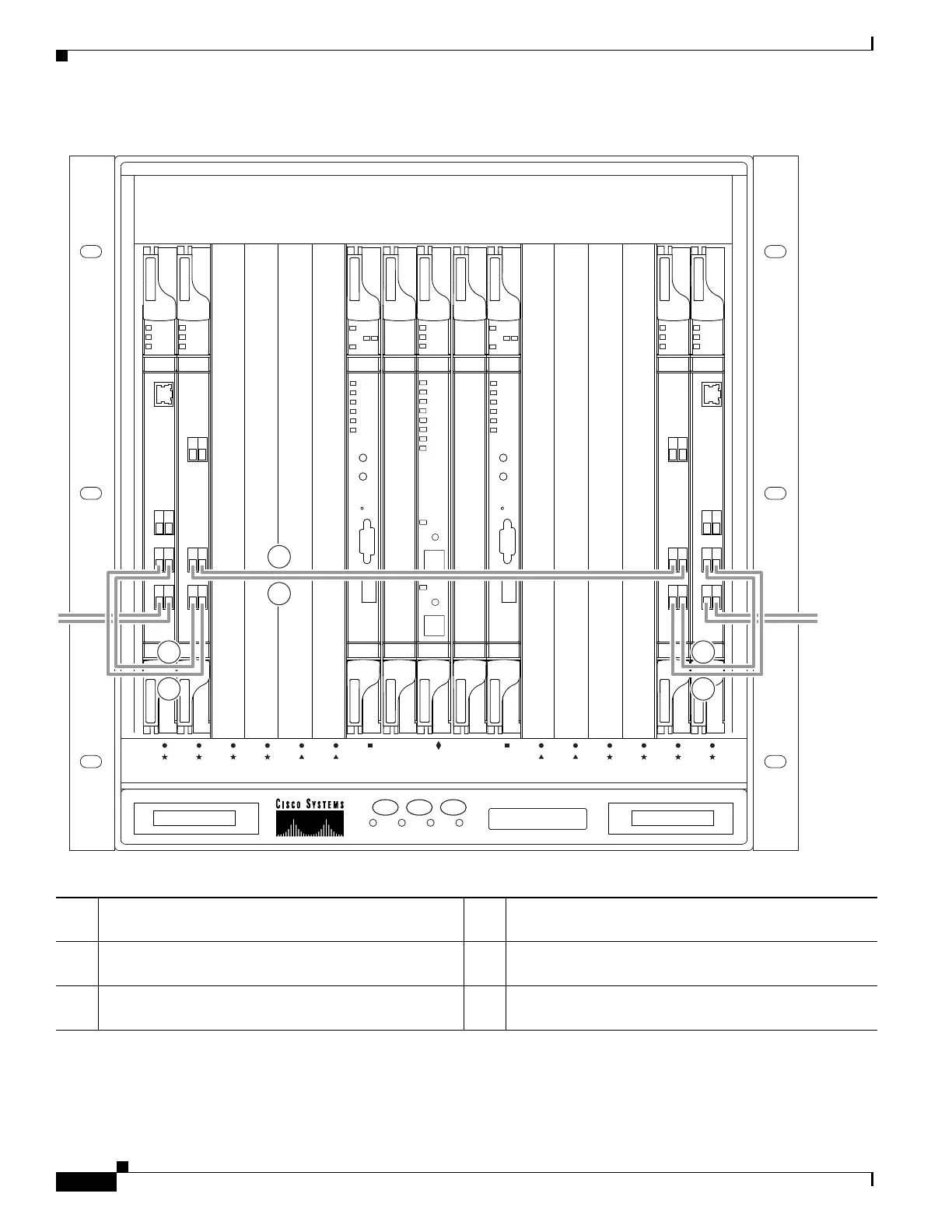

Figure 9-38 Fibering a Passive OADM Node
1 Side A OSC-CSM COM TX to Side A AD-1C-xx.x
COM RX
4 Side A OSC-CSM EXP RX to Side B AD-1C-xx.x
EXP TX
2 Side A OSC-CSM COM RX to Side A AD-1C-xx.x
COM TX
5 Side B AD-1C-xx.x COM TX to Side B OSC-CSM
COM RX
3 Side A OSC-CSM EXP TX to Side B AD-1C-xx.x
EXP RX
6 Side B AD-1C-xx.x COM RX to Side B OSC-CSM
COM TX
115425
FAIL
ACT
SF
INPUT 1
INPUT 2
INPUT 3
INPUT 4
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
RING
CALL
LOCAL OW
RING
CALL
EXPRESS OW
CONTACT
STATUS
AIC
OSC
CSM
FAI L
ACT
SF
UC
RX
MON
TX
RX
COM
TX
RX
LINE
TX
OSC
CSM
FAI L
ACT
SF
UC
RX
MON
TX
RX
COM
TX
RX
LINE
TX
TCC2
FAIL
SF
PWR
AB
CRIT
MAJ
MIN
REM
SYNC
ACO
ACO
LAMP TEST
RS-232
TCP/IP
LINK
ACT
TCC2
FAIL
SF
PWR
AB
CRIT
MAJ
MIN
REM
SYNC
ACO
ACO
LAMP TEST
RS-232
TCP/IP
LINK
ACT
AD-1C
-XX.X
FAI L
ACT
SF
RX
15xx.xx
TX
RX
EXP
TX
RX
COM
TX
AD-1C
-XX.X
FAI L
ACT
SF
RX
15xx.xx
TX
RX
EXP
TX
RX
COM
TX
1
2
3
4
5
6
1 2 3 4 5 6 7 8 9 101112131415 16 17
P P
++
