CMS32L051 User Manual |Chapter 5 Universal Timer Unit (Timer4)

www.mcu.com.cn 157 / 703

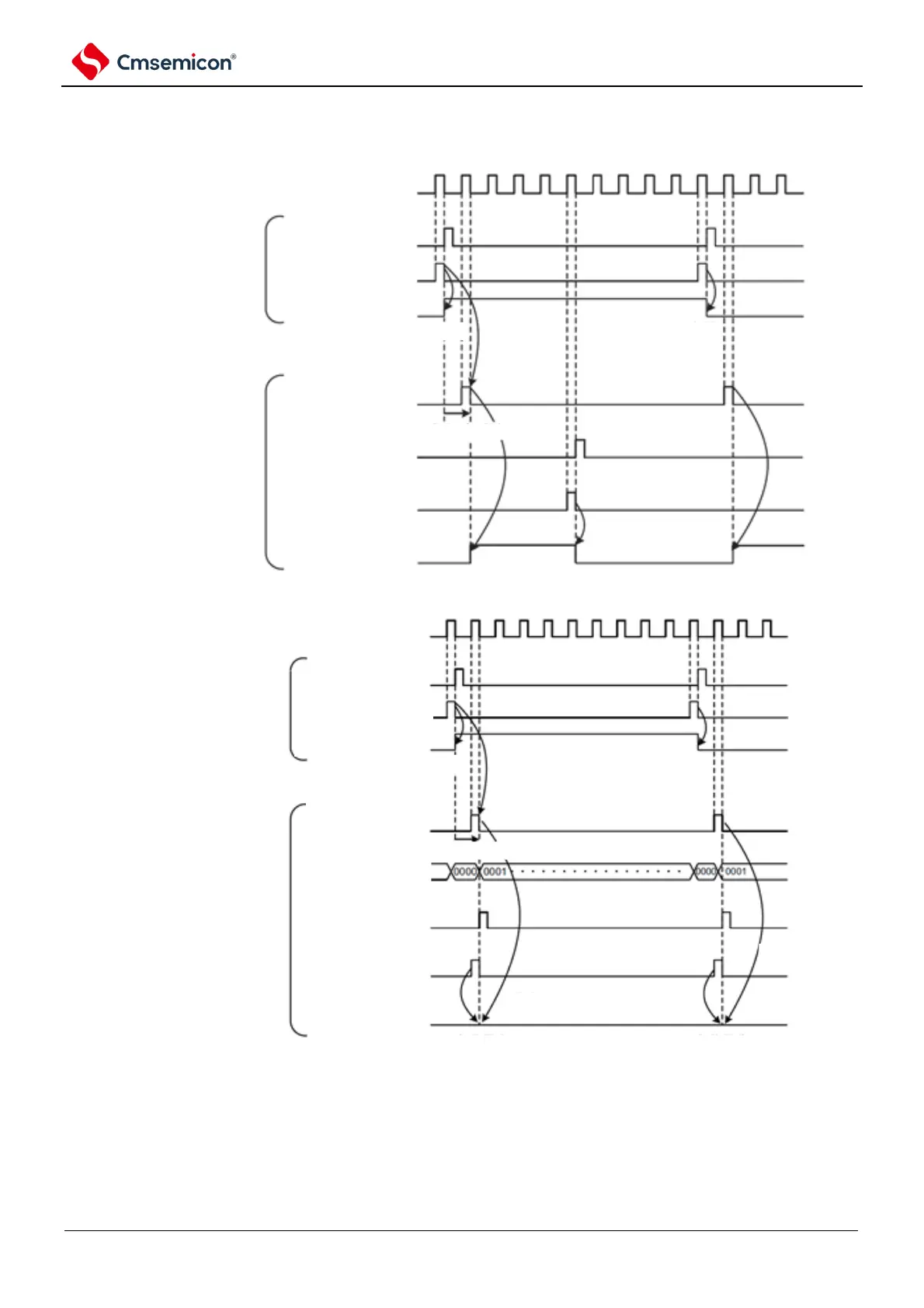

Figure 5-36 Reset/set timing operation status

(1)

Basic operation timing

master channel

slave channel

internal reset signal

TOmn Pin/TOmn

swap

internal reset signal

delay 1 clock cycle

internal reset signal

TOmp Pin/TOmp

reset

swap

INTTMmp

INTTMmn

TCLK

(2) 0% duty cycle operation timing

master control channel

slave channel

internal reset signal

TOmn Pin/TOmn

swap swap

delay 1 clock cycle

internal reset signal

TOmp Pin/TOmp

reset

proritized reset proritized reset

INTTMmp

INTTMmn

TCLK

TCRmp

Note 1 Internal reset signal: A reset/alternating signal on the TOmn pin

Internal set signal: The set signal of the TOmn pin

2.m: Unit number (m=0,1) n: channel number n=0~3(Master channel: n=0, 2)

p: The slave channel number

n=0：p=1, 2, 3

n=2：p=3
