(1) Register setting

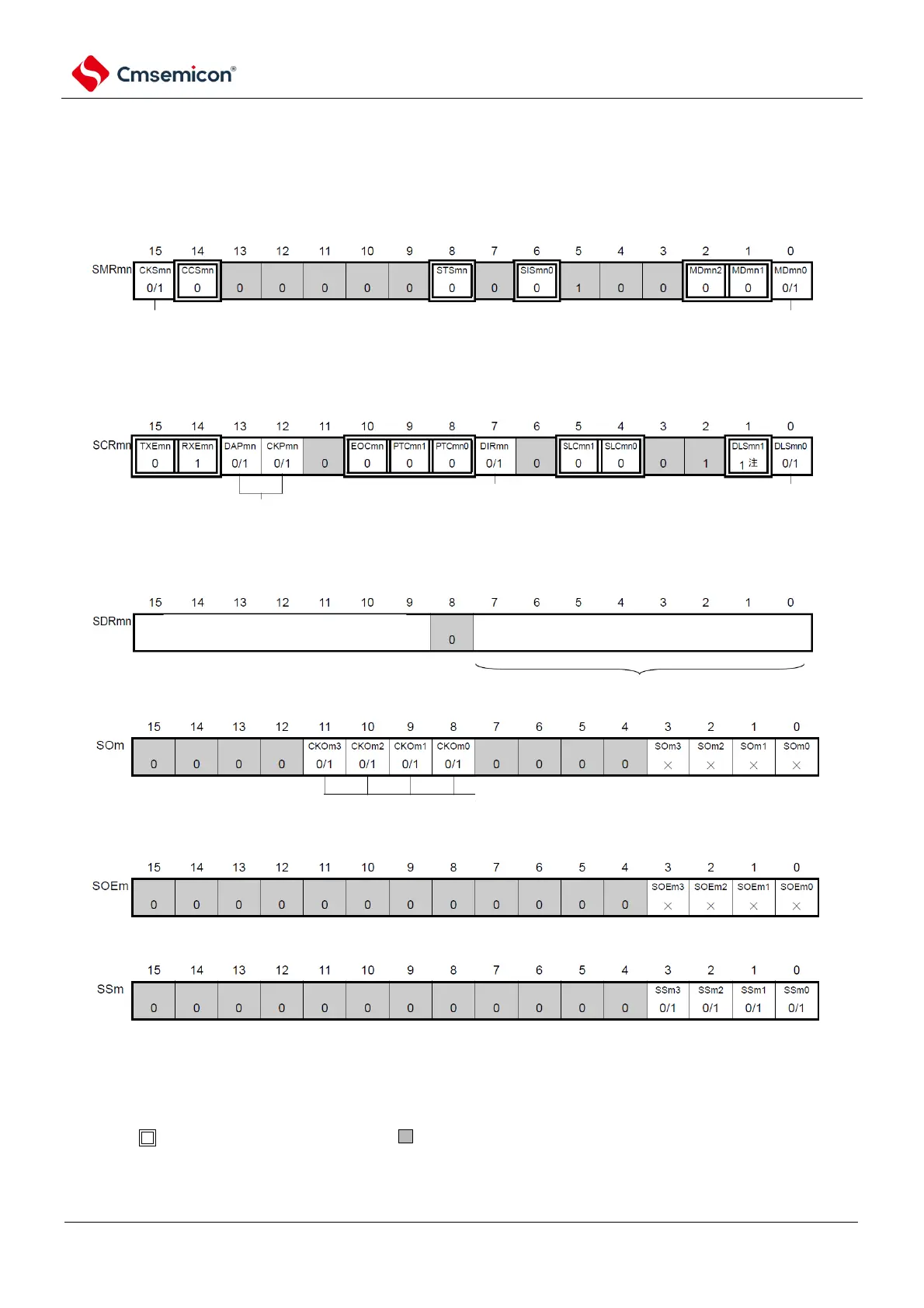

Figure 12-31 3 wire serial I/O (SSPI00, SSPI01, SSPI10, SSPI11, SSPI20, SSPI21)
Example of register setting content when the master receives
(a) serial mode register mn(SMRmn)
(b) serial communication operation configuration registermn mn(SCRmn)
(c) serial data register mn(SDRmn) (low 8 bit: SIOp)
(d) serial output registerm (SOm)Only configure bit of target channel
(e) serial output register m(SOEm) ...Not used in this mode
(f) serial channel start register m (SSm) Only set bit of target channel to 1.
channel n operational clock （fMCK）
0: SPSm register configured pre-scaler output clock CKm0
1: SPSm register configured pre-scaler output clock CKm1
interrupt source of channel n
0: Transmit completion interrupt
1: Buffer empty interrupt
data transmit sequence selection
0: perform MSB first input/output
1: perform LSB first input/output
data length configuration
0: 7 bit data length
1: 8 bit data length
data and clock phase selection (details refer to
"19.3 control universal serial communication
unit registers)
when clock phase is "positive phase" (CKPmn of SCRmn register as 0), "1" means
starting communication; when clock phase is "inverted phase" (CKPmn=1), "0"
means starting communication.
SIOp
baud rate configuration
(operation clock (fmck) scaling configuration )
received data
write virtual data FFH
Note Limited to SCR00 register and SCR01 register, the others are fixed as 1.
Note 1.m: Unit number (m=0, 1) n: Channel number (n=0~3)p: SSPI number (p=00, 01, 10, 11, 20, 21.) )
mn=00~03, 10~11
2. : Fixed in SSPI master receive mode. : Cannot be set (initial value).
×: This is the bit that cannot be used in this mode (set the initial value if it is not used in other modes either).
0/1: Set 0 or 1 according to the user's purpose.
