CMS32L051 User Manual |Chapter 12 Universal Serial Communication Unit

www.mcu.com.cn 371 / 703

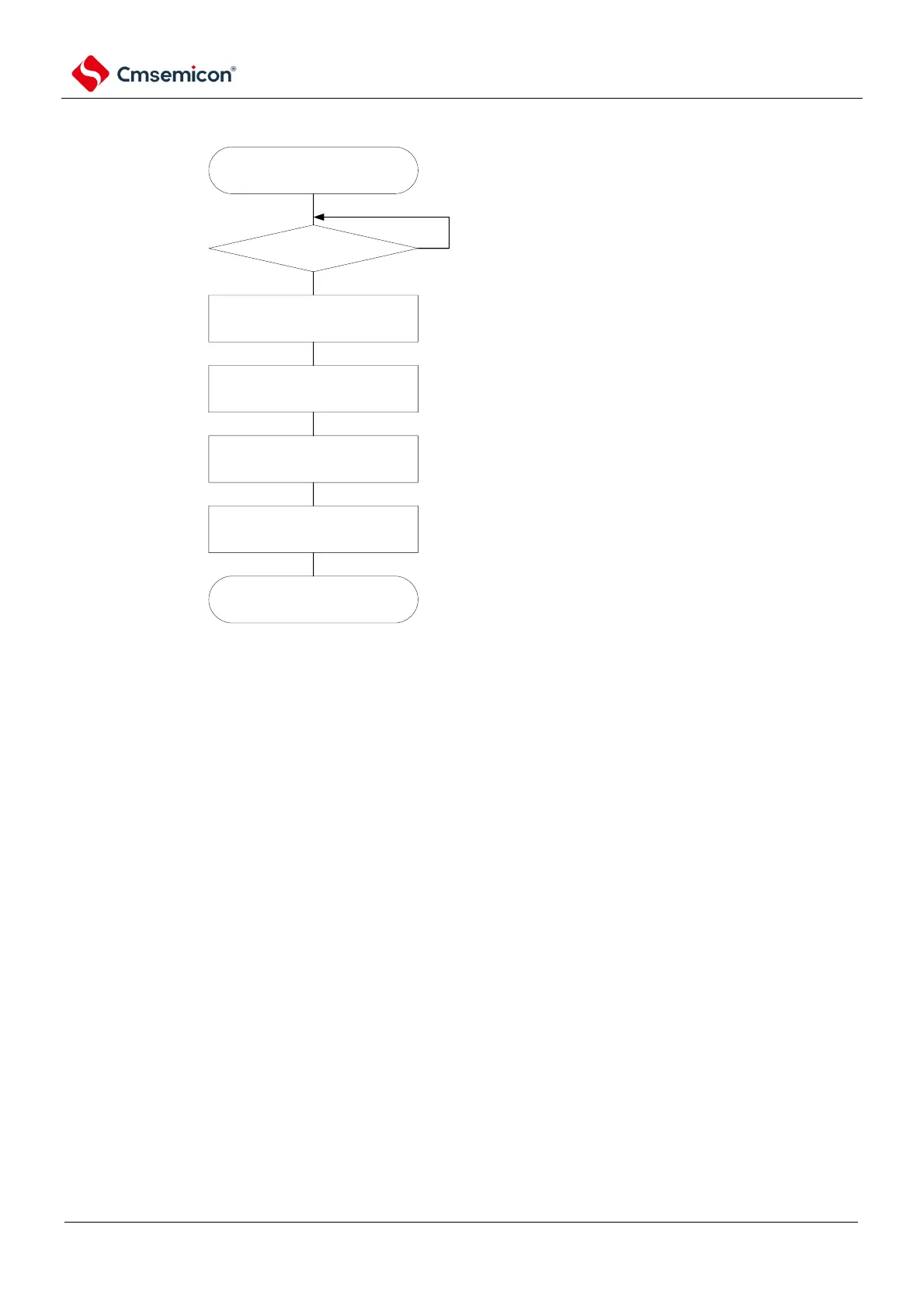

Figure 12-63 Stop steps for slave send and receive

termination configuration

starts

TSFmn = 0？

write into STm register

modify SOEm register

configuration

modify SOm register

configuration

configure PER0 register

termination configuration

ends.

Yes

if there are ongoing data transmission,

then wait till transmission completed. (if

need urgent stop, then no need to wait).

set STmm bit of target channel to 1.

(SEmn=0: set to operation stop state).

set SOEmn bit to 0, stop output of target

channel

when emergency stop, based on needs,

modify serial data (SOmn) voltage level of the

target channel.

stop clock of universal serial communication

unit, set to reset state

finish termination configuration, enter into

next processing.

(selection)

(mandatory)

(selection)
