V1.2.2

CMS32L051 User Manual |Chapter 12 Universal Serial Communication Unit

www.mcu.com.cn 450 / 703

(2) Process flow

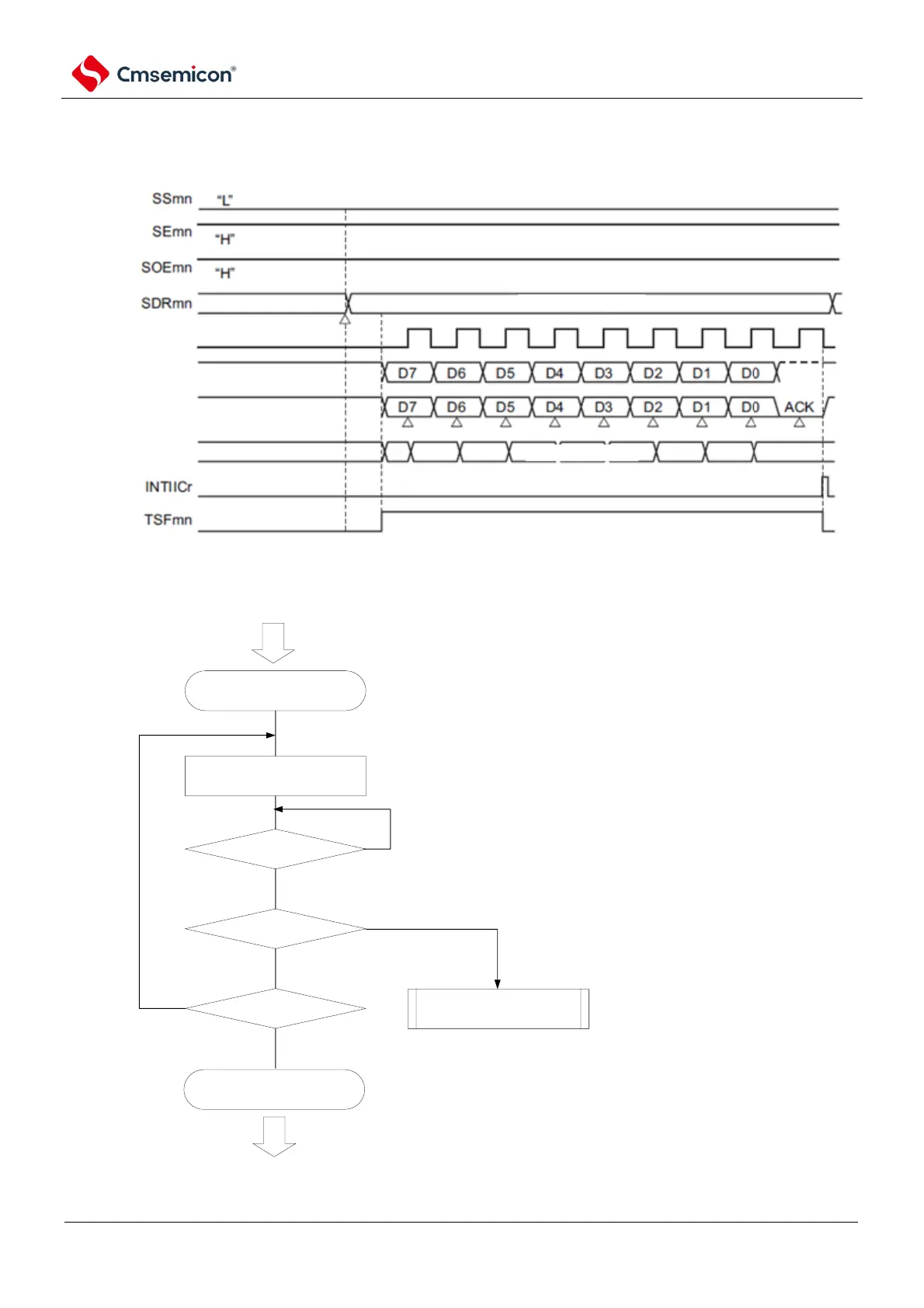

Figure 12-123 Timing diagram of data transmission

shift register mn

SDAr input

SDAr output

SDLr output

shift operation

transmit data 1

Figure 12-124 Flow chart of data transmission

data transmission starts

data transmission ends?

Write data to SIOr(SDRmn[7:0])

ACK acknowledged?

Yes

communication error handling

confirm slave device Ack acknowledgement via

PEFmn bit. If it is ACK (PEFmn=0), then enter into

next process step; if is NACK( PEFmn=1), then enter

into error handling.

wait for transmission completes (clear

interrupt request flag)

generate stop condition

address field transmit

completes.

start transmitting via writing data.

does transmission

completion interrupt occur?

data transmission

completes?

Yes
