V1.2.2

CMS32L051 User Manual |Chapter 14 Serial interface IICA

www.mcu.com.cn 539 / 703

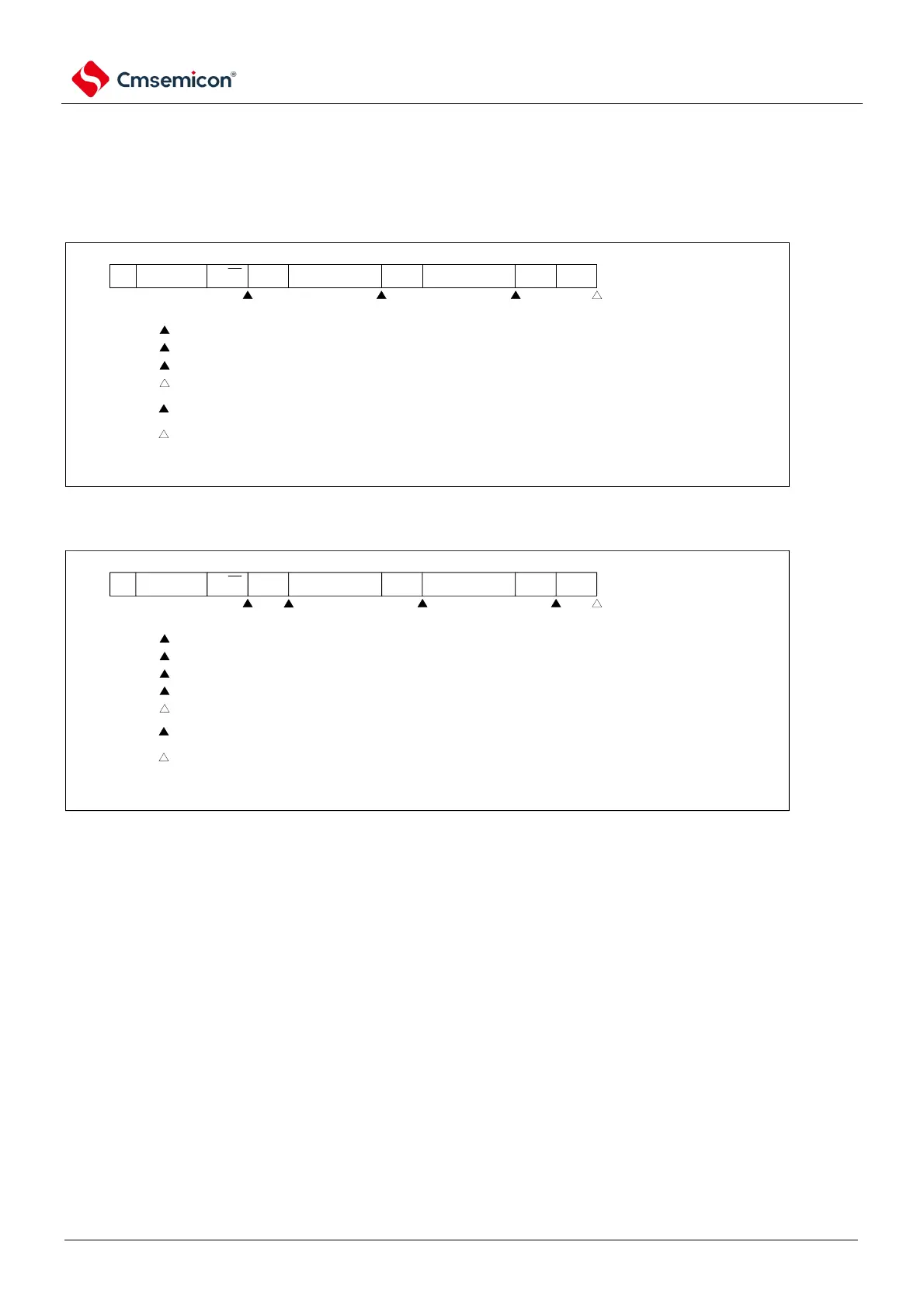

(3) Slave operation (case of receiving extension code).

Always participate in communication when receiving extension codes.

(a)

Start~Code~Data~Data~Stop

(i)

When WTIMn = 0

ST AD6~AD0 R/W ACK D7~D0 ACK D7~D0 ACK SP

1 2 3 4

1:IICSn=0010X010B

2:IICSn=0010X000B

3:IICSn=0010X000B

4:IICSn=00000001B

Remark must generate

only generate while SPIEn bit is '1'

any

(ii)

In the case of WTIMn=1

ST AD6~AD0 R/W ACK D7~D0 ACK D7~D0 ACK SP

1 3 4 5

1:IICSn=0010X010B

2:IICSn=0010X110B

4:IICSn=0010XX00B

5:IICSn=00000001B

3:IICSn=0010X100B

Remark must generate

only generate while SPIEn bit is '1'

any

Note n=0
