V1.2.2

CMS32L051 User Manual |Chapter 14 Serial interface IICA

www.mcu.com.cn 545 / 703

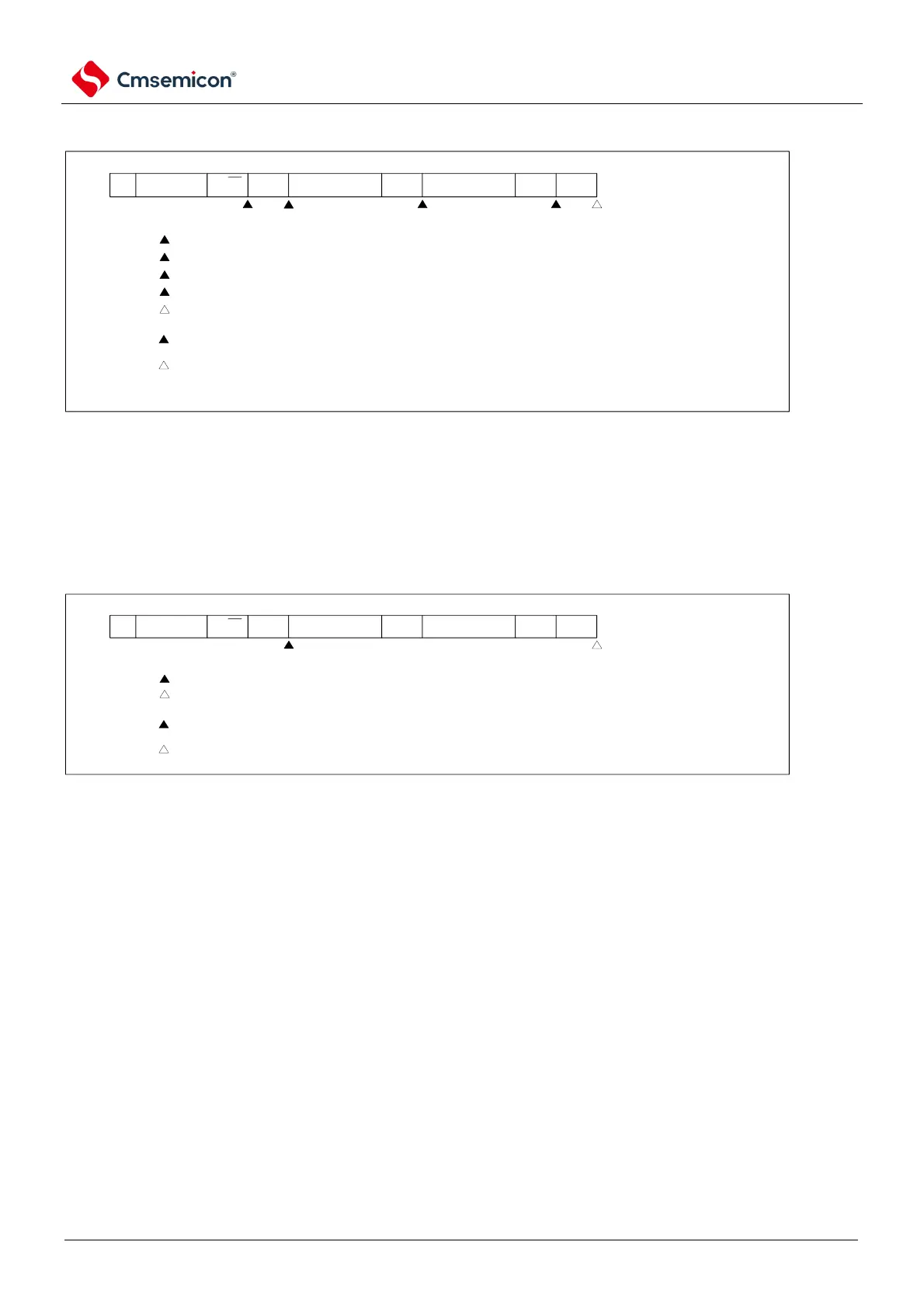

(ii)

When WTIMn=1

ST AD6~AD0 R/W ACK D7~D0 ACK D7~D0 ACK SP

1 3 4 5

1:IICSn=0110X010B

2:IICSn=0010X110B

4:IICSn=0010XX00B

5:IICSn=00000001B

3:IICSn=0010X100B

Remark must generate

only generate while SPIEn bit is '1'

any

(6) The failed operation of the arbitration (do not participate in the communication after the arbitration

fails).

When used as a master device in a multi-master system, the MSTSn bit must be read each time the

INTIICAn interrupt request signal is generated to confirm the arbitration result.

(a) Arbitration failure condition (WTIMn=1) during the sending of slave address data

ST AD6~AD0 R/W ACK D7~D0 ACK D7~D0 ACK SP

1 2

1:IICSn=01000110B

2:IICSn=00000001B

Remark must generate

only generate while SPIEn bit is '1'

Note n=0
