V1.2.2

CMS32L051 User Manual |Chapter 21 Reset Function

www.mcu.com.cn 637 / 703

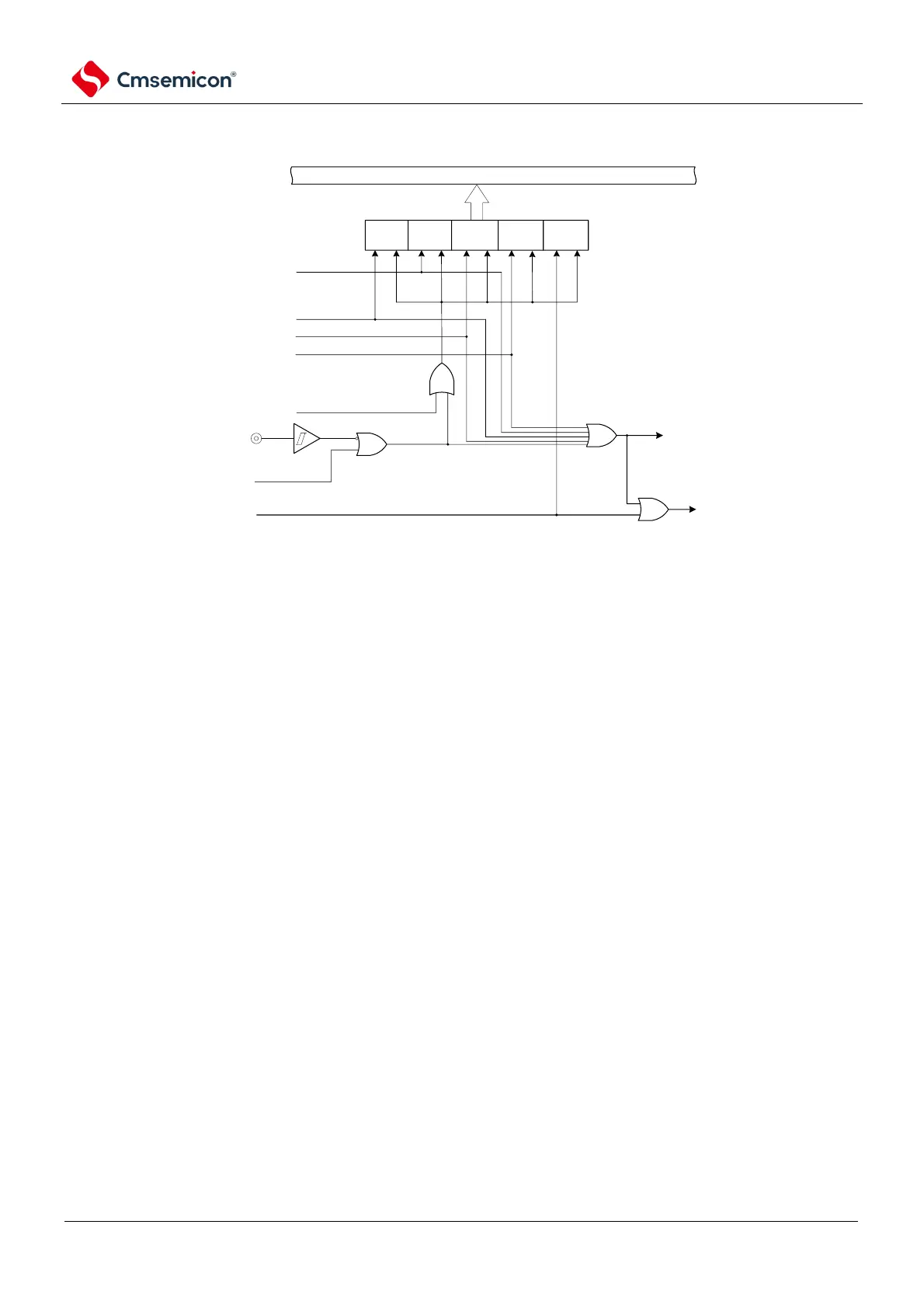

Figure 21-1 Block diagram of reset function

internal bus

reset control flag register （RESF）

SYSRF WDTRF RPERF IAWRF LVIRF

LVIM/LVIS register reset

signal

watchdog timer reset signal

reset signal generated by setting

system reset request bit

reset signal generated by RAM

parity check error

reset signal generated by illegal

access registers

RESF register read signal

RESETB

reset signal

reset signal of power on reset

circuit

reset signal of voltage

detection circuit

reset

reset reset reset

reset

erase erase erase

erase

Note that the internal reset of the LVD circuit does not reset the LVD circuit.

Note 1. LVIM: Voltage detection register

2. LVIS: Voltage detection level register
