V1.2.2

CMS32L051 User Manual |Chapter 24 Security Features

www.mcu.com.cn 670 / 703

24.3.1.1 Flash CRC result register (PGCRCL).

This is the register that holds the results of high-speed CRC operations.

The PGCRCL register is set via a 16-bit memory operation command.

After the reset signal is generated, the value of this register changes to 0000H.

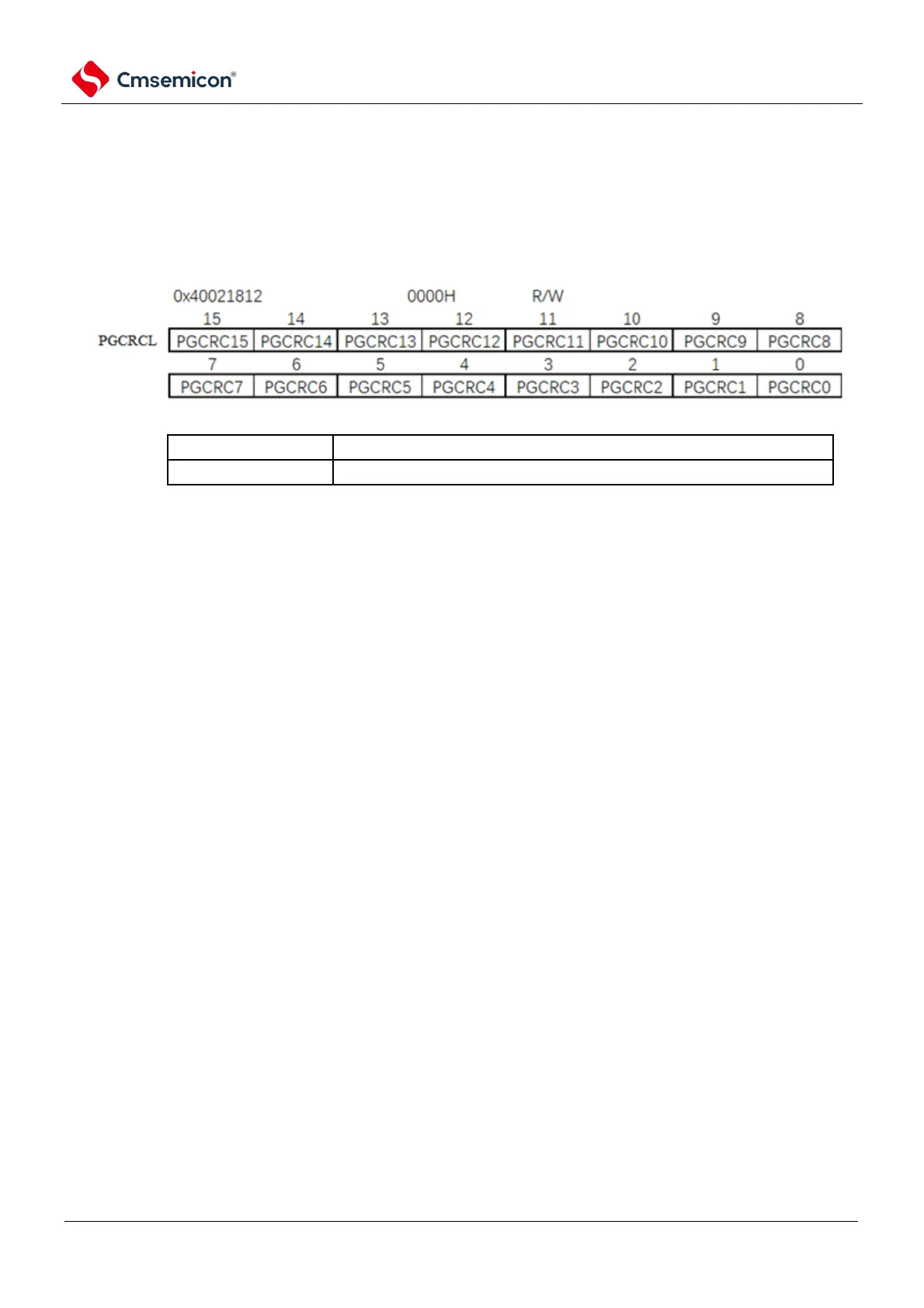

Figure 24-2 Format of flash CRC result register (PGCRCL)

Address:

symbol

after reset:

PGCRC15~0

The result of a high-speed CRC

0000H~FFFFH

Save the results of high-speed CRC.

Note that the PGCRCL register can only be written if the CRC0EN (bit7 of the CRC0CTL register) bit is 1.

A flowchart of the flash CRC operation function (high-speed CRC) is shown in Figure 24-3.
