Enabling/Disabling GVRP (GARP VLAN Registration Protocol)

Enterasys B5 CLI Reference 10-21

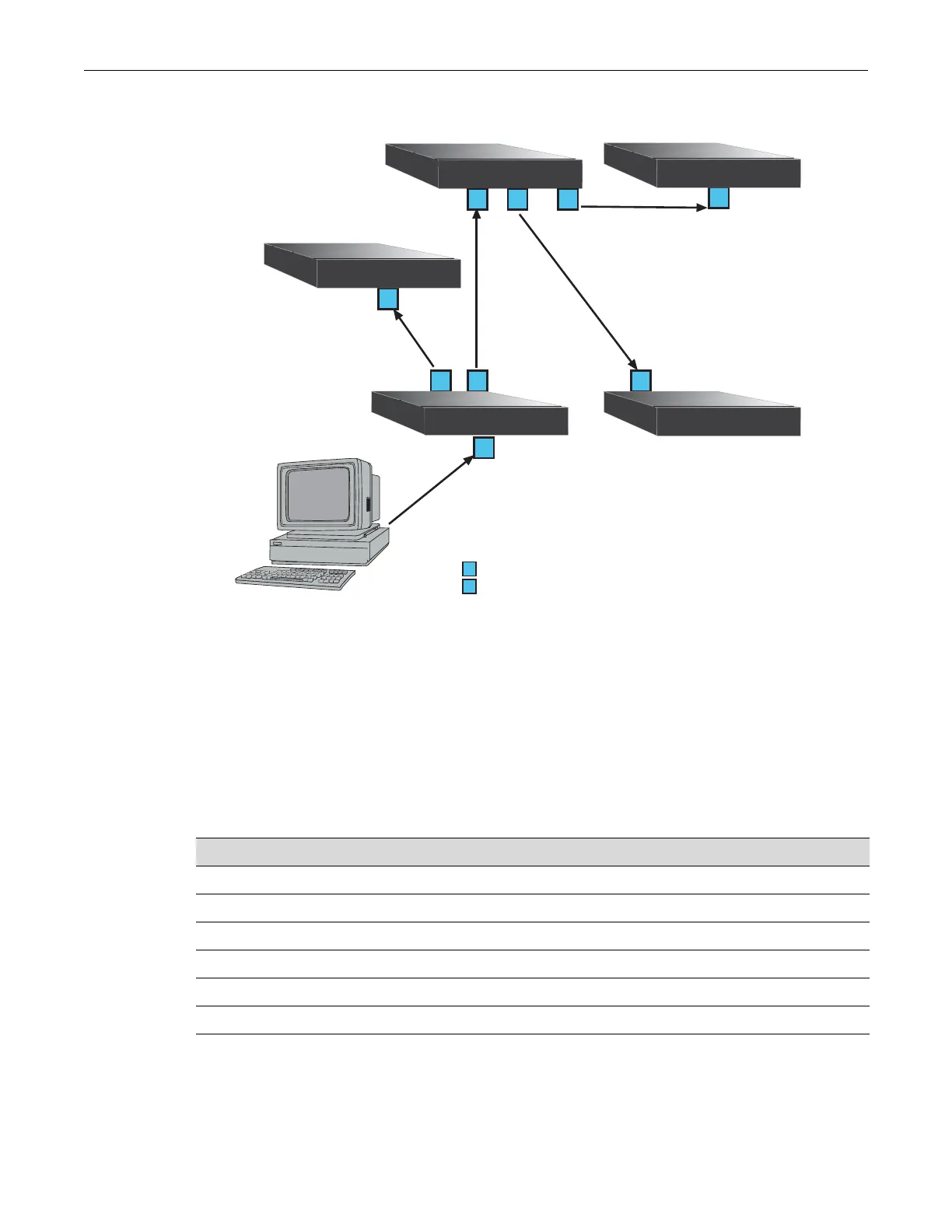

Figure 10-1 Example of VLAN Propagation via GVRP

Purpose

TodynamicallycreateVLANsacrossaswitchednetwork.TheGVRPcommandsetisusedto

displayGVRPconfigurationinformation,thecurrentglobalGVRPstatesetting,individualport

settings(enableordisable)andtimersettings.Bydefault,GVRPisdisabledgloballyonthedevice

anddisabledonallports.

Commands

End

Station A

Switch 4

Switch 5

= Port registered as a member of VLAN Blue

= Port declaring VLAN Blue

Switch 1

Switch 2

Switch 3

For information about... Refer to page...

show gvrp 10-22

show garp timer 10-22

set gvrp 10-23

clear gvrp 10-24

set garp timer 10-25

clear garp timer 10-25

Default Chapter7
