I2C timings

The timings must be configured in order to guarantee a correct data hold and setup time,

used in master and slave modes. This is done by programming the PRESC[3:0],

SCLDEL[3:0] and SDADEL[3:0] bits in the I2C_TIMINGR register.

The STM32CubeMX tool calculates and provides the I2C_TIMINGR content in the I2C

configuration window

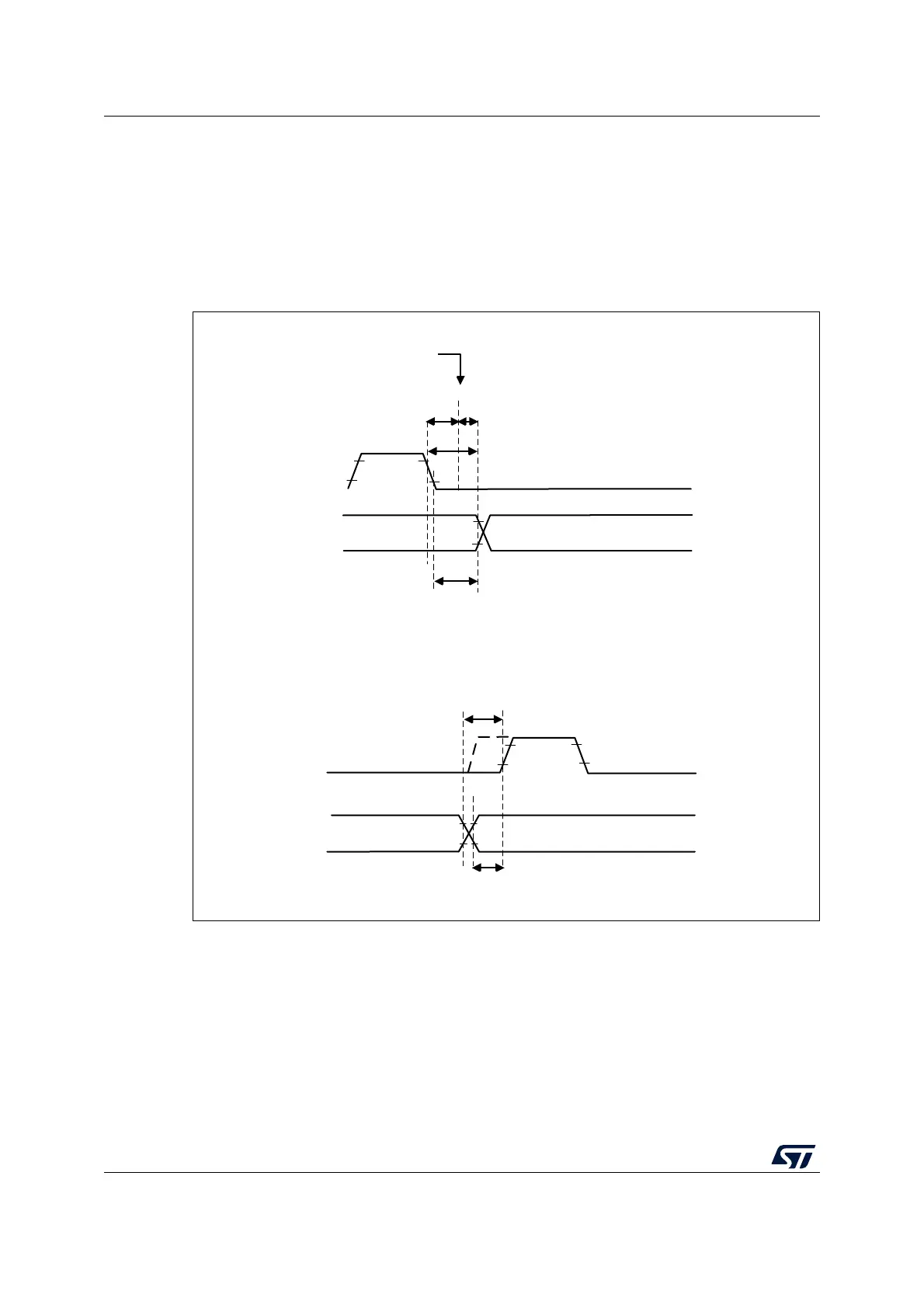

Figure 277. Setup and hold timings

MSv40108V1

SYNC1

SCL falling edge internal

detection

SDADEL: SCL stretched low by the I2C

SDA output delay

SCL

SDA

DATA HOLD TIME

HD;DAT

SCLDEL

SCL stretched low by the I2C

SCL

SDA

DATA SETUP TIME

SU;STA

Data hold time: in case of transmission, the data is sent on SDA output after

the SDADEL delay, if it is already available in I2C_TXDR.

Data setup time: in case of transmission, the SCLDEL counter starts

when the data is sent on SDA output.
