Sub-GHz radio (SUBGHZ) RM0453
168/1461 RM0453 Rev 1
length definition. The full packet (preamble, synch word, device id to CRC) must be provided
in the transmit data buffer.
5.6 Sub-GHz radio data buffer
The sub-GHz radio uses a 256-byte RAM data buffer that is accessible by the CPU through
the SUBGHZSPI interface in all sub-GHz radio operating modes except Sleep and
Deep-Sleep. The RAM data buffer is cleared in Deep-Sleep mode, optionally retained in
Sleep mode and always retained in all other modes. In Sleep and Deep-Sleep modes, the
TxBaseAddr and RxBaseAddr values are lost. In order to retrieve data after Sleep mode
retention, the default values must be used (TxBaseAddr = 0x80 and RxBaseAddr = 0x00),
or RxPayloadLength and RxStartBufferPointer must be stored in the CPU memory.
The RAM data buffers are fully configurable. They allow access to the transmit data buffer
and the last receive data buffer. The RAM data buffer organization is depicted in the figure
below.

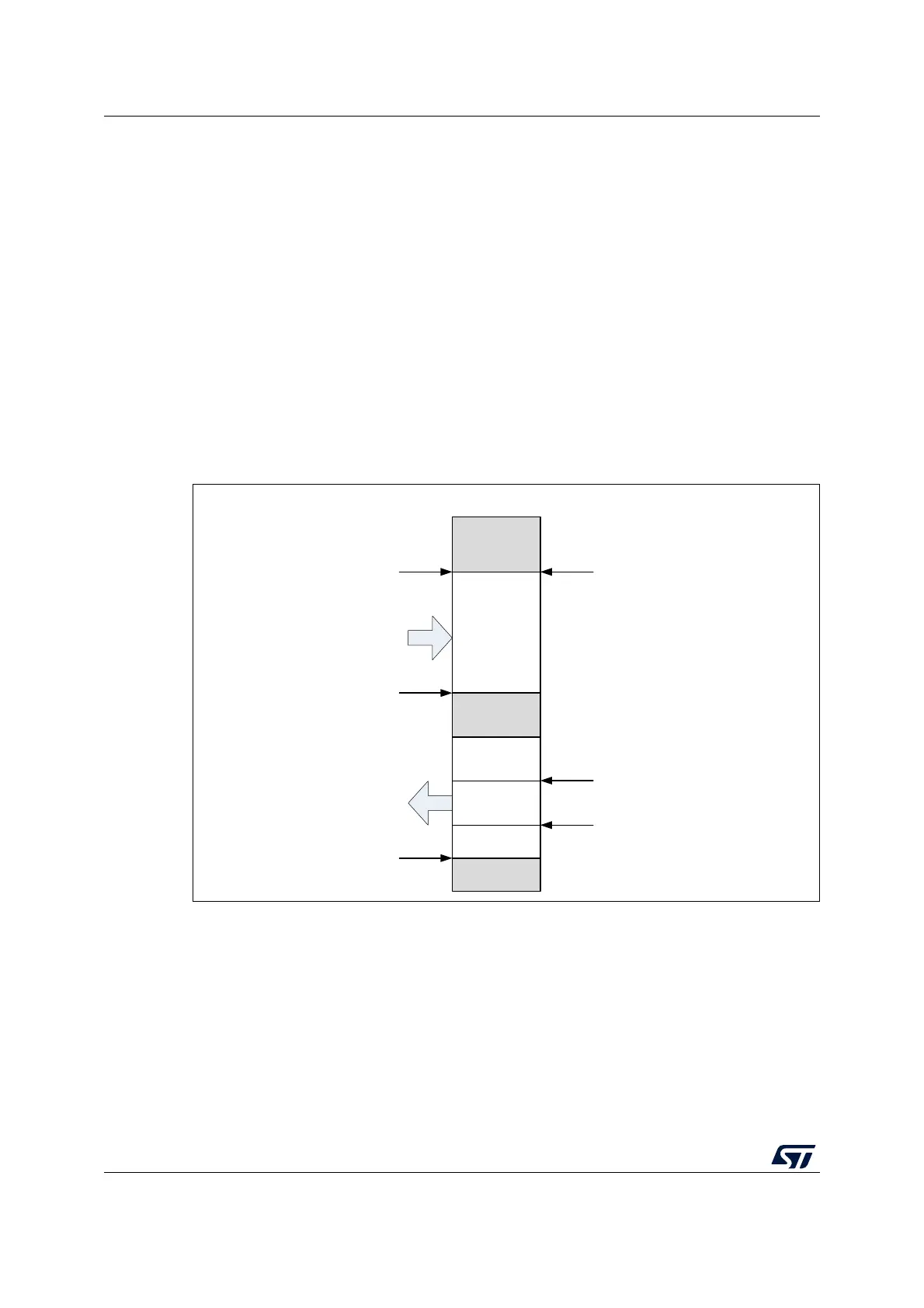

Figure 14. sub-GHz RAM data buffer operation
The RAM data buffer is accessed by Write_Buffer() and Read_Buffer()commands.
The offset parameter defines the address in the SRAM data buffer. To read the first byte
from the receive data buffer, the offset must be set to the RxStartBufferPointer value. To
write to the first byte in the transmit data buffer, the offset must be set to the TxBaseAddr
value.
The RAM data buffer has a circular nature: any address increment exceeding 0xFF wraps
around to address 0x00.
MSv62621V1
RAM data
buffer
Transmit
data buffer
Receive
data buffer
CPU side Sub-GHz radio side
TxBaseAddr + PayloadLength
TxBaseAddr
TxBufferPointer
RxBaseAddr
RxStartBufferPointer + RxPayloadLength
RxStartBufferPointer
Write_Buffer()
Read_Buffer()
address 0x00
address 0xFF
Last received
poayload
