General-purpose timers (TIM16/TIM17) RM0453

920/1461 RM0453 Rev 1

If the delay is greater than the width of the active output (OCx or OCxN) then the

corresponding pulse is not generated.

The following figures show the relationships between the output signals of the dead-time

generator and the reference signal OCxREF. (we suppose CCxP=0, CCxNP=0, MOE=1,

CCxE=1 and CCxNE=1 in these examples)

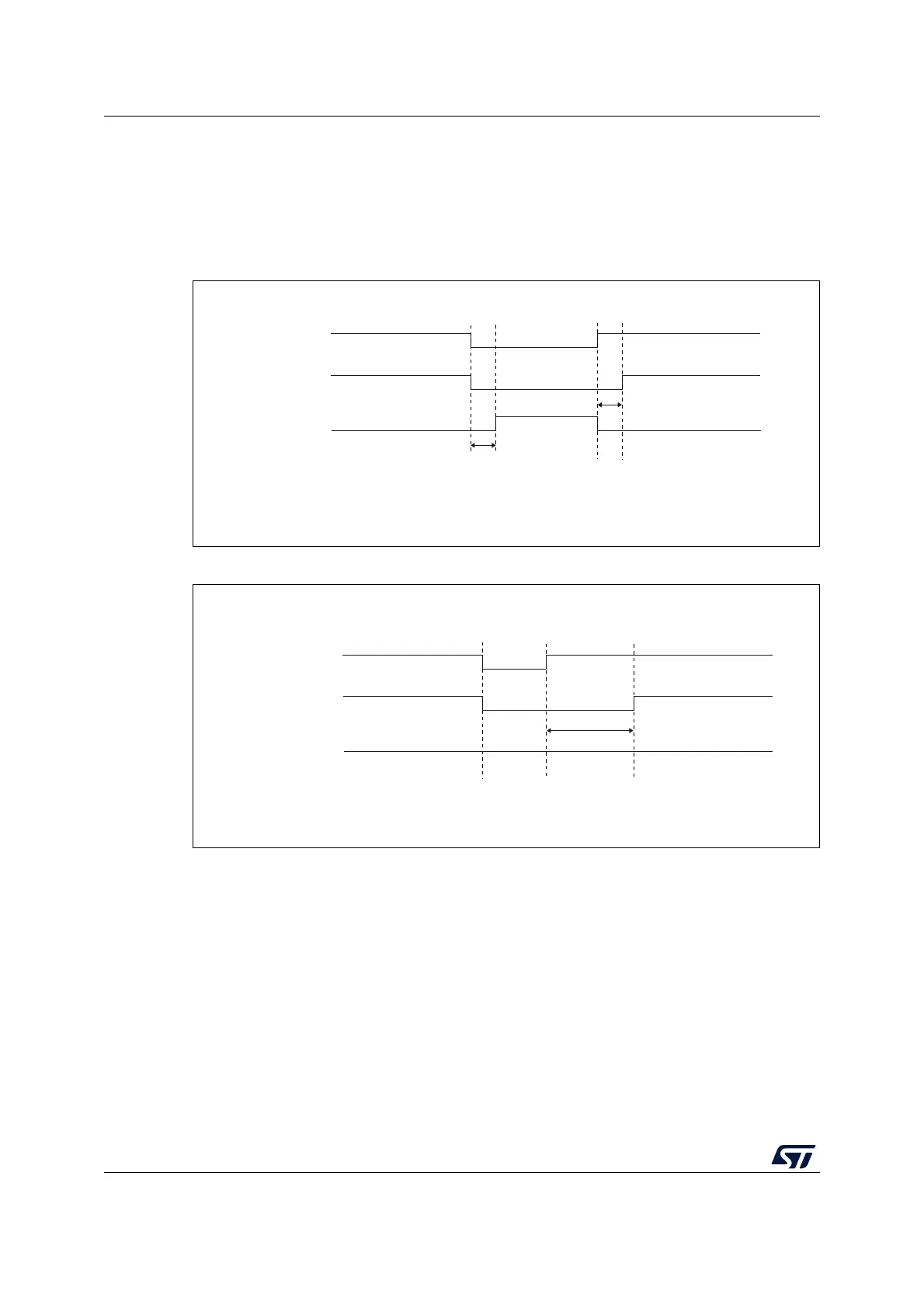

Figure 255. Complementary output with dead-time insertion.

Figure 256. Dead-time waveforms with delay greater than the negative pulse.

delay

OCxREF

OCx

OCxN

MS31095V1

MS31096V1

delay

OCxREF

OCx

OCxN
