System window watchdog (WWDG) RM0453
994/1461 RM0453 Rev 1
Note: The T6 bit can be used to generate a software reset (the WDGA bit is set and the T6 bit is
cleared).
31.3.5 How to program the watchdog timeout
Use the formula in Figure 272 to calculate the WWDG timeout.
Warning: When writing to the WWDG_CR register, always write 1 in the
T6 bit to avoid generating an immediate reset.

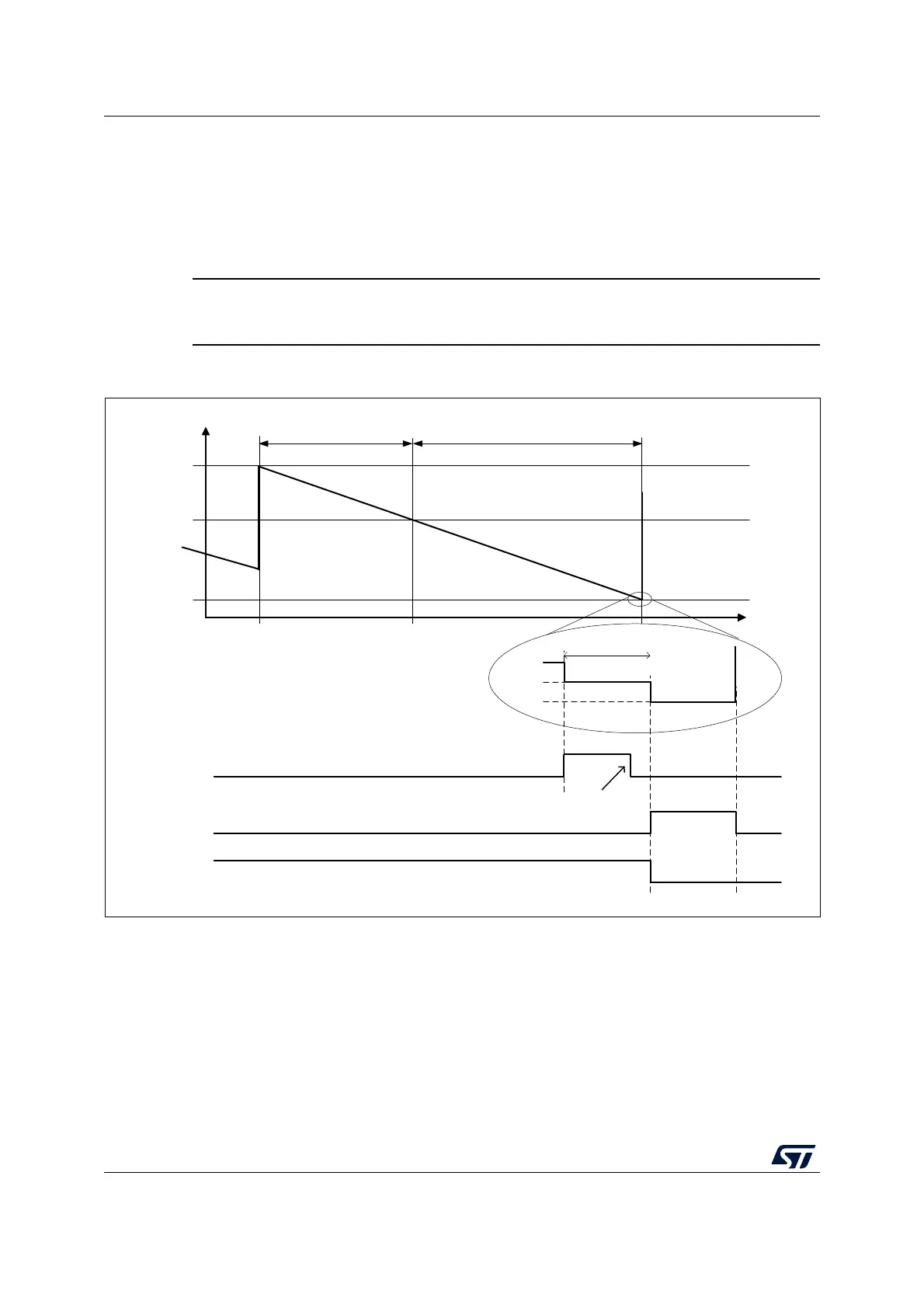

Figure 272. Window watchdog timing diagram
The formula to calculate the timeout value is given by:
where:
t
WWDG
: WWDG timeout
t
PCLK
: APB clock period measured in ms
4096: value corresponding to internal divider
MS47266V1
W[6:0]
0x3F
0x41
0x40
0x3F
wwdg_ewit
wwdg_rst
Refresh not allowed Refresh allowed
Time
T[6:0]
T
pclk
x 4096 x 2
WDGTB
CNT DownCounter
T6 bit
EWIF = 0
t
WWDG
t
PCLK
4096 2
WDGTB[2:0]
T5:0[]1+()×××=ms()
