Analog-to-digital converter (ADC) RM0453
562/1461 RM0453 Rev 1

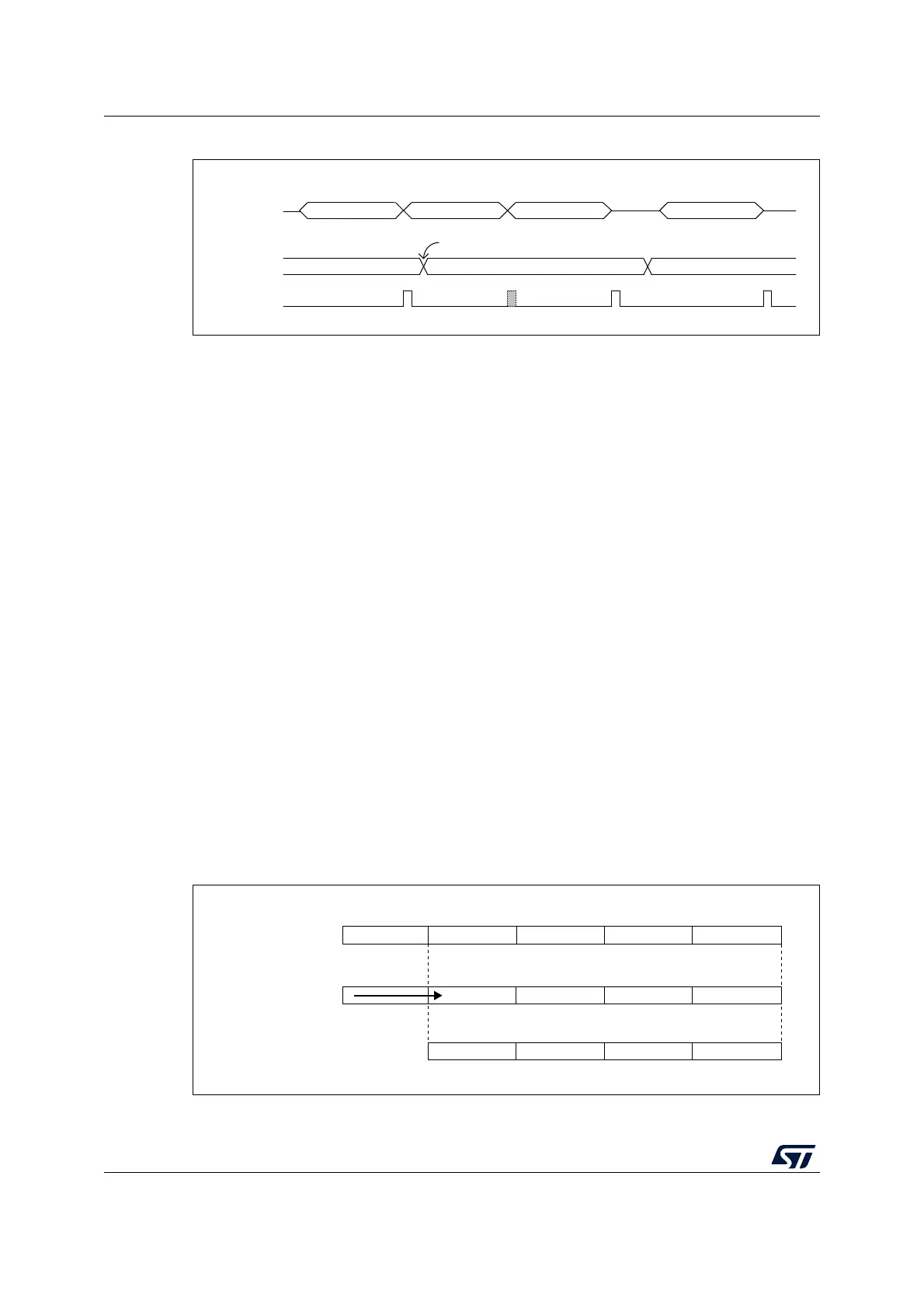

Figure 80. Analog watchdog threshold update
18.8 Oversampler
The oversampling unit performs data preprocessing to offload the CPU. It can handle
multiple conversions and average them into a single data with increased data width, up to
16-bit.
It provides a result with the following form, where N and M can be adjusted:
It allows the following functions to be performed by hardware: averaging, data rate
reduction, SNR improvement, basic filtering.
The oversampling ratio N is defined using the OVFS[2:0] bits in the ADC_CFGR2 register. It
can range from 2x to 256x. The division coefficient M consists of a right bit shift up to 8 bits.
It is configured through the OVSS[3:0] bits in the ADC_CFGR2 register.
The summation unit can yield a result up to 20 bits (256 x 12-bit), which is first shifted right.
The upper bits of the result are then truncated, keeping only the 16 least significant bits
rounded to the nearest value using the least significant bits left apart by the shifting, before
being finally transferred into the ADC_DR data register.
Note: If the intermediate result after the shifting exceeds 16 bits, the upper bits of the result are
simply truncated.
Figure 81. 20-bit to 16-bit result truncation
MSv45365V1
ADC state Conversion Conversion
LTx, HTx XXXX
Comparison
Active
XXXY
Masked
Threshould updated
Conversion
Active
XXXZ
Conversion
Result
1
M
-----
Conversion t
n
()
n0=
nN1–=
×=
037111519
Raw 20-bit data
Truncation
and rounding
Shifting
015
MS31928V2
