RM0453 Rev 1 1089/1461

RM0453 Inter-integrated circuit (I2C) interface

1126

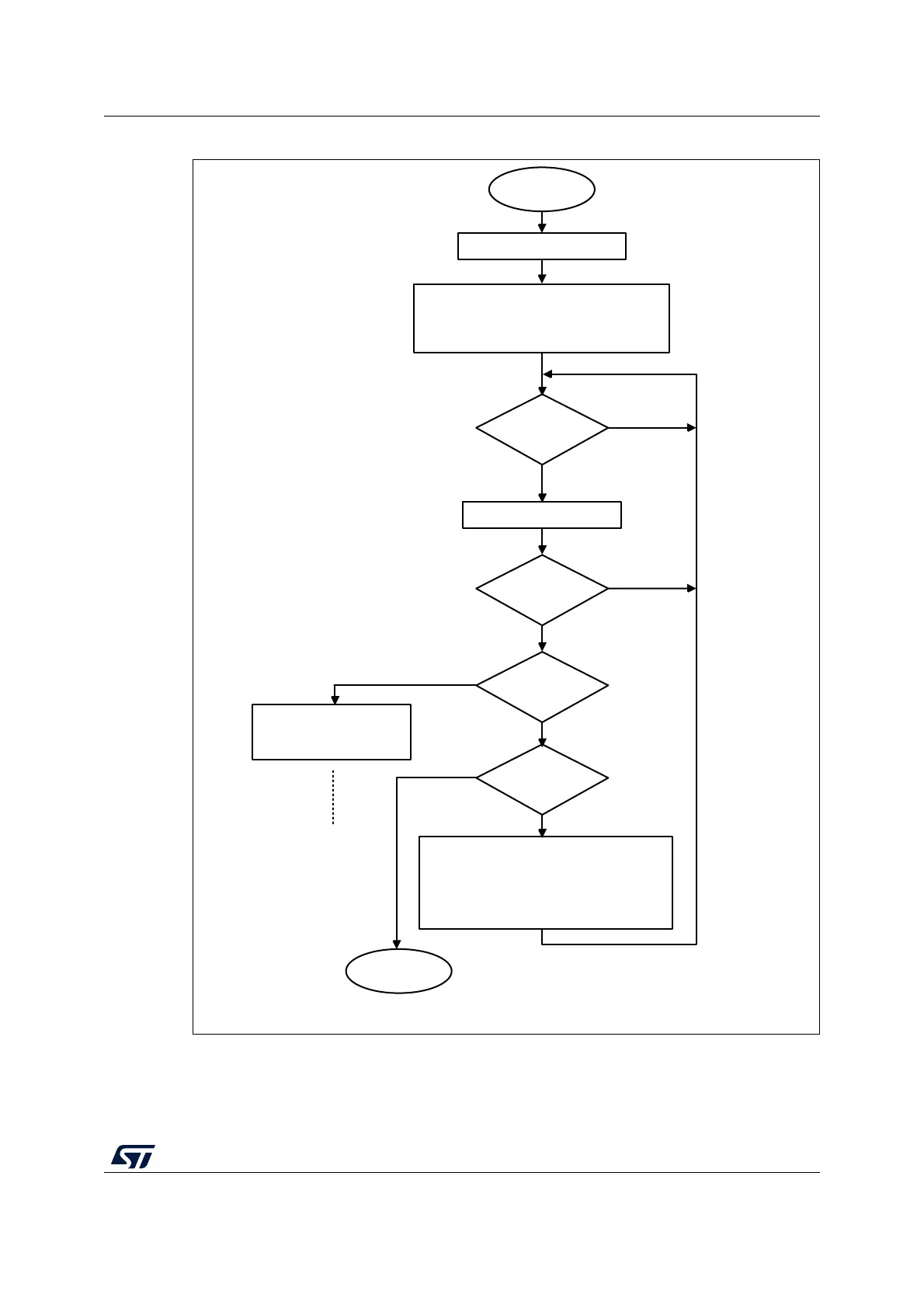

Figure 296. Transfer sequence flowchart for I2C master receiver for N >255 bytes

MS19864V2

Master initialization

Master reception

Read I2C_RXDR

I2C_ISR.RXNE

=1?

Yes

NBYTES = 0xFF; N=N-255

RELOAD =1

Configure slave address

Set I2C_CR2.START

NBYTES

received?

I2C_ISR.TC =

Yes

End

Yes

Set I2C_CR2.START with

slave addess NBYTES ...

I2C_ISR.TCR

= 1?

Yes

IF N< 256

NBYTES =N; N=0;RELOAD=0

AUTOEND=0 for RESTART; 1 for STOP

ELSE

NBYTES =0xFF;N=N-255

RELOAD=1
