General-purpose timer (TIM2) RM0453

842/1461 RM0453 Rev 1

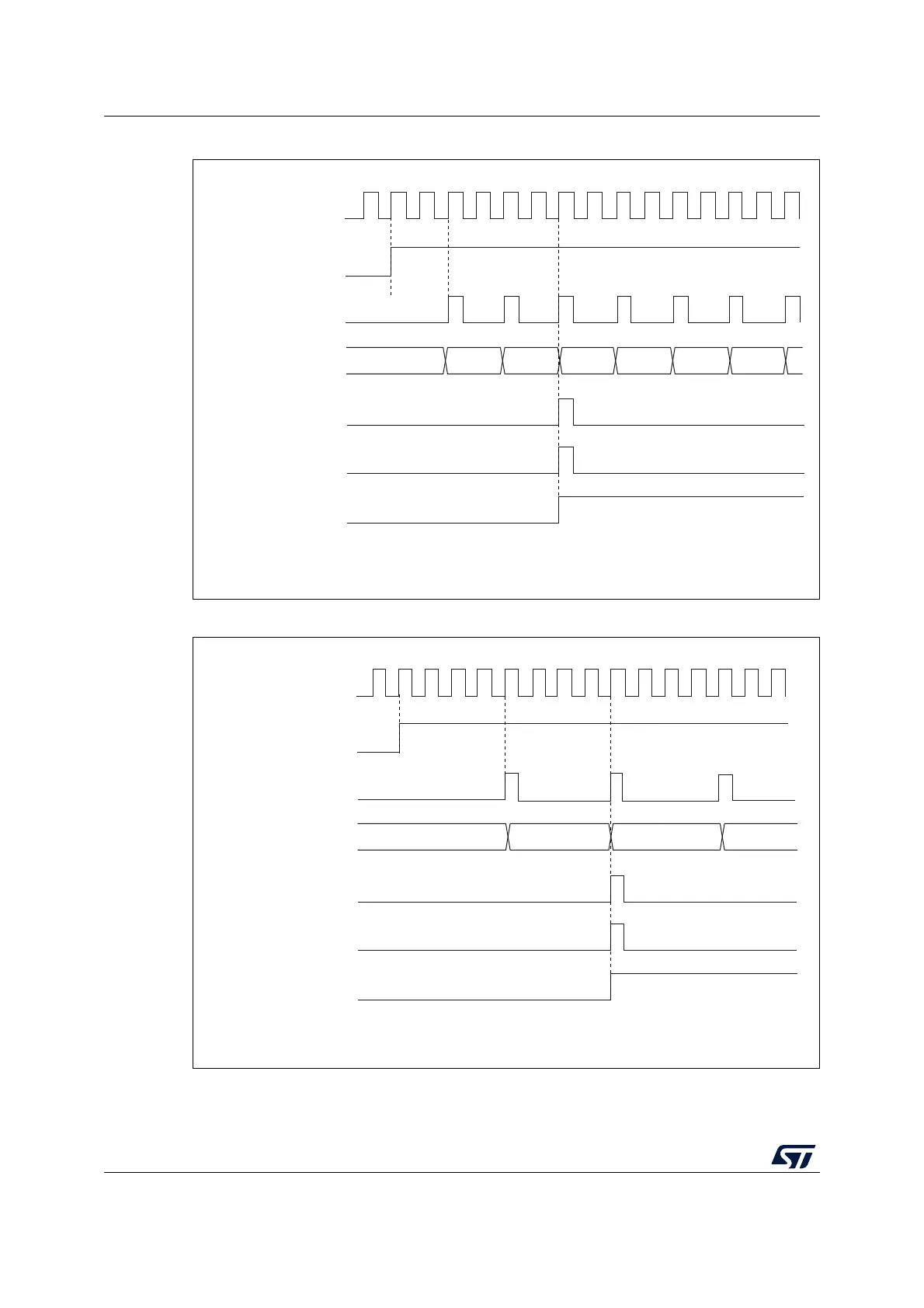

Figure 203. Counter timing diagram, internal clock divided by 2

Figure 204. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

1. Center-aligned mode 2 or 3 is used with an UIF on overflow.

MS31190V1

CK_PSC

CNT_EN

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter underflow

Update interrupt flag

(UIF)

0003

0002

0001

0000

0001

0002

0003

0034 0035

MS31191V1

CK_PSC

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter overflow

Update interrupt flag

(UIF)

CNT_EN

Note: Here, center_aligned mode 2 or 3 is updated with an UIF on overflow

0036 0035
