General-purpose timer (TIM2) RM0453

838/1461 RM0453 Rev 1

The following figures show some examples of the counter behavior for different clock

frequencies when TIMx_ARR=0x36.

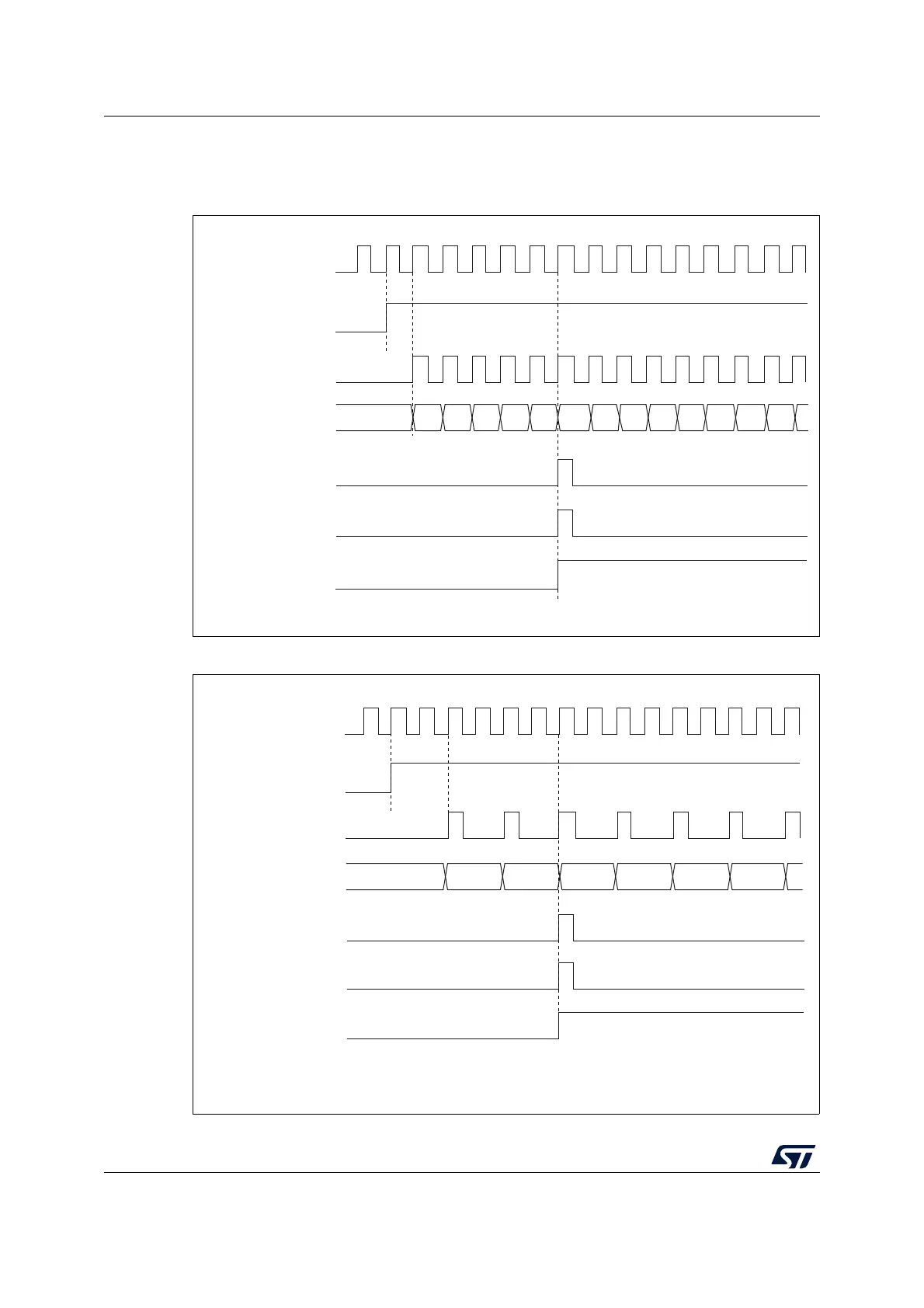

Figure 197. Counter timing diagram, internal clock divided by 1

Figure 198. Counter timing diagram, internal clock divided by 2

32 31

30 2F

02 01 00

MS31184V1

CK_PSC

CNT_EN

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter underflow

(cnt_udf)

Update interrupt flag

(UIF)

MS31185V1

CK_PSC

CNT_EN

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter underflow

Update interrupt flag

(UIF)

0002

0001

0000

0036

0035

0034

0033
