Advanced-control timer (TIM1) RM0453
768/1461 RM0453 Rev 1
All sources are ORed before entering the timer BRK or BRK2 inputs, as per Figure 171
below.

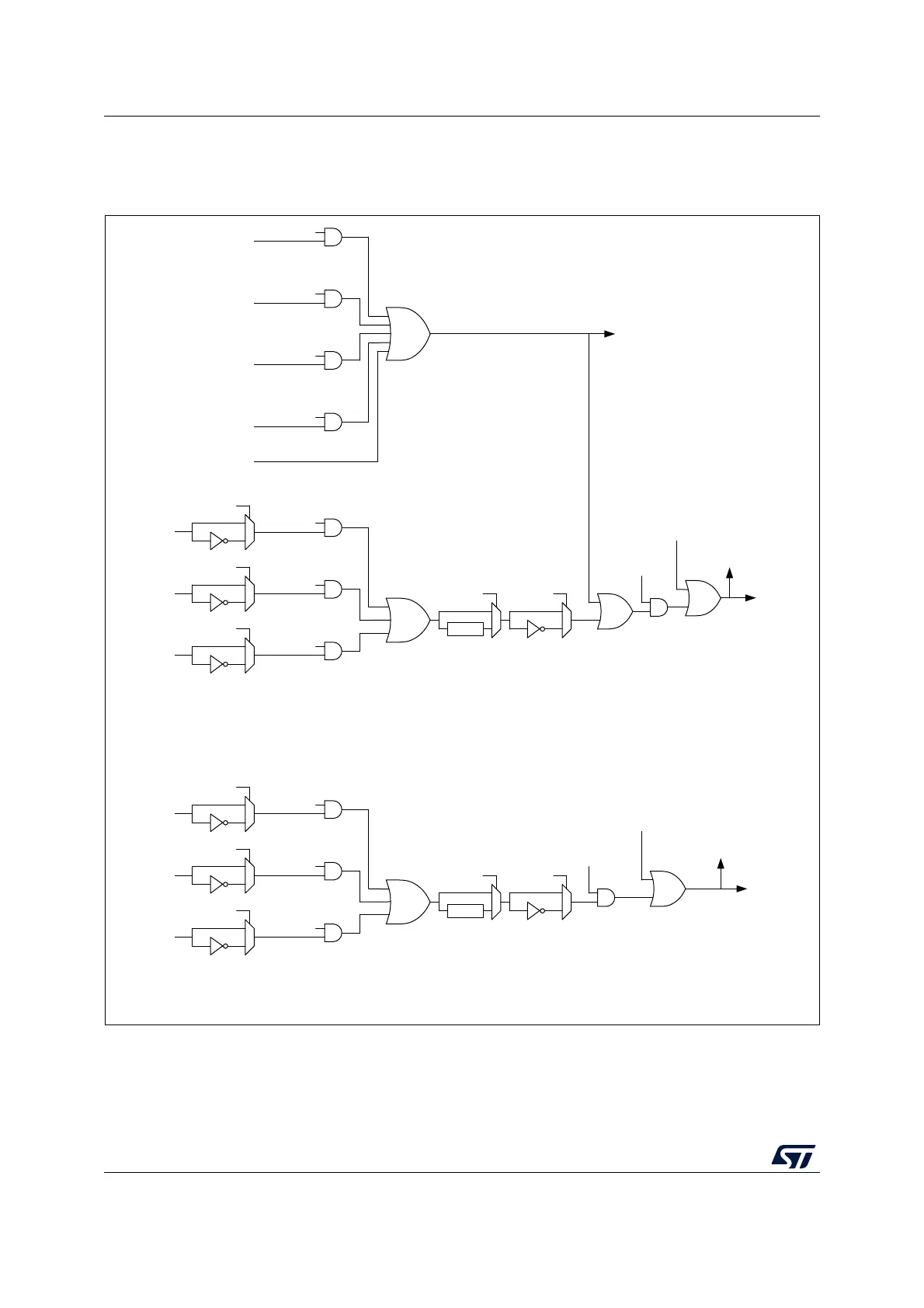

Figure 171. Break and Break2 circuitry overview
Note: An asynchronous (clockless) operation is only guaranteed when the programmable filter is
disabled. If it is enabled, a fail safe clock mode (for example by using the internal PLL and/or
the CSS) must be used to guarantee that break events are handled.
COMP2 output
BK2CMP2E
BK2CMP2P
COMP1 output
BK2CMP1E
BK2CMP1P
BKIN2 inputs
from AF
controller
BK2INE
BK2INP
BK2F[3:0]
Filter
BK2P
Application break requests
COMP2 output
BKCMP2E
BKCMP2P
COMP1 output
BKCMP1E
BKCMP1P
BKIN inputs
from AF
controller
BKINE
BKINP
BKF[3:0]
Filter
BKP
Application break requests
ECC LOCK
Parity LOCK
PVD LOCK
Lockup LOCK
Double ECC Error
RAM parity Error
PVD
Core Lockup
CSS
SBIF flag
System break requests
Software break requests: B2G
B2IF flag
BRK2 request
BKE
BRK request
BIF flag
Software break requests: BG
MSv37632V4
BK2E
