RM0453 Rev 1 557/1461

RM0453 Analog-to-digital converter (ADC)

592

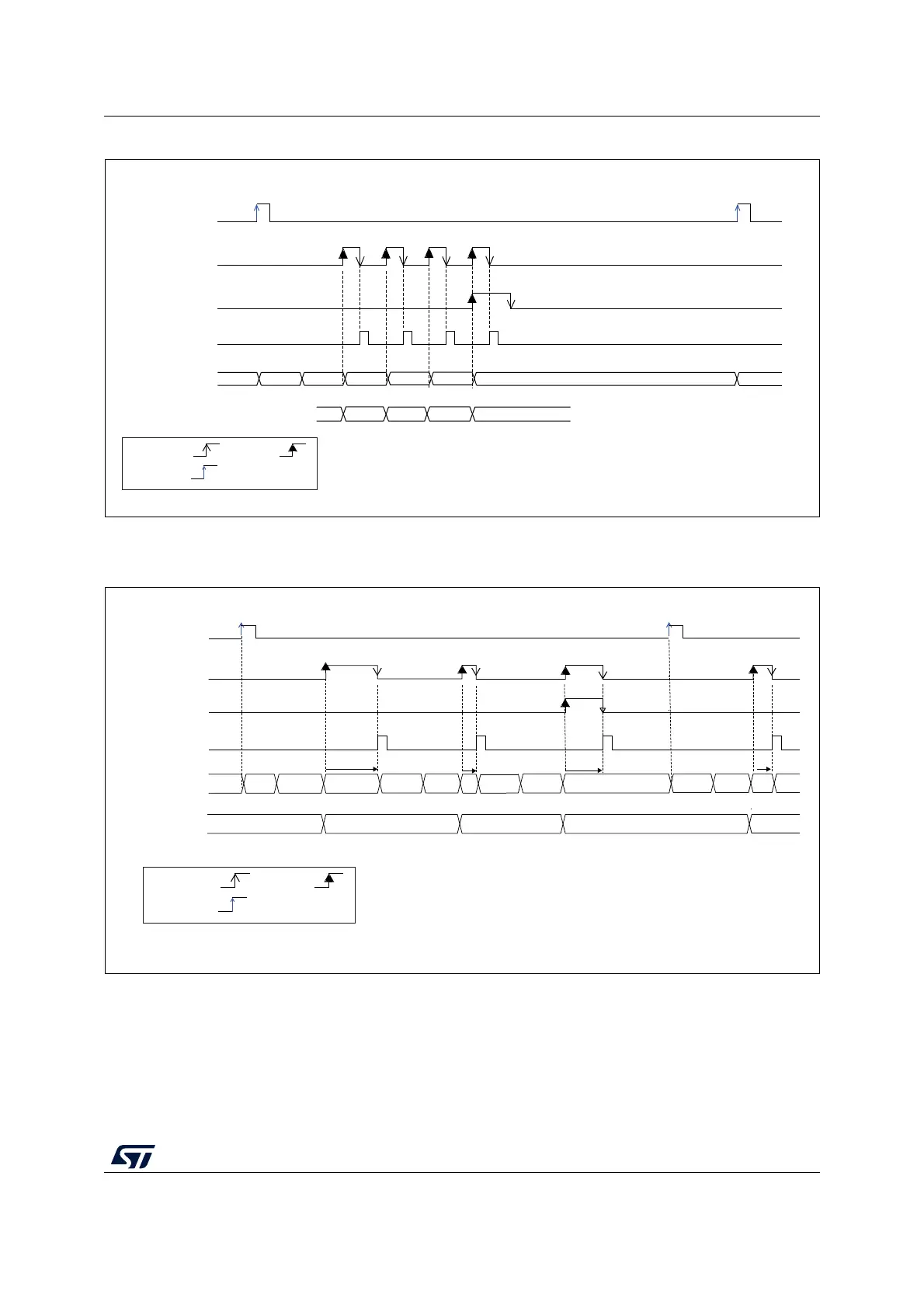

Figure 74. Behavior with WAIT = 0, AUTOFF = 1

1. EXTSEL = TRGx, EXTEN = 01 (rising edge), CONT = x, ADSTART = 1, CHSEL = 0xF, SCANDIR = 0, WAIT = 1,

AUTOFF = 1

Figure 75. Behavior with WAIT = 1, AUTOFF = 1

1. EXTSEL = TRGx, EXTEN = 01 (rising edge), CONT = x, ADSTART = 1, CHSEL = 0xF, SCANDIR = 0, WAIT = 1,

AUTOFF = 1

MSv30345V2

TRGx

EOC

EOS

ADC_DR Read

access

ADC state

ADC_DR

by H/Wby S/W

triggered

D1 D3

RDY CH1 CH2

Startup CH4

CH3 OFF Startup

MSv30346V2

D1 D2 D3 D4

TRGx

EOC

EOS

ADC_DR Read

access

ADC state

ADC_DR

RDY CH1 OFFStartup

CH2

OFF

Startup

DLY

Startup CH3

OFF

DLY

Startup CH1

OFF

CH2

DLY

by H/Wby S/W

triggered
