RM0453 Rev 1 1167/1461

RM0453 Universal synchronous/asynchronous receiver transmitter (USART/UART)

1266

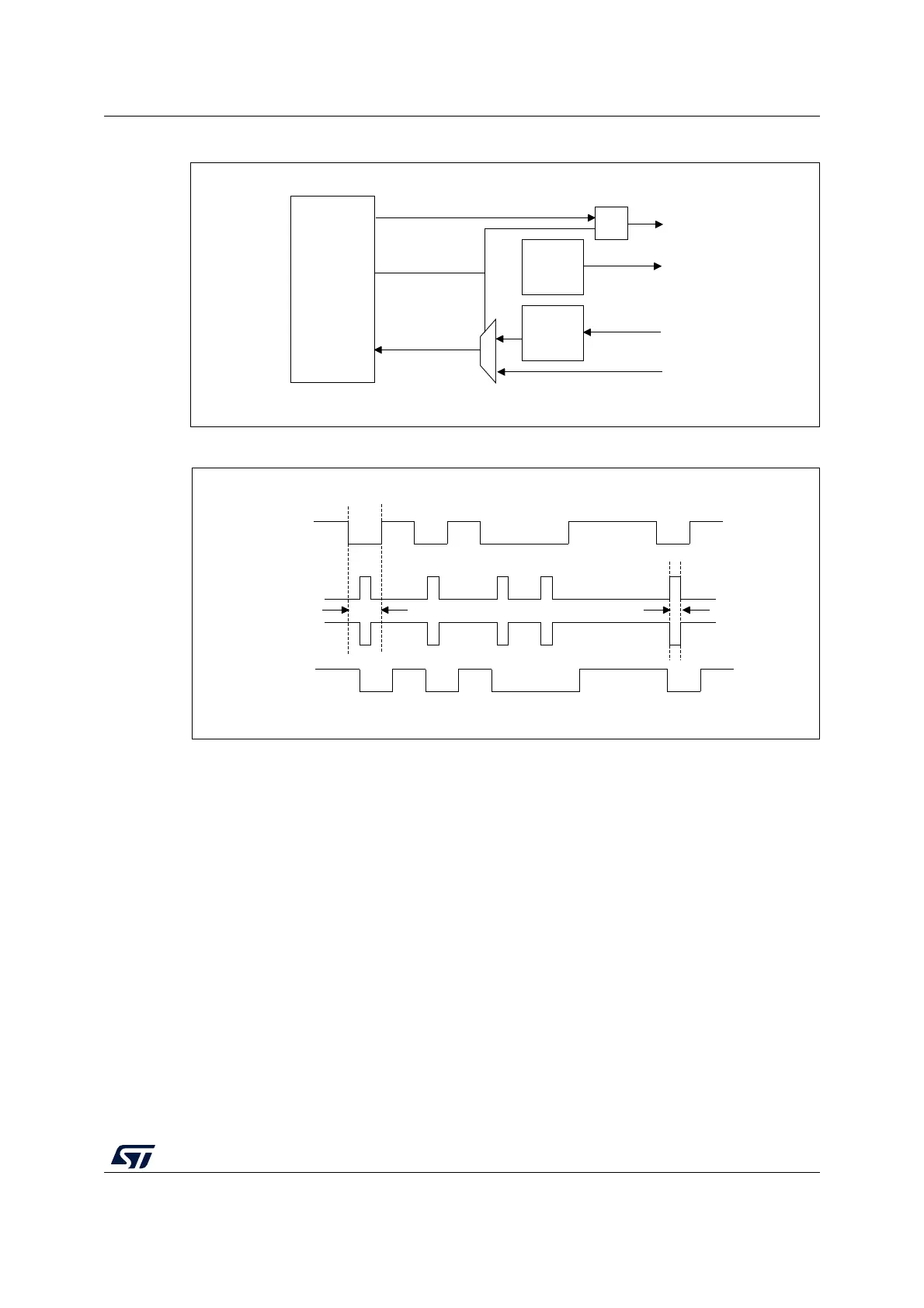

Figure 323. IrDA SIR ENDEC block diagram

Figure 324. IrDA data modulation (3/16) - Normal mode

MSv31164V1

USART

OR

SIR

Transmit

Encoder

SIR

Receive

DEcoder

TX

SIREN

RX

USART_RX

IrDA_IN

IrDA_OUT

USART_TX

MSv31165V1

TX

Start

bit

0101001101

Stop

bit

Bit period

IrDA_OUT

IrDA_IN

RX

3/16

0101 001101
