RM0453 Rev 1 1085/1461

RM0453 Inter-integrated circuit (I2C) interface

1126

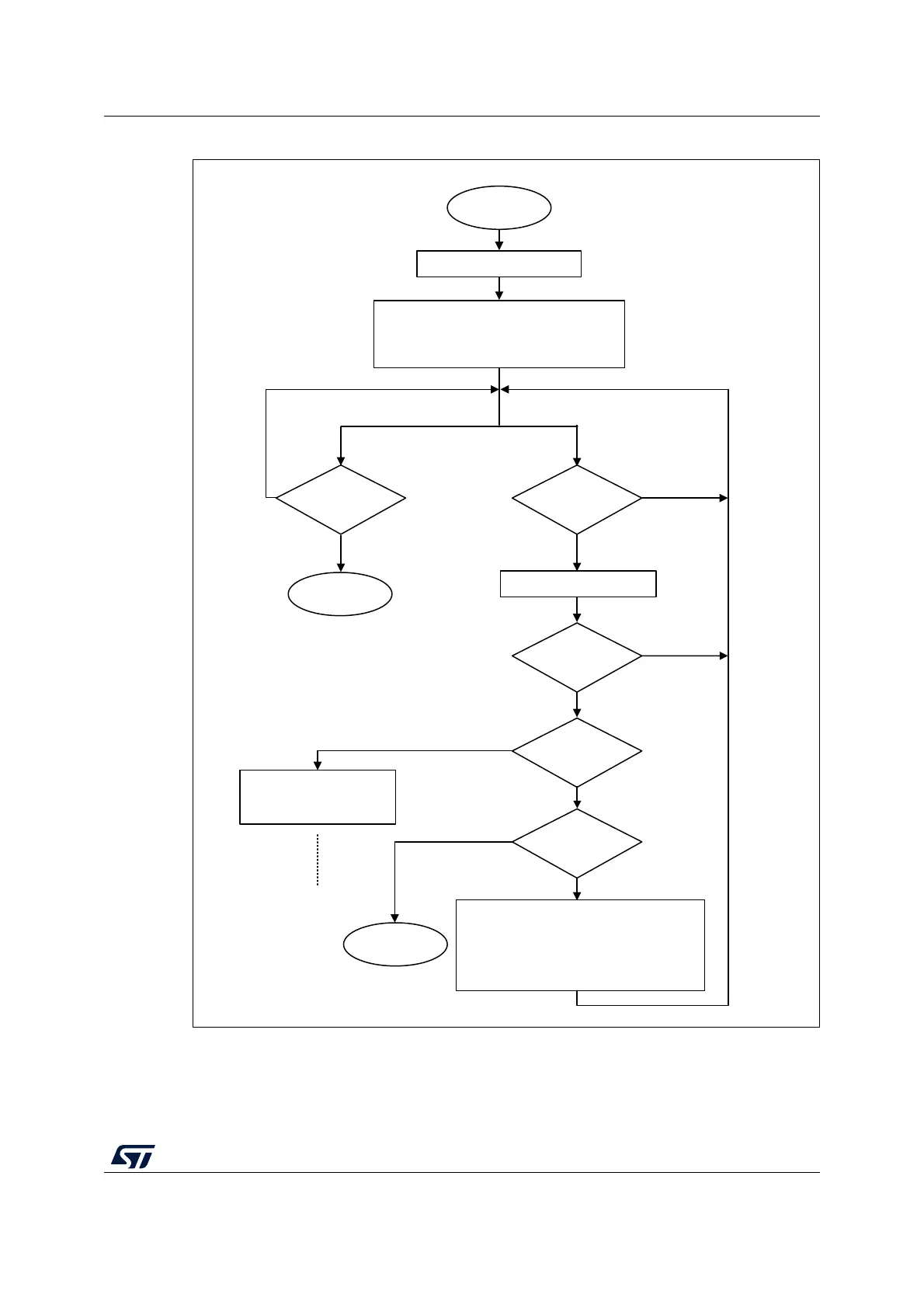

Figure 293. Transfer sequence flowchart for I2C master transmitter for N>255 bytes

MS19861V3

Master initialization

Master

transmission

Write I2C_TXDR

I2C_ISR.TXIS

=1?

Yes

I2C_ISR.NACKF

= 1?

Yes

NBYTES = 0xFF; N=N-255

RELOAD = 1

Configure slave address

Set I2C_CR2.START

End

NBYTES

transmitted ?

I2C_ISR.TC

= 1?

Yes

End

Yes

Set I2C_CR2.START

with slave addess

NBYTES ...

I2C_ISR.TCR

= 1?

Yes

IF N< 256

NBYTES = N; N = 0; RELOAD = 0

AUTOEND = 0 for RESTART; 1 for STOP

ELSE

NBYTES = 0xFF; N = N-255

RELOAD = 1
