RM0453 Rev 1 561/1461
RM0453 Analog-to-digital converter (ADC)
592

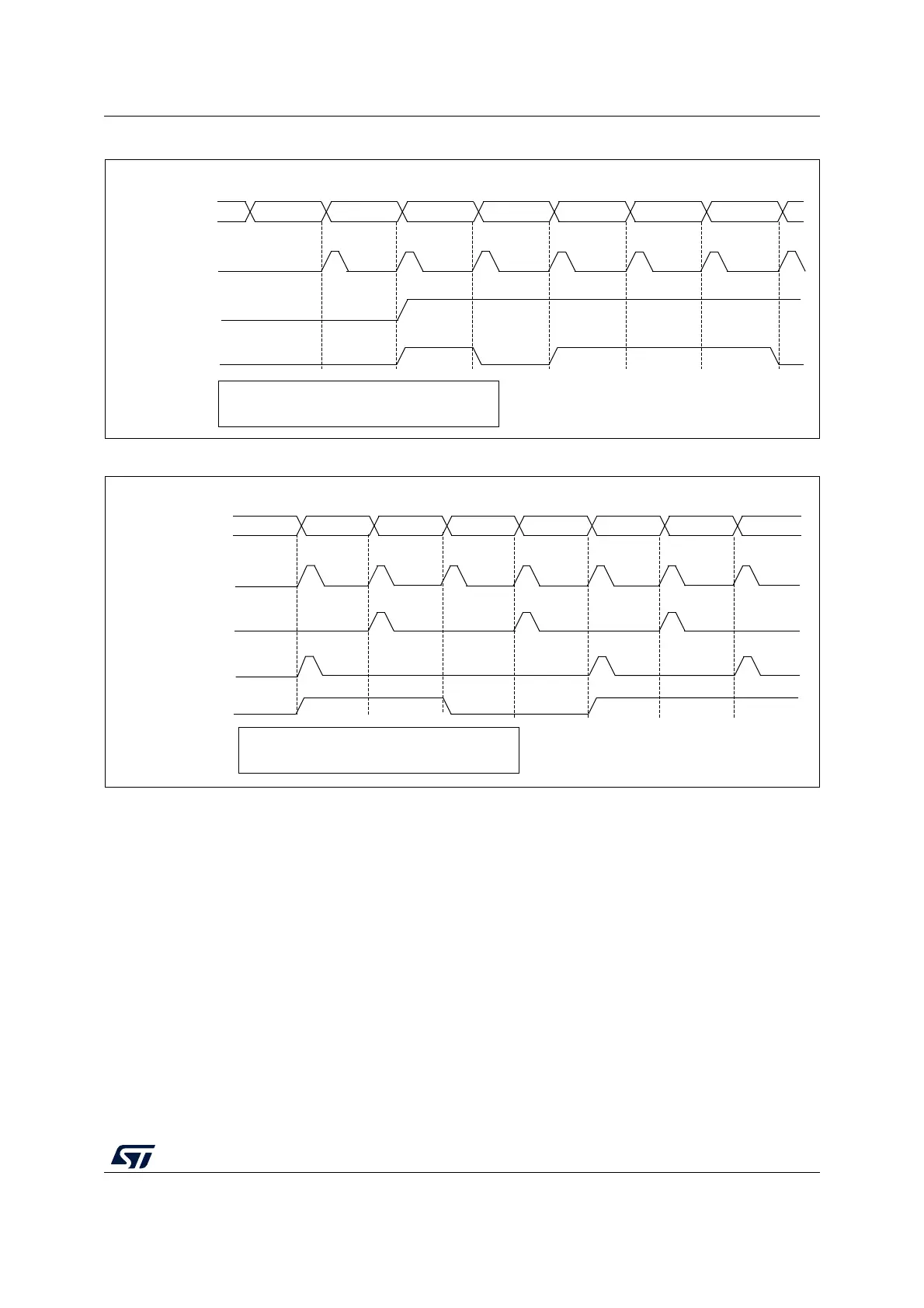

Figure 78. ADC_AWDx_OUT signal generation (AWDx flag not cleared by software)
Figure 79. ADC_AWDx_OUT signal generation (on a single channel)
18.7.4 Analog Watchdog threshold control
LTx[11:0] and HTx[11:0] can be changed during an analog-to-digital conversion (that is
between the start of the conversion and the end of conversion of the ADC internal state). If
HTx and LTx bits are programmed during the ADC guarded channel conversion, the
watchdog function is masked for this conversion. This mask is cleared when starting a new
conversion, and the resulting new AWD threshold is applied starting the next ADC
conversion result. AWD comparison is performed at each end of conversion. If the current
ADC data are out of the new threshold interval, this does not generated any interrupt or an
ADC_AWDx_OUT signal. The Interrupt and the ADC_AWDx_OUT generation only occurs
at the end of the ADC conversion that started after the threshold update. If
ADC_AWDx_OUT is already asserted, programming the new threshold does not deassert
the ADC_AWDx_OUT signal.
MSv45363V1
EOC FLAG
ADC STATE
RDY
AWDx FLAG
Conversion1
outside
ADC_AWDx_OUT
inside
not cleared by SW
Conversion2 Conversion3 Conversion4 Conversion5 Conversion6 Conversion7
outsideinside outside outside inside
- Converted channels: 1,2,3,4,5,6,7
- Guarded converted channels: 1,2,3,4,5,6,7
MSv45364V1
EOC FLAG
ADC STATE
AWDx FLAG
Conversion1
outside
ADCy_AWDx_OUT
Cleared
by SW
Conversion2 Conversion1 Conversion2 Conversion1 Conversion2 Conversion1
inside outside outside
Conversion2
EOS FLAG
Cleared
by SW
- Converted channels: 1 and 2
- Only channel 1 is guarded
