Sun Microsystems Blade 1500 - FIGURE 11-42 Motherboard Location and Identification; Identifying the Motherboard

11-44 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004
■ “Identifying the Motherboard” on page 11-44
■ “Removing the Motherboard” on page 11-46
■ “Installing the Motherboard” on page 11-50
Click this film icon to view an animated version of these instructions.
Caution – This procedure is intended for Sun authorized service providers only.
11.6.1 Identifying the Motherboard
The motherboard and CPU are a single replaceable unit. See FIGURE 11-42.

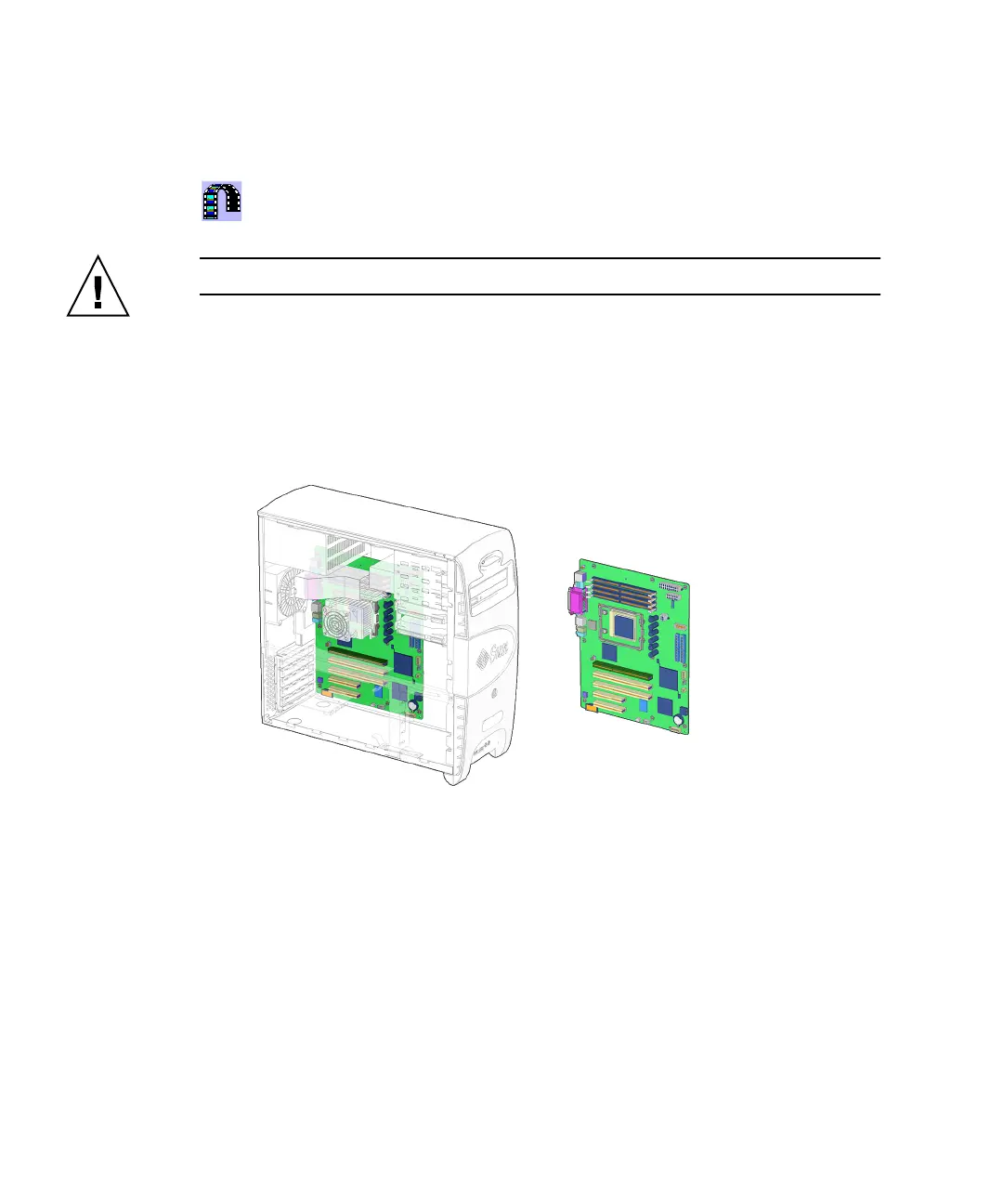

FIGURE 11-42 Motherboard Location and Identification
FIGURE 11-43 shows the connectors and slots on the Sun Blade 1500 motherboard.
