12-22 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

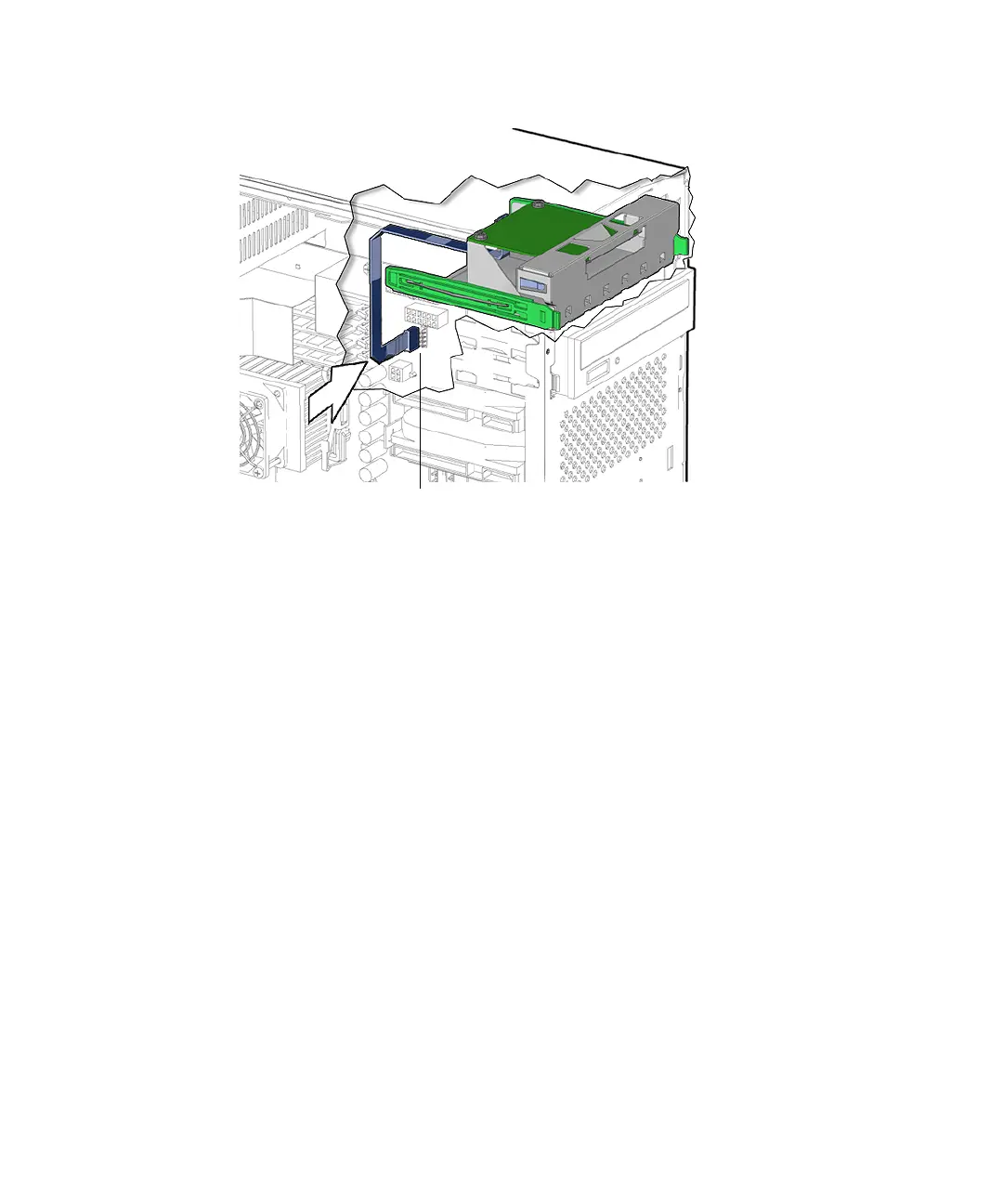

FIGURE 12-20 Connecting the Smart Card Reader Interface Cable
10. Guide the smart card reader interface cable into the reader cable clip at the top of
the chassis and close the clip.
See FIGURE 12-21.
Connector SCR0
