13-14 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

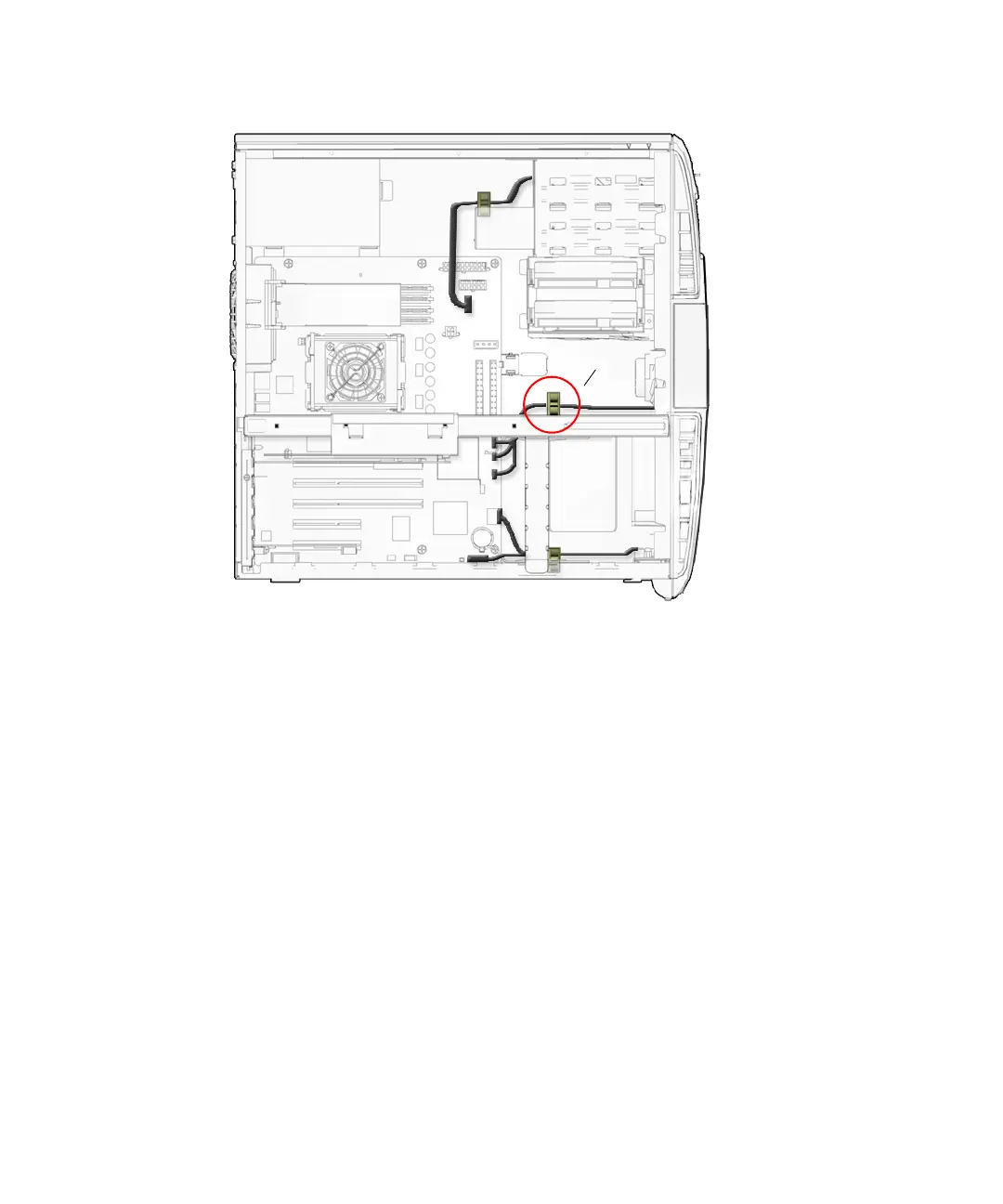

FIGURE 13-13 Securing the Front Fan Cable in the Bezel Cable Clip
8. Inspect the front fan fasteners to verify that:
■ The fan bracket latch is locked into the chassis.
■ The fan bracket tabs are well seated in the chassis.
9. Inspect the front fan cabling to verify that:
■ The front fan cable is firmly connected to the motherboard at FAN0 SYS.
■ The front fan cable is routed through the motherboard cable routing clip.
■ The bezel cable clip is closed and locked.
10. Install the access panel, power on the system, and verify the front fan installation.
Refer to:
■ “Installing the Access Panel” on page 15-5
■ “Powering On the Workstation” on page 15-8
■ “Verifying an Installation” on page 15-11
FAN0 SYS
Bezel cable clip
