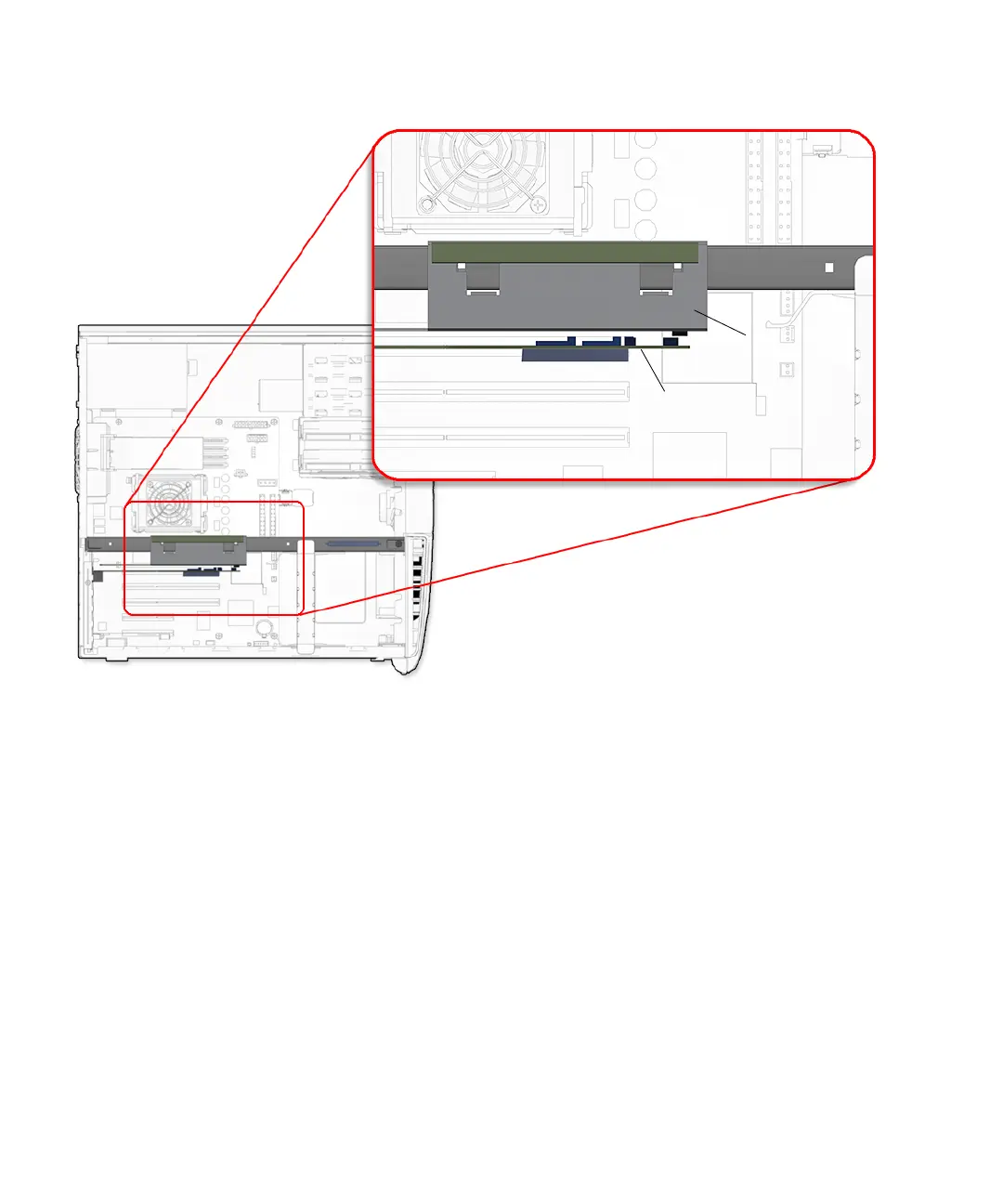

FIGURE 13-60 PCI Shield Fit to PCI Card in Slot PCI4
7. Using a No. 2 Phillips screwdriver, fasten the screw to secure the cross brace to the
chassis.
8. Choose your next step:
■ If you installed the chassis cross brace after installing the motherboard, return to
Step 18 of “Installing the Motherboard” on page 11-50.
■ Otherwise, install the PCI card support, the access panel, and power on the
system.
Refer to:
■ “Installing the PCI Card Support” on page 13-47
■ “Installing the Access Panel” on page 15-5
■ “Powering On the Workstation” on page 15-8
PCI shield
Graphics accelerator
