4. While maintaining a light pressure towards the rear fan bracket, move the duct to
the left.
See FIGURE 13-28.

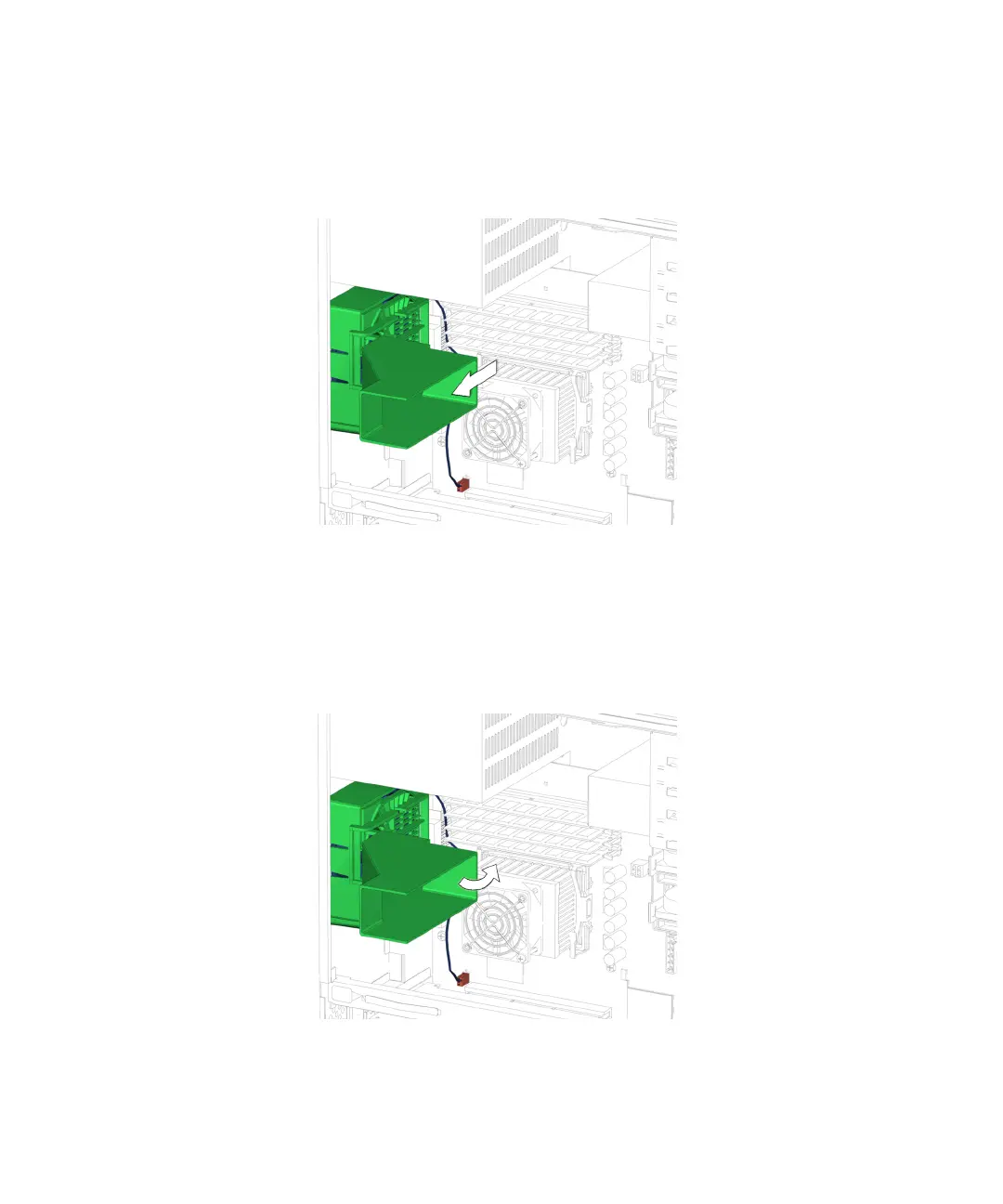

FIGURE 13-28 Moving the Duct to the Left
5. Swing the duct in, so that the guide rails of the duct are flush with the guide rails
of the rear fan bracket.
See FIGURE 13-29.
FIGURE 13-29 Swinging the Duct In
