Sun Microsystems Blade 1500 - Power Switch Connector; Smart Card Reader Connector; TABLE B-23 Power Switch Connector J24 SW0 Pinouts; FIGURE B-13 Power Switch Connector

B-18 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004
B.2.7 Power Switch Connector
The power switch connector, J24 SW0, provides signal and power for the power
LED. It is identified in
FIGURE B-13.

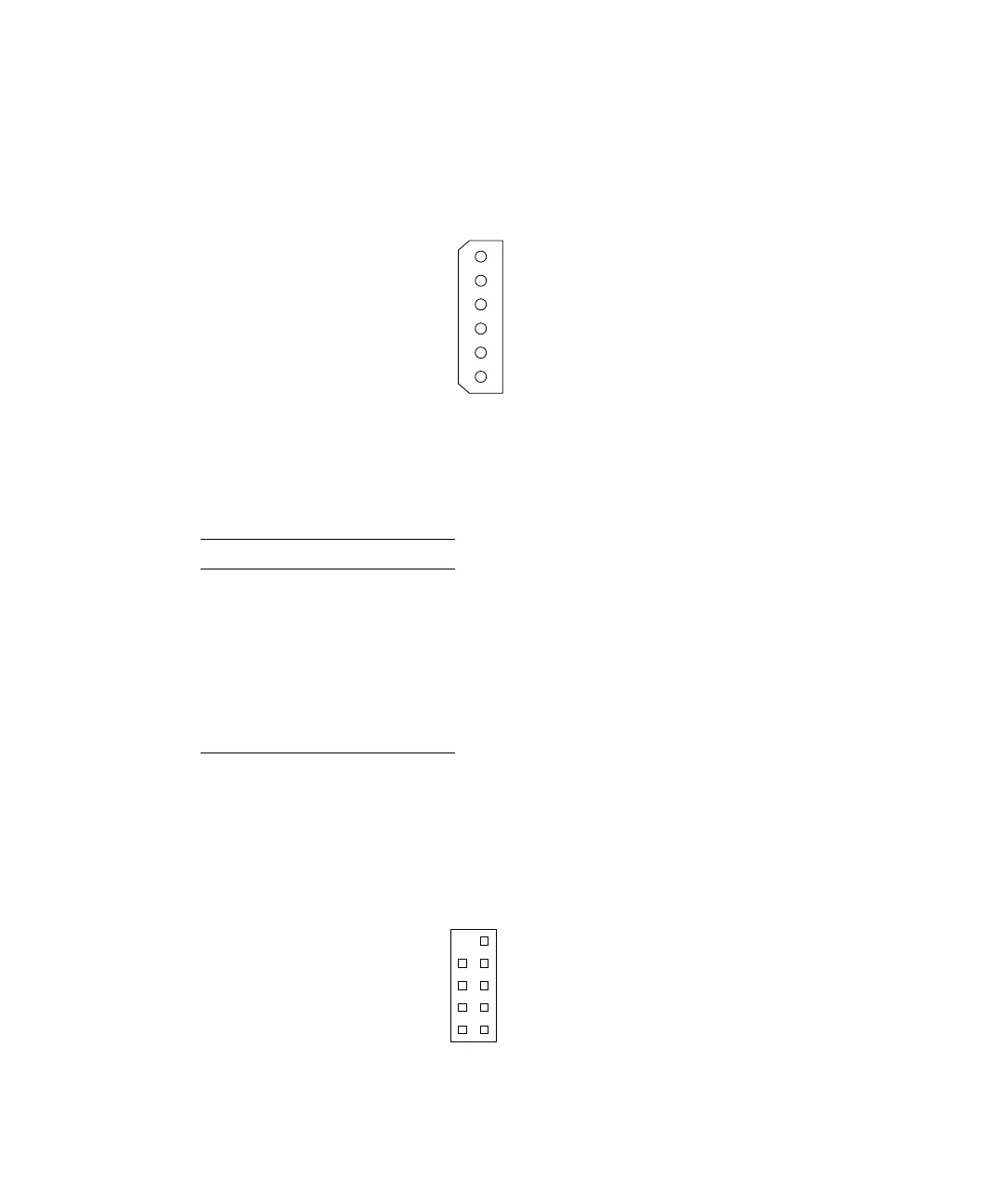

FIGURE B-13 Power Switch Connector
TABLE B-23 lists the pinouts for connector J24 SW0.
B.2.8 Smart Card Reader Connector
The smart card reader connector, SCR0, is identified in FIGURE B-14.
FIGURE B-14 Smart Card Reader Connector
TABLE B-23 Power Switch Connector J24 SW0 Pinouts
Pin Signal
1 none
2 none
3 LED +
4 LED -
5 Switch signal
6 Switch return
6
1
12
8
9
