Sun Microsystems Blade 1500 - Twisted-Pair Ethernet Port; TABLE B-5 Twisted-Pair Ethernet Port Pinouts; FIGURE B-4 Twisted-Pair Ethernet Connector

Appendix B Signal Descriptions B-5
B.1.5 Twisted-Pair Ethernet Port
The rear panel of the Sun Blade 1500 workstation has an RJ-45 10/100/1000BASE-T
TPE port.
FIGURE B-4 identifies the TPE connector.

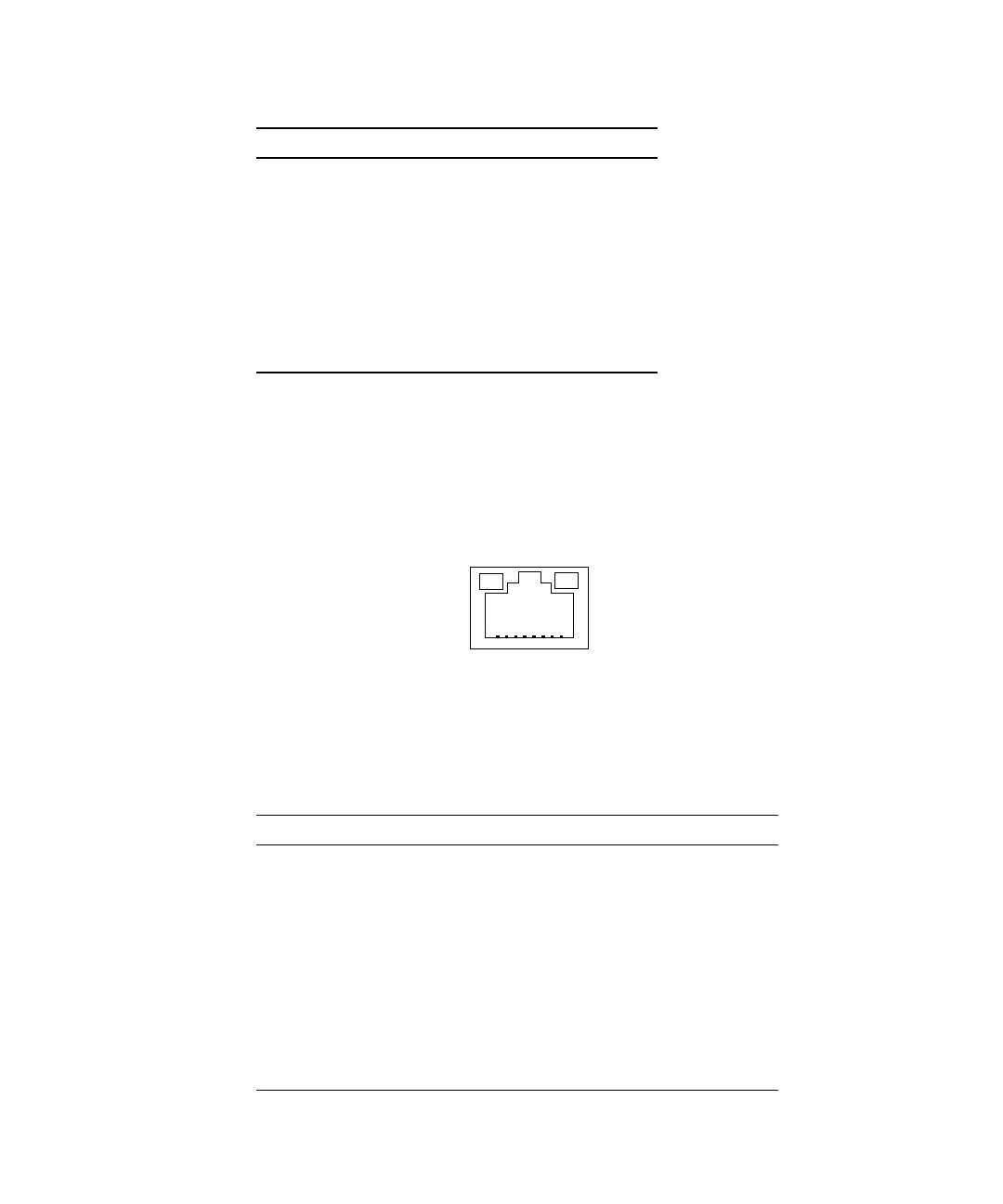

FIGURE B-4 Twisted-Pair Ethernet Connector
TABLE B-5 lists the pinout of this connector.
3 TXD_ Transmit Data
4 DTR_ Data Terminal Ready
5 GND Ground
6 DSR_ Data Set Ready
7 RTS_ Request To Send
8 RXC_ Receive Clock
9 RI Ring Indicator
TABLE B-5 Twisted-Pair Ethernet Port Pinouts
Pin Signal Description
1 RJ_TXD+ Transmit Data+
2 RJ_TXD- Transmit Data-
3 RJ_RXD+ Receive Data+
4 RJ_4T_D3P Filter I/O
5 RJ_4T_D3P Filter I/O
6 RJ_RXD- Receive Data-
7 RJ_4T_D4P Filter I/O
8 RJ_4T_D4P Filter I/O
TABLE B-4 Serial Port Pinouts (Continued)
Pin Signal Description
18
