Chapter 15 Finishing Component Replacement 15-3

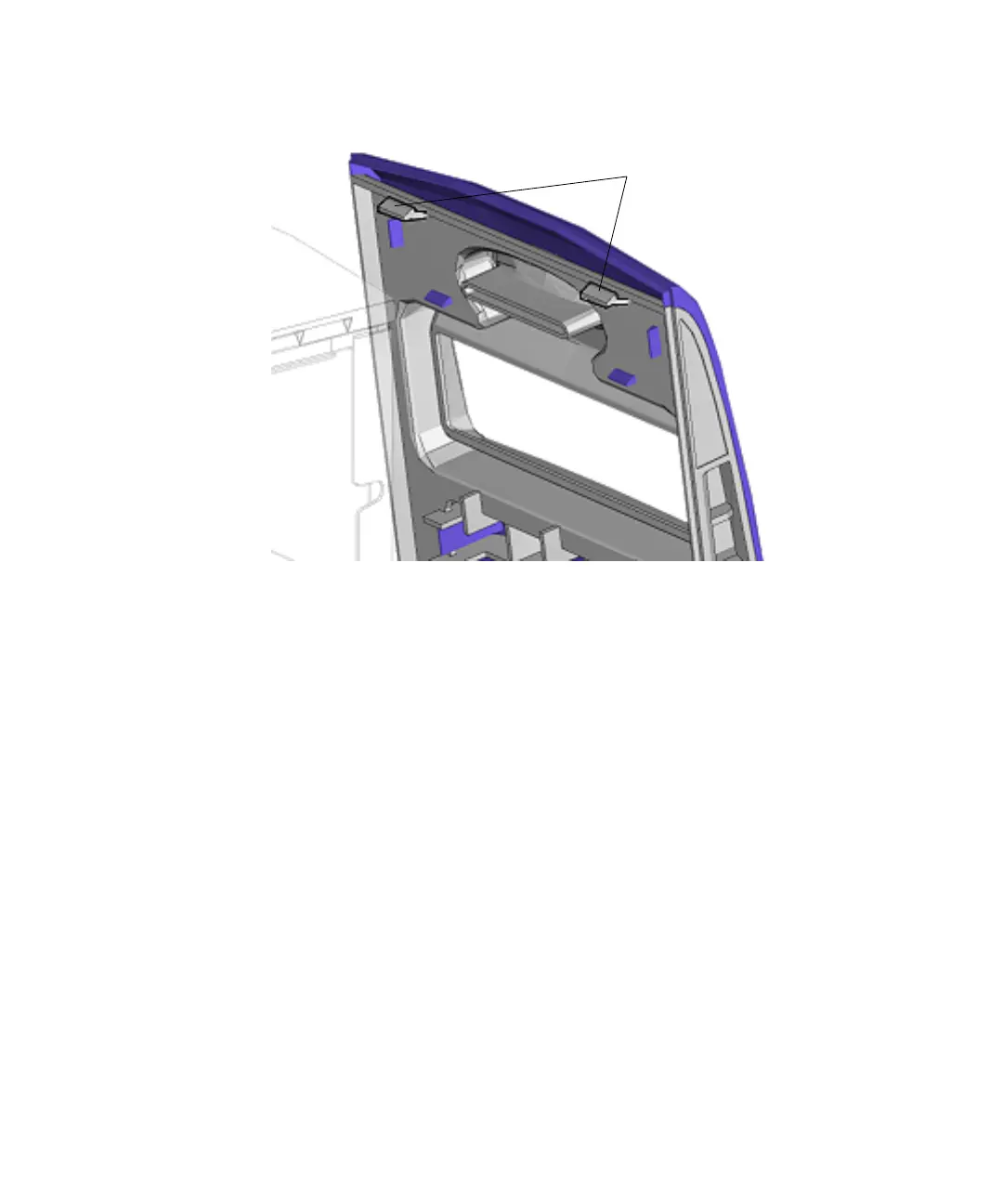

FIGURE 15-2 Locating Bezel Short Tabs
4. Align the bezel mounting tabs with the slots in the front panel.
The bottom edge of the bezel is about two inches (5cm) out from the bottom edge of
the chassis. See
FIGURE 15-3.
Bezel short tabs
