14.1.1 Identifying the Smart Card Reader Cable
The smart card cable connects the smart card reader to the motherboard at SCR0. It
is a 10-conductor ribbon cable.

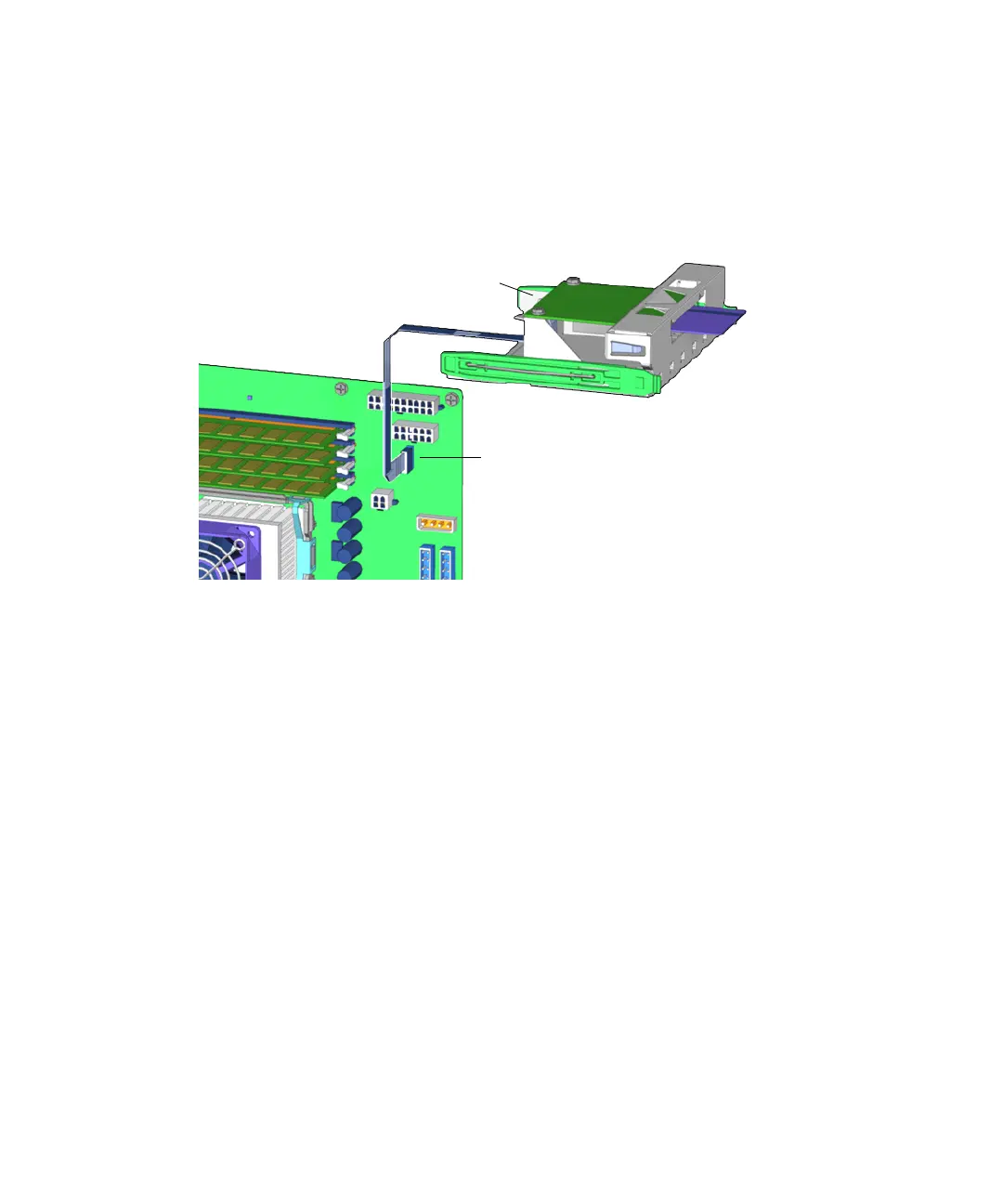

FIGURE 14-2 shows the smart card reader cable
connections.
FIGURE 14-2 Smart Card Reader Cable Connection
14.1.2 Removing the Smart Card Reader Cable
1. Power off the system, open the chassis, and remove the bezel.
Refer to:
■ “Powering Off the Workstation” on page 10-4
■ “Removing the Access Panel” on page 10-12
■ “Removing the Bezel” on page 10-14
2. Remove the smart card reader bracket.
Refer to “Removing the Smart Card Reader” on page 12-16. Do not remove the smart
card reader from the bracket.
3. Pull the interface cable from the connector on the smart card reader.
See FIGURE 14-3. Set the cable aside.
Connector SCR0
Smart card reader
