B.2.2 Front Audio Connector
The front audio connector, J13 AUDIO, provides audio signals for the audio USB
board.

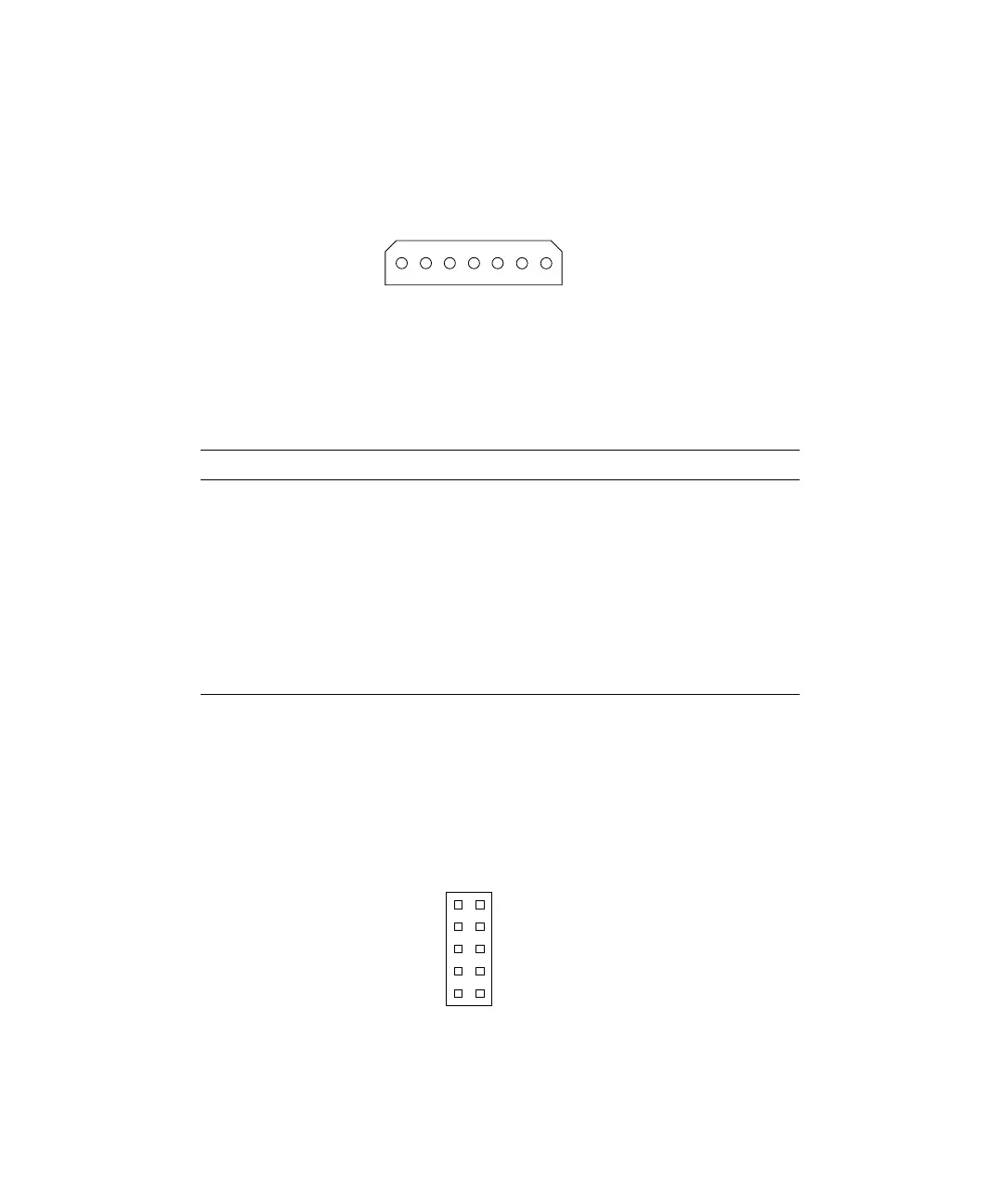

FIGURE B-8 identifies the front audio connector.
FIGURE B-8 Front Audio Connector
TABLE B-16 lists the pinouts for connector J13 AUDIO.
B.2.3 Front USB Connector
The front USB connector, J19 USB, provides a USB interface for the audio USB
board.
FIGURE B-9 identifies the front USB connector.
FIGURE B-9 Front USB Connector
TABLE B-16 Front Audio Connector J13 AUDIO Pinouts
Pin Signal
1 Microphone signal
2 Microphone ground
3 Ground
4 Headphone left channel
5 Headphone ground
6 Headphone right channel
7 +5 V
