Sun Microsystems Blade 1500 - FIGURE 13-56 PCI Shield on Chassis Cross Brace

13-54 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

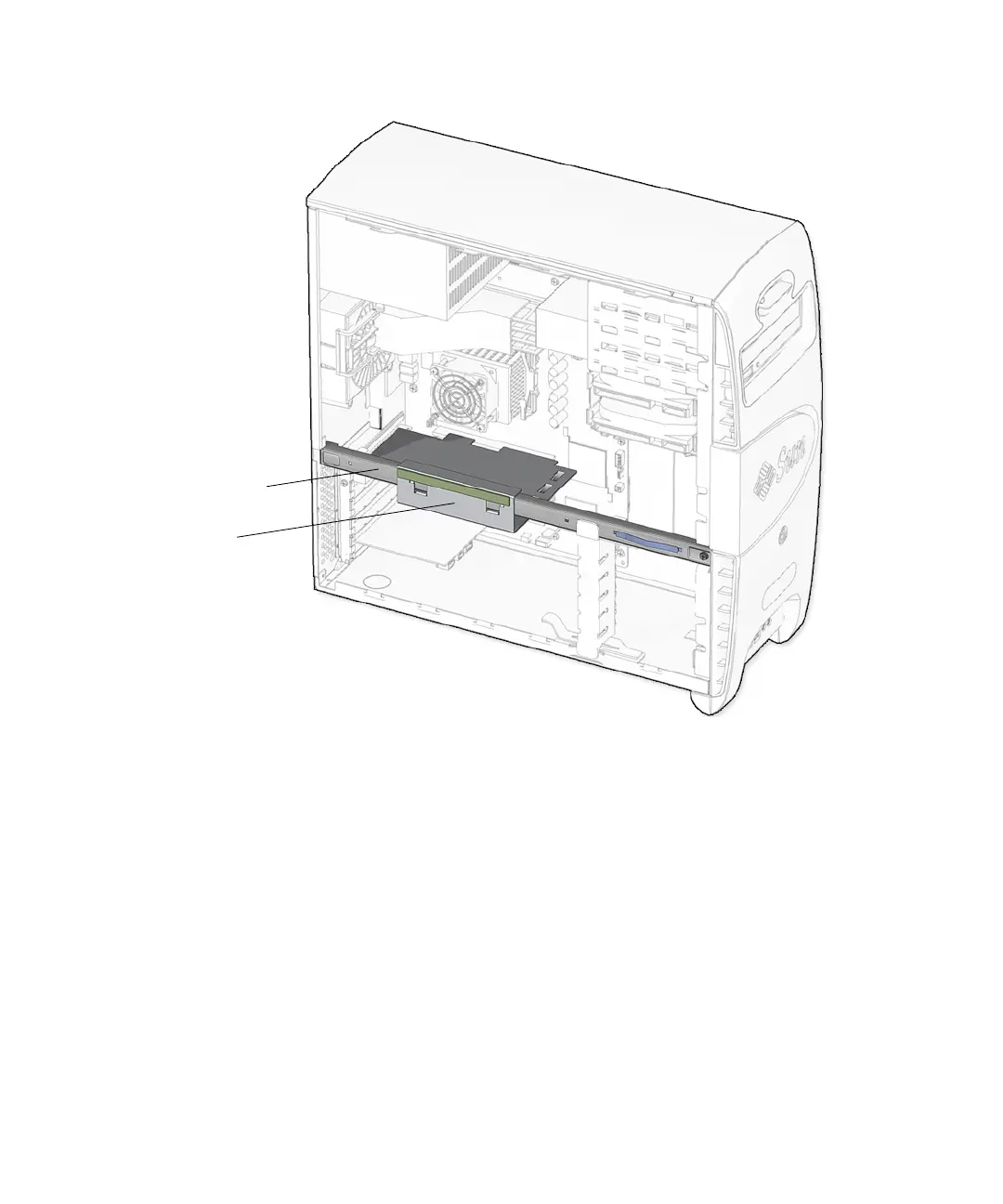

FIGURE 13-56 PCI Shield on Chassis Cross Brace
3. Insert the tab at the rear end of the cross brace into the slot on the rear panel of
the chassis.
See FIGURE 13-57.
PCI shield
Chassis cross
brace
