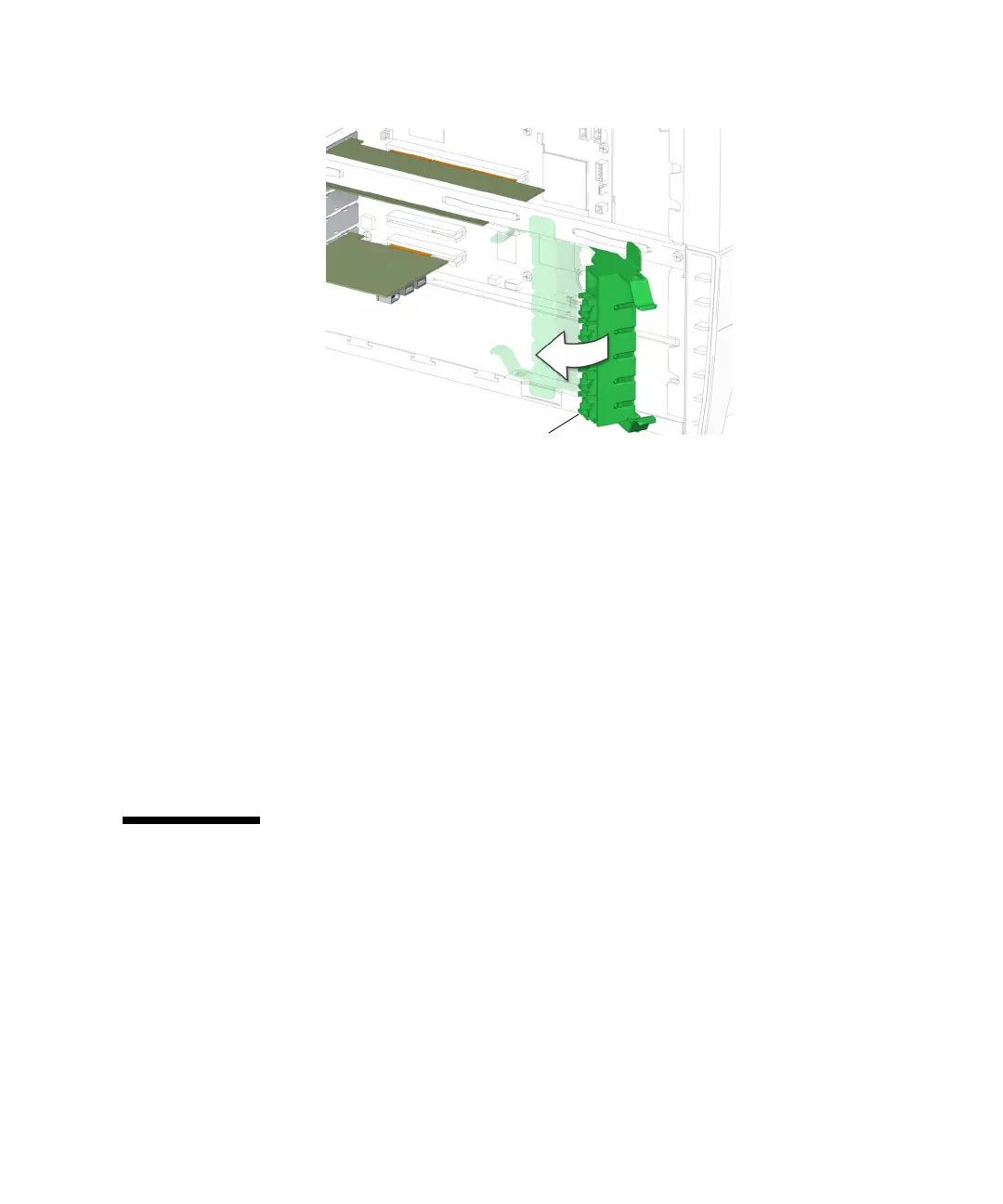

FIGURE 13-51 Closing the PCI Card Support
6. Inspect the PCI card support fasteners to verify that:
■ The PCI card support is snug between the chassis cross brace and the chassis.
■ The chassis cross brace is fastened tight to the chassis.
■ The PCI card support fingers are snug against each respective PCI card.
7. Choose your next step:
■ If you installed the PCI card support after installing the motherboard, return to
Step 19 of “Installing the Motherboard” on page 11-50.
■ Otherwise, install the access panel and power on the system. Refer to:
■ “Installing the Access Panel” on page 15-5
■ “Powering On the Workstation” on page 15-8
13.8 Replacing the Chassis Cross Brace
This section describes removal and installation of the chassis cross brace. Topics
include:
■ “Identifying the Chassis Cross Brace” on page 13-50
■ “Removing the Chassis Cross Brace” on page 13-51
■ “Installing the Chassis Cross Brace” on page 13-53
