Sun Microsystems Blade 1500 - FIGURE 13-52 Chassis Cross Brace Location and Identification; Identifying the Chassis Cross Brace

13-50 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004
13.8.1 Identifying the Chassis Cross Brace
The chassis cross brace provides structural support to the chassis and holds the PCI
card support in place. Attached to the chassis cross brace is the PCI shield.
FIGURE 13-52 shows the location of and identifies the chassis cross brace.
Note – Do not use the chassis cross brace as a handle.

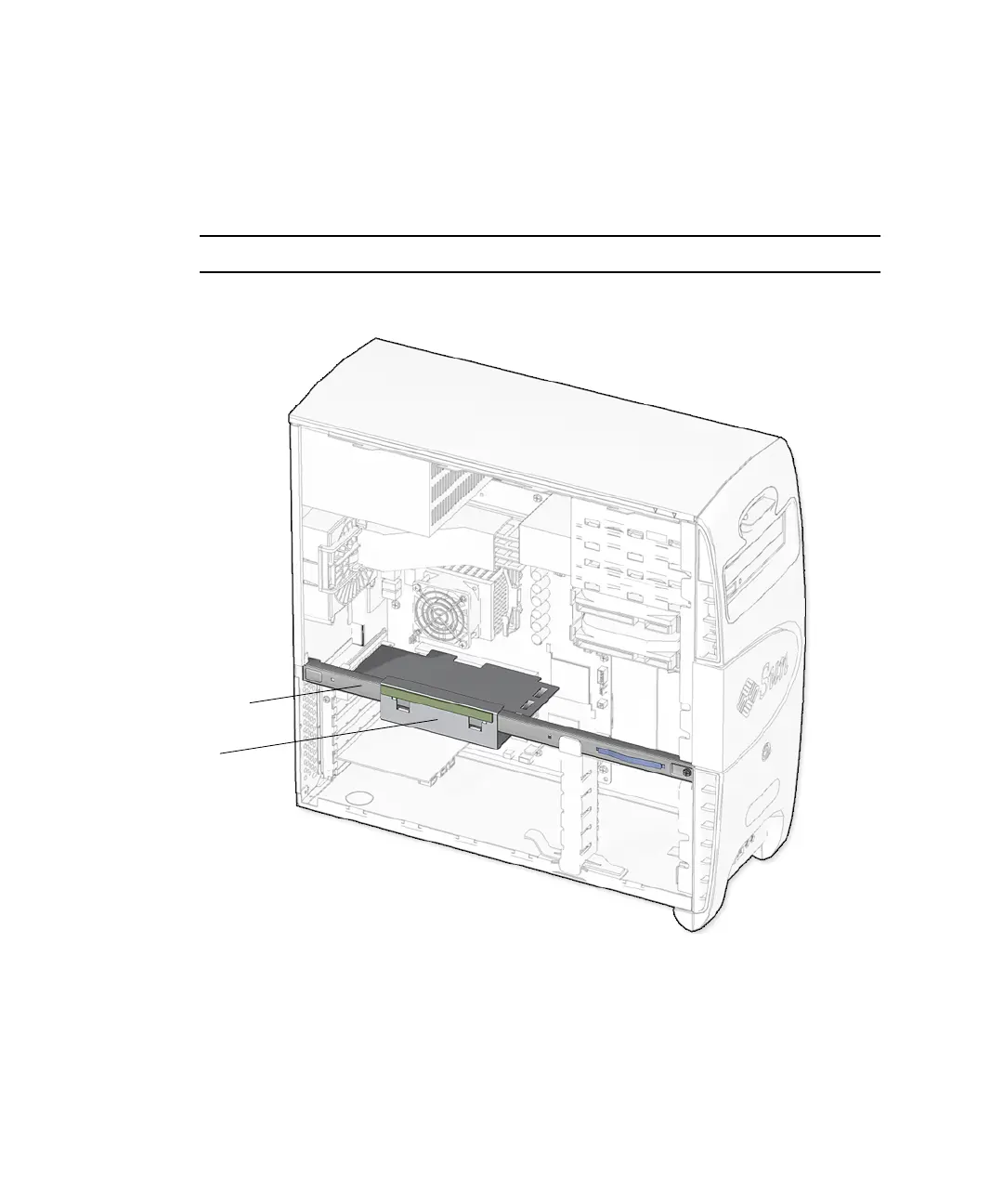

FIGURE 13-52 Chassis Cross Brace Location and Identification
PCI shield
Chassis cross
brace
