2. Locate the front fan.
The front fan is housed in a green plastic rear fan bracket that connects to the
workstation chassis. See
FIGURE 13-8.
3. Open the bezel cable clip at the center of the chassis and remove the front fan
cable from the clip.
See FIGURE 13-13.

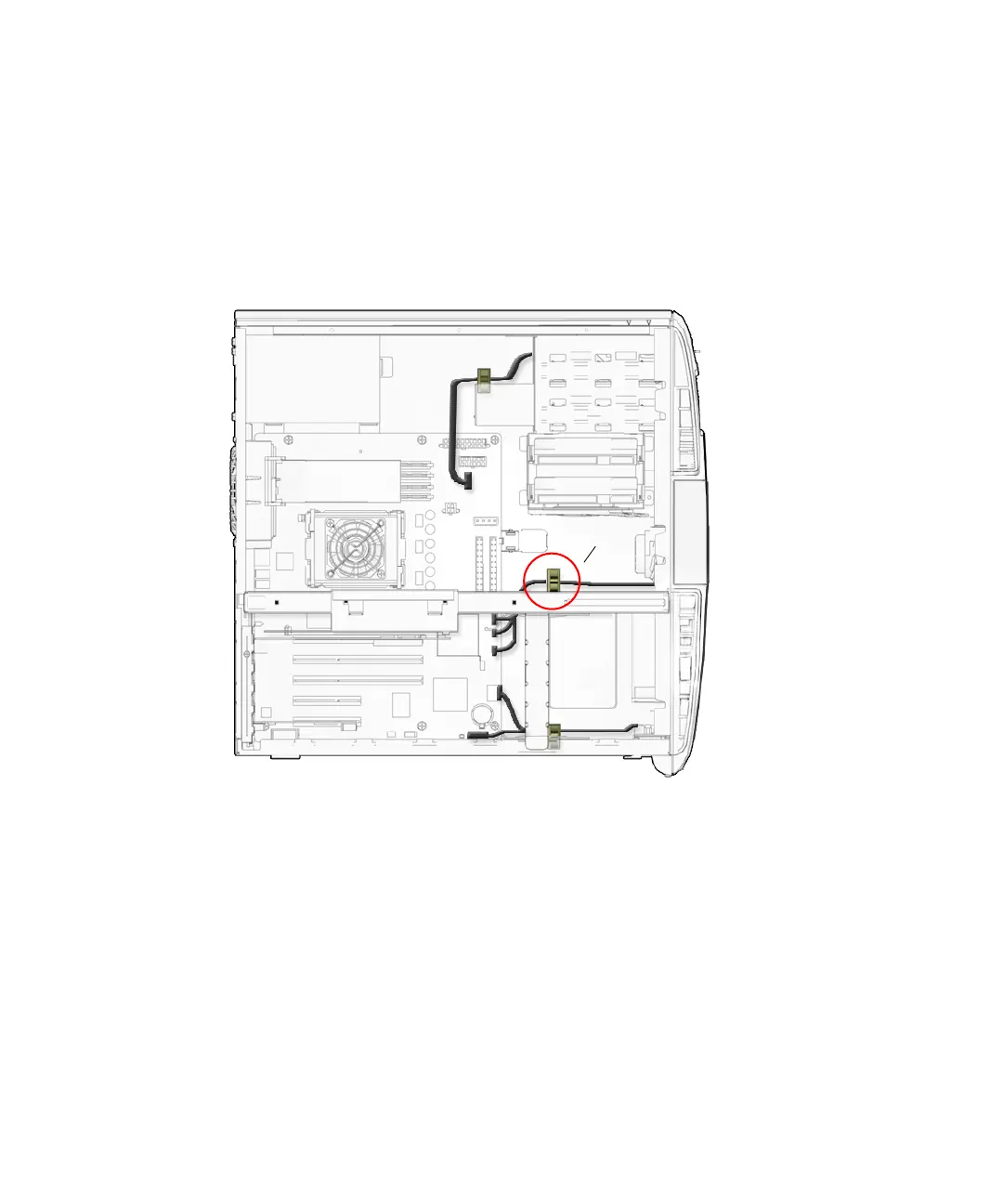

FIGURE 13-9 Removing the Front Fan Cable From the Bezel Cable Clip
4. Disconnect the front fan cable from the motherboard front fan connector FAN0
SYS.
See FIGURE 13-10.
FAN0 SYS
Bezel cable clip
