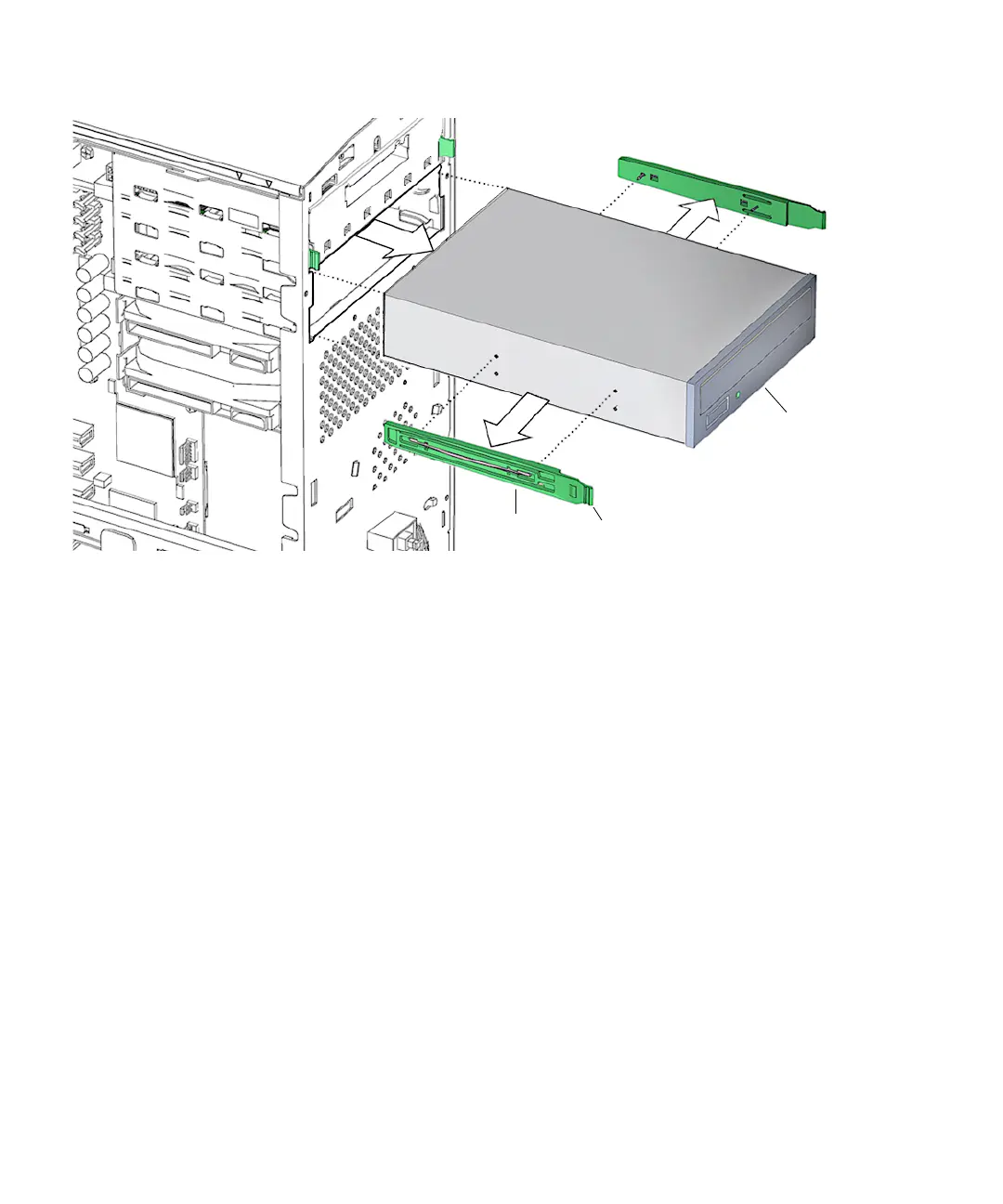

FIGURE 12-10 Removing the Optical Drive
6. Set the optical drive down on an antistatic mat.
7. Pull the green plastic drive rails off the sides of the optical drive.
See FIGURE 12-10. Set them aside.
8. Choose your next step:
■ If you removed the optical drive to replace it, install the new optical drive.
Proceed to
“Installing the Optical Drive” on page 12-12.
■ Otherwise, install the bezel, the access panel, and power on the system. Refer to:
■ “Installing the Bezel” on page 15-2
■ “Installing the Access Panel” on page 15-5
■ “Powering On the Workstation” on page 15-8
12.2.3 Installing the Optical Drive
1. Power off the system, open the chassis, and remove the bezel.
Refer to:
■ “Powering Off the Workstation” on page 10-4
■ “Removing the Access Panel” on page 10-12
Optical
drive
Drive rails (2)
Ta b
