Sun Microsystems Blade 1500 - Removing the Audio USB Board Cables; FIGURE 14-21 Audio USB Board Cable Connections

14-24 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

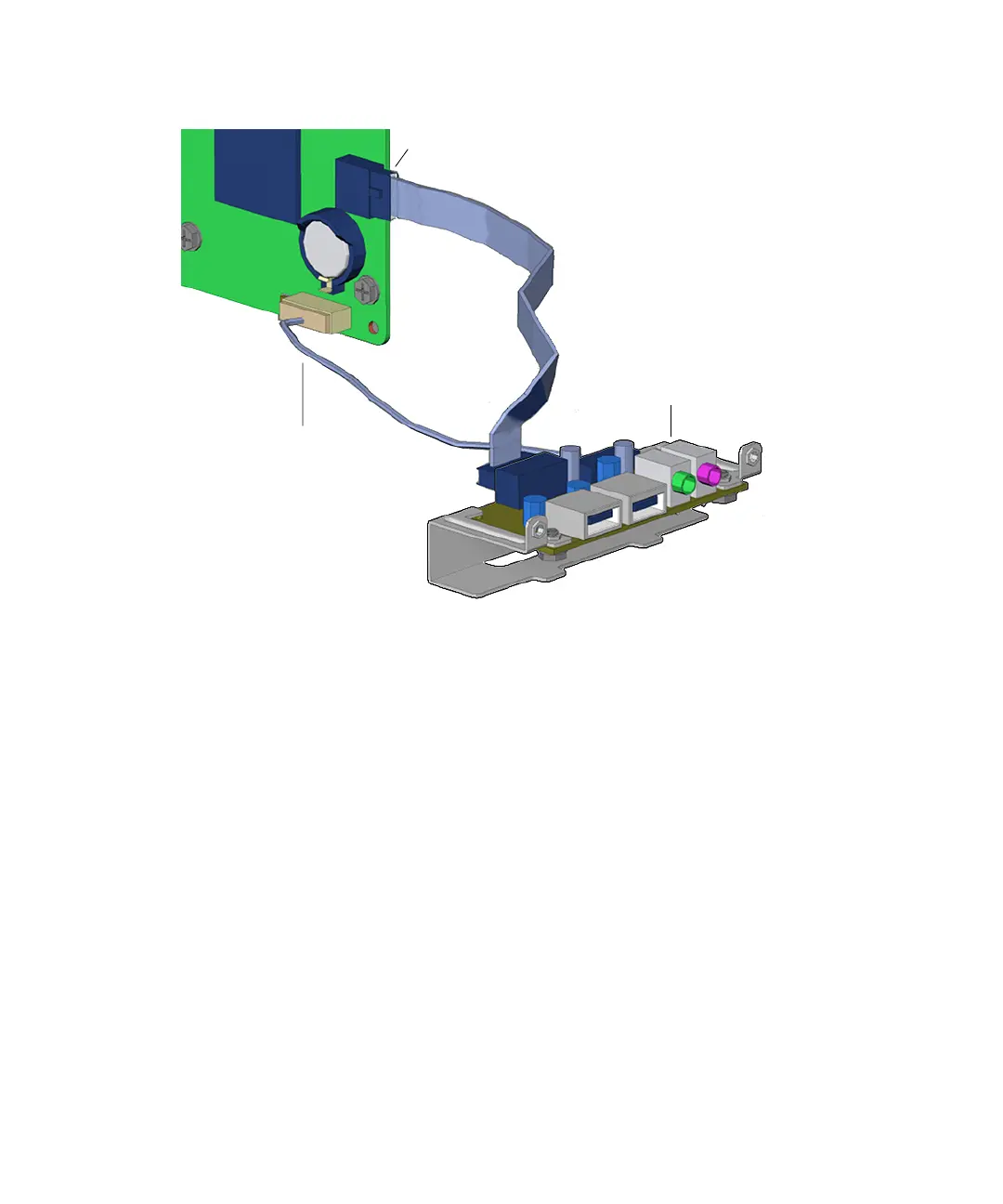

FIGURE 14-21 Audio USB Board Cable Connections
14.6.2 Removing the Audio USB Board Cables
1. Power off the system and open the chassis.
Refer to:
■ “Powering Off the Workstation” on page 10-4
■ “Removing the Access Panel” on page 10-12
2. Locate the audio USB board cables.
The audio USB board is located in the lower front portion of the chassis. The audio
USB board cables are located on the rear of the audio USB board. See
FIGURE 14-21.
3. Disconnect the audio USB board cables from the motherboard at J13 AUDIO and
J19 USB.
4. See FIGURE 14-22.
Connector J19 USB
Connector J13 AUDIO
Audio USB board
