B.1.7 Video Ports
The Sun Blade 1500 workstation is configured with a Sun XVR-600, Sun XVR-100, or
Sun XVR-1200 graphics accelerator.
TABLE B-8 describes the connectors on the
graphics accelerators.
Note – Although the DVI-I connector supports both analog and digital resolutions,
you cannot use both simultaneously.
The graphics accelerators provide DDC2 monitor support and Display Power
Management Signaling (DPMS).
FIGURE B-6 identifies the Sun XVR-600, Sun XVR-100, and Sun XVR-1200 graphics
accelerators’ video output ports.

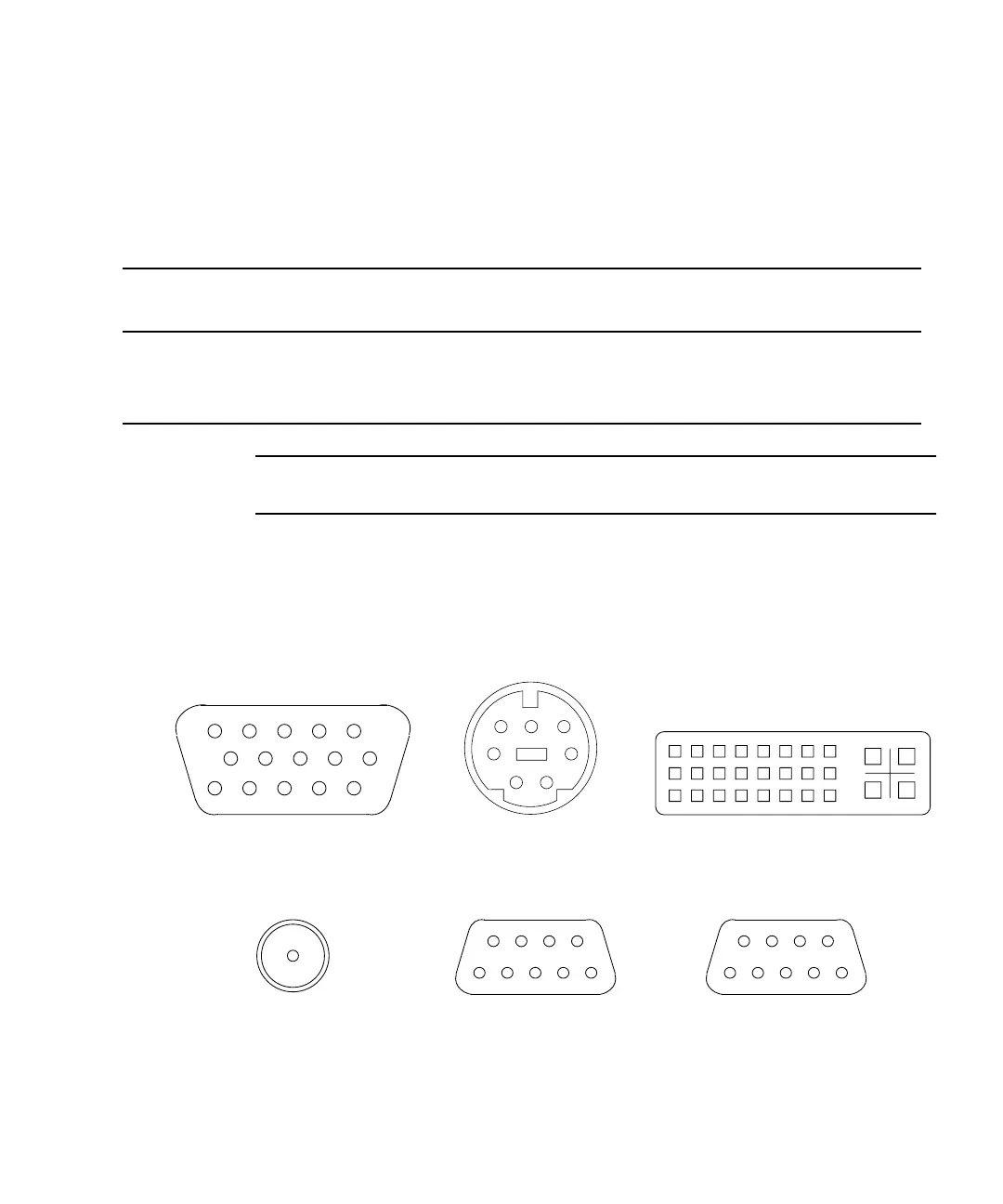

FIGURE B-6 Sun XVR-600, Sun XVR-100, and Sun XVR-1200 Graphics Accelerator Ports
TABLE B-8 Graphics Accelerator Connectors
Graphics Accelerator HD-15 Analog DVI-I Analog/Digital
Mini-DIN7
Stereoscopic
BNC
NTSC/PAL
Video
DB-9 Stereoscopic
Sun XVR-600 No Yes Yes No No
Sun XVR-100 Yes Yes No No No
Sun XVR-1200 Yes Yes Yes Yes Yes
1
1
18
9
17 24
16
C5
C1 C2
C3 C4
5
610
11
15
2
34
57
6
HD-15 7-Pin Mini-DIN DVI-I
Analog video Stereoscopic imager Analog / Digital video
51
96
51
96
DB-9 Out DB-9 In
Stereoscopic imagerStereoscopic imager
BNC NTSC/PAL video
