14-12 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004
14.3.3 Installing the Hard Drive Interface Cable
1. Open the chassis.
Refer to:
■ “Powering Off the Workstation” on page 10-4
■ “Removing the Access Panel” on page 10-12
2. Locate where the hard drive interface cable is to be installed.
See FIGURE 14-8.
3. Connect the end of the interface cable labeled HDD0 into the upper hard drive
interface connector.
See FIGURE 14-10.

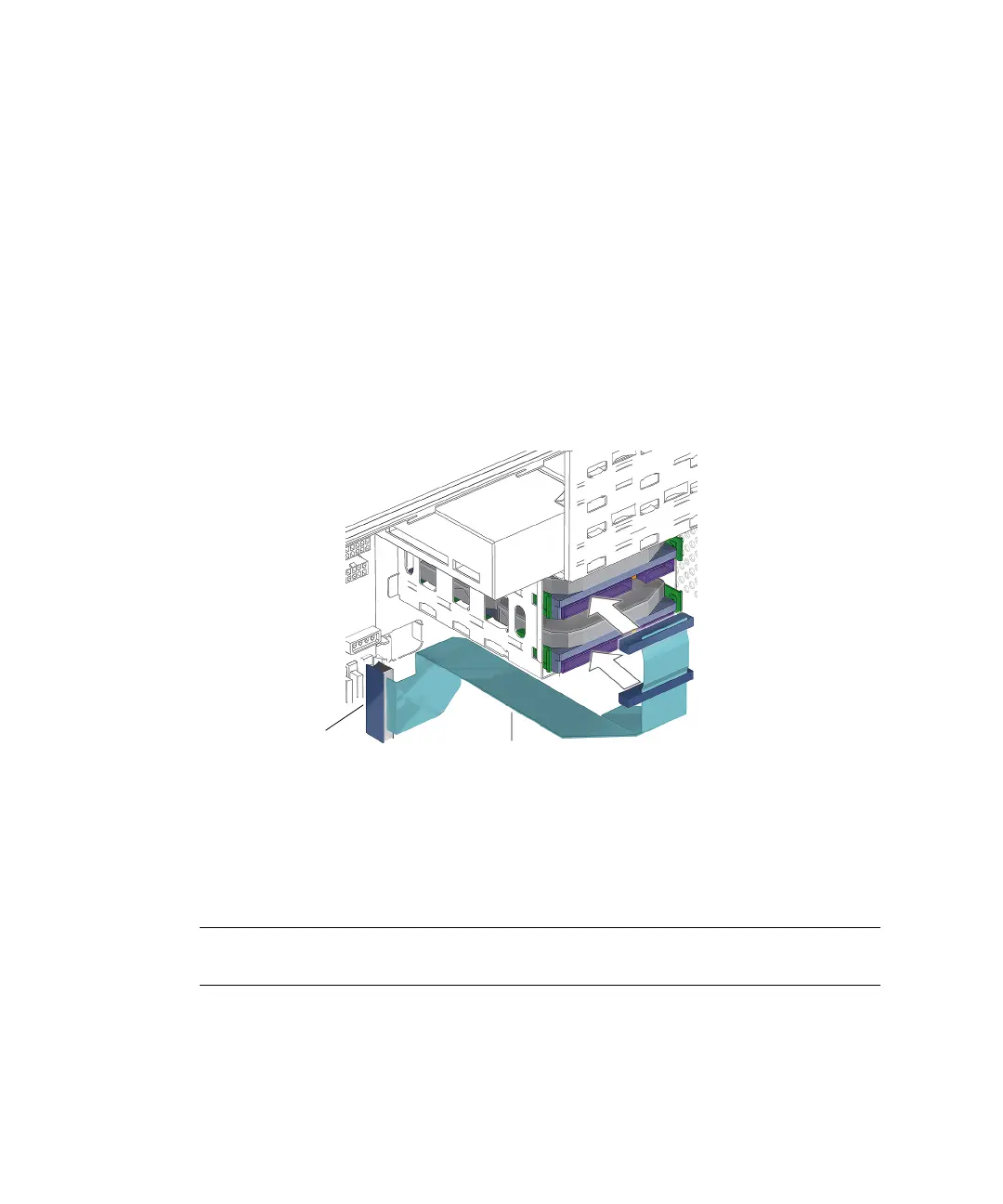

FIGURE 14-10 Connecting the Interface Cable to the Hard Drive(s)
4. If you have two hard drives, connect the lower drive using the interface cables’s
inline connector HDD1.
5. Route the interface cable through the chassis.
Note – The interface cable is a flat cable and can be bent to fit. Use caution not to
fold the cable too much as it can be damaged.
6. Connect the interface cable into the motherboard at IDE PRI.
See FIGURE 14-1 and FIGURE 14-10.
7. Inspect the cabling to verify that:
Connector
IDE PRI
Hard drive interface cable
