Sun Microsystems Blade 1500 - TABLE B-20 Power Supply Connector PS0 Pinouts; TABLE B-21 Power Supply Connector PS1 Pinouts; FIGURE B-12 Power Supply Connectors

B-16 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

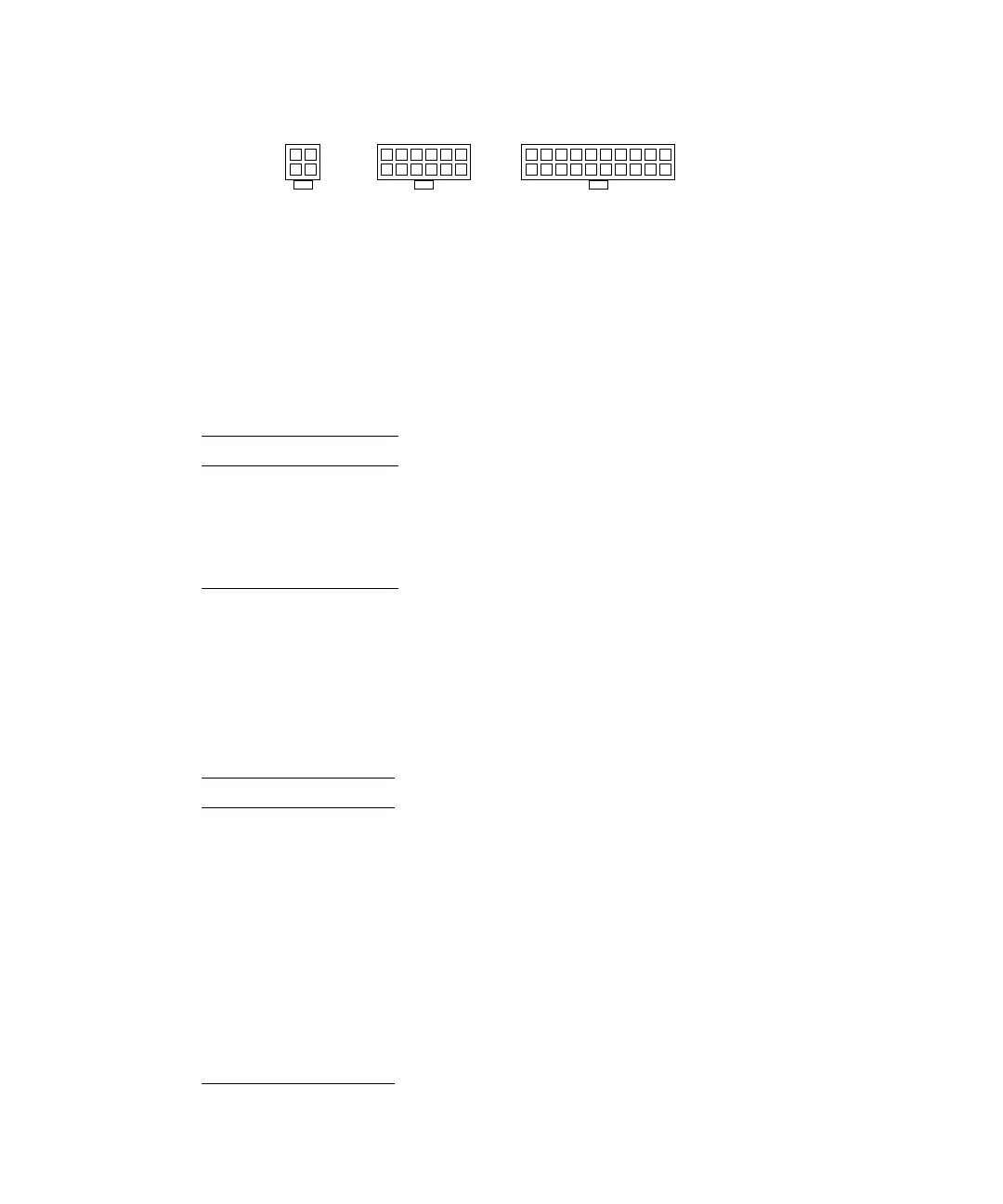

FIGURE B-12 Power Supply Connectors
B.2.6.1 PS0 Information
Connector PS0 supplies power for the CPU. TABLE B-20 lists the pinout for PS0.
B.2.6.2 PS1 Information
Connector PS1 provides supplemental power for the Sun Blade 1500 motherboard.
TABLE B-21 lists the pinout for PS1.
TABLE B-20 Power Supply Connector PS0 Pinouts
Pin Signal
1 Ground
2 Ground
3 +12 V
4 +12 V
TABLE B-21 Power Supply Connector PS1 Pinouts
Pin Signal
1 +5 V
2 +5 V
3 Ground
4 +3.3 V
5 Ground
6 Ground
7 +5 V
8 Ground
9 Ground
34
16
712
110
11 20
21
PS0 PS1 PS2
